54105UB Overview

Ring Terminal, ROHS COMPLIANT

54105UB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

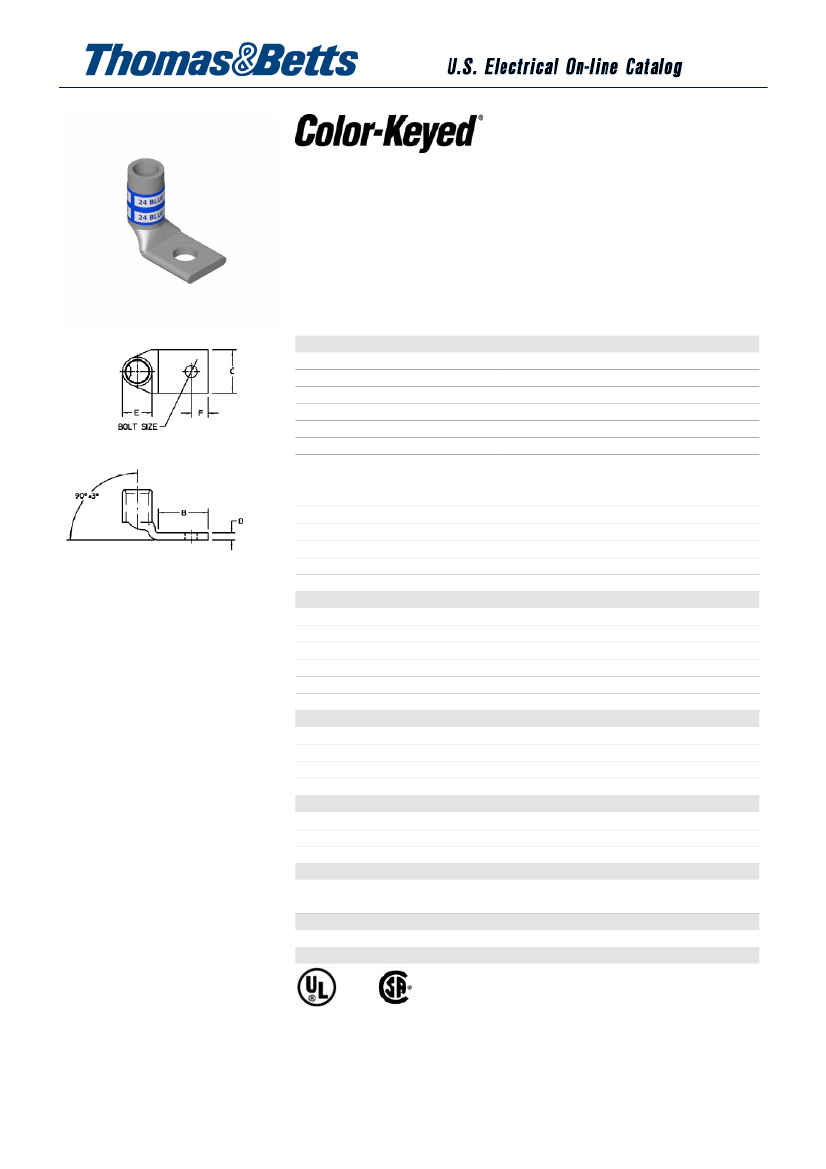

T&B Catalog Number:

UPC Number:

Description:

54105UB

78621086838

Copper One-Hole Lug - 90 degree Stan-

dard Barrel - max 35KV, #6 AWG Wire,

1/4" Bolt Size, Tin Plated with Inspection

Hole, Blue 24

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

#6 AWG

1

1/4

90

Standard

Y

Standard

Round

Blue

24

0.813

0.563

0.438

0.094

0.281

0.25

50

500

Each

1.28 lbs. per 100

ta00675-tb2

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Dimension Information

A (inches)

B (inches)

C (inches)

D (inches)

E (inches)

F (inches)

Packaging

T&B Inner Pack

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

T&B Instruction Sheets

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809
