5962-9099602MXX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-9099602MXX

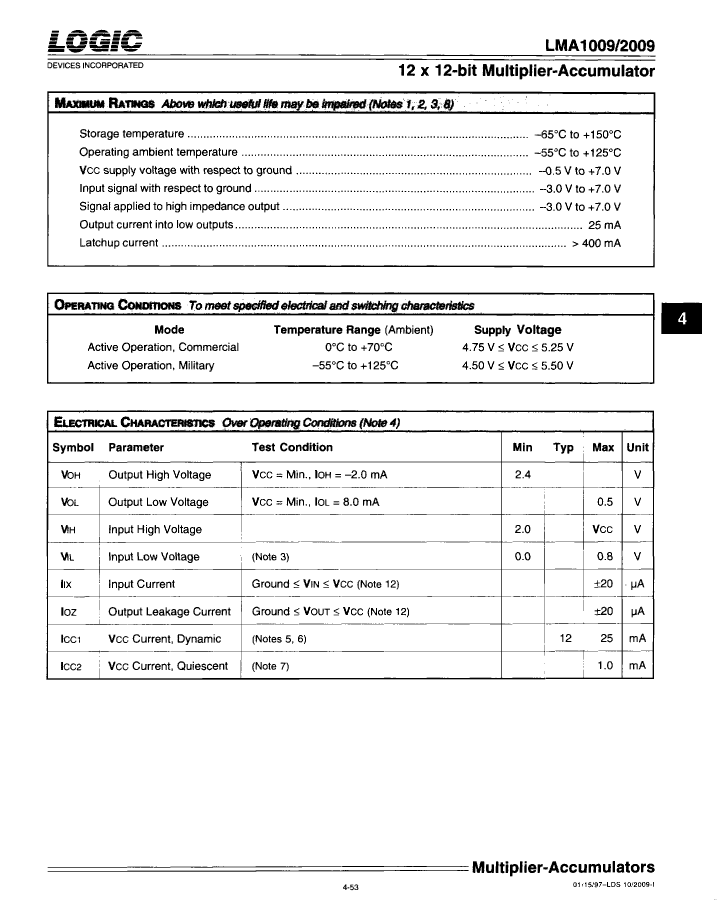

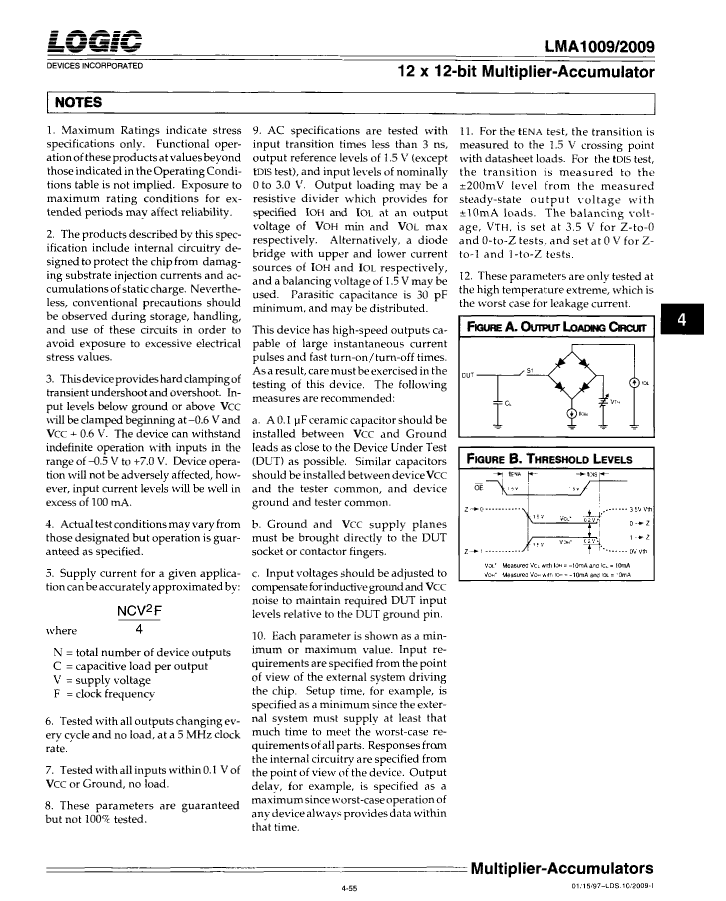

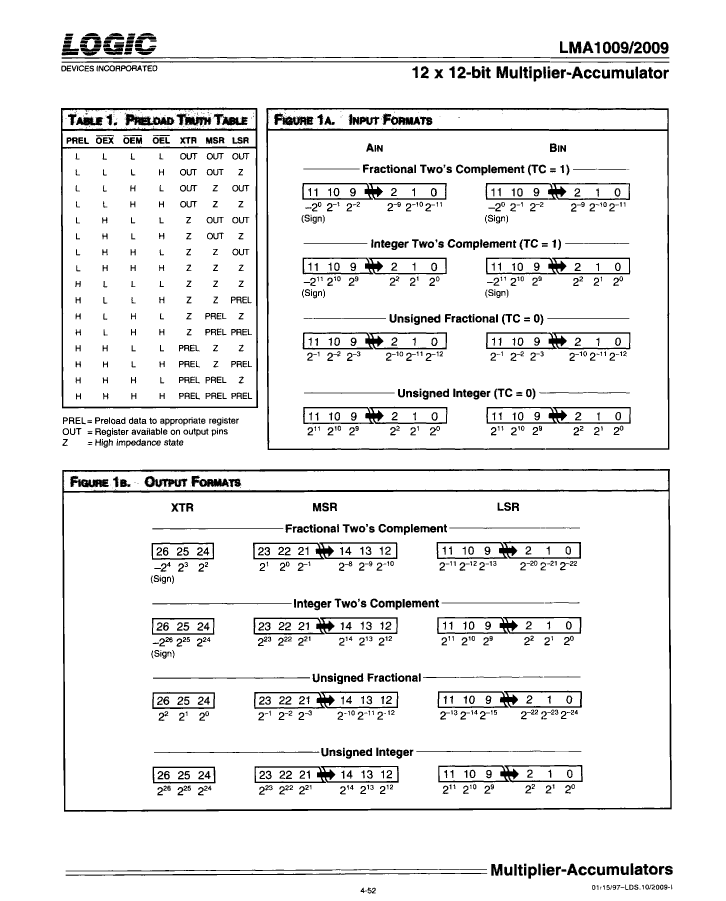

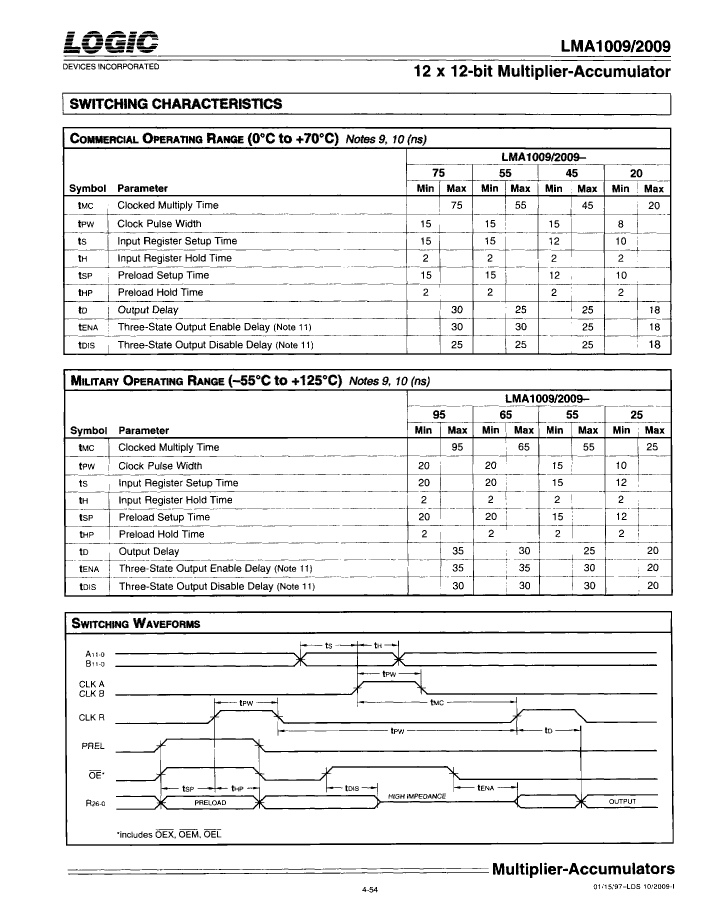

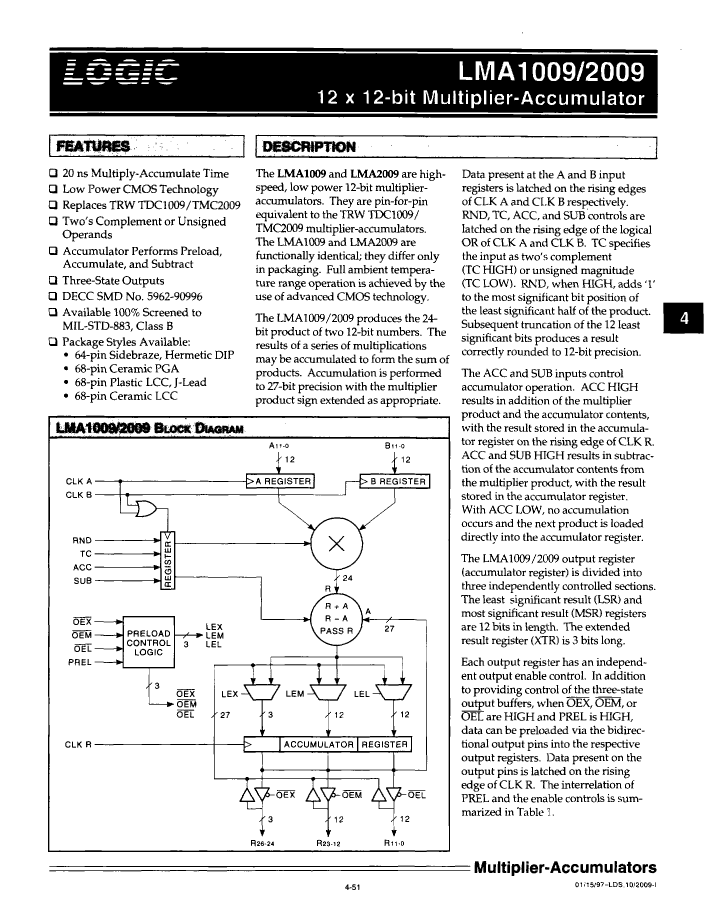

Preview

5962-9099602MXX: DescriptionMultiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size270KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-9099602MXX Overview

Multiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64

5962-9099602MXX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	64
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Other features	2 X 12 BIT DATA INPUT BUS
boundary scan	NO
External data bus width	12
JESD-30 code	R-XDIP-T64
low power mode	NO
Number of terminals	64
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	27
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9099602MXX Related Products

	5962-9099602MXX	5962-9099603MXX	5962-9099604MXX	5962-9099604MYX	5962-9099603MYX	5962-9099602MYX	5962-9099604MUX	5962-9099603MUX	5962-9099602MUX
Description	Multiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, 0.962 X 0.962 INCH, 0.120 INCH HEIGHT, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 0.962 X 0.962 INCH, 0.120 INCH HEIGHT, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 0.962 X 0.962 INCH, 0.120 INCH HEIGHT, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 1.180 X 1.180 INCH, 0.345 INCH HEIGHT, PGA-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 1.180 X 1.180 INCH, 0.345 INCH HEIGHT, PGA-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 1.180 X 1.180 INCH, 0.345 INCH HEIGHT, PGA-68
Parts packaging code	DIP	DIP	DIP	LCC	LCC	LCC	PGA	PGA	PGA
package instruction	DIP,	DIP,	DIP,	QCCN,	QCCN,	QCCN,	PGA,	PGA,	PGA,
Contacts	64	64	64	68	68	68	68	68	68
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS	2 X 12 BIT DATA INPUT BUS
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	12	12	12	12	12	12	12	12	12
JESD-30 code	R-XDIP-T64	R-XDIP-T64	R-XDIP-T64	S-XQCC-N68	S-XQCC-N68	S-XQCC-N68	S-XPGA-P68	S-XPGA-P68	S-XPGA-P68
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of terminals	64	64	64	68	68	68	68	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	27	27	27	27	27	27	27	27	27
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	QCCN	QCCN	QCCN	PGA	PGA	PGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Base Number Matches	1	1	1	1	1	1	1	1	1
