221YL20A18H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 221YL20A18H

221YL20A18H: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerNICOMATIC; Environmental Compliance

Download Datasheet Parametric View All

221YL20A18H Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking,

221YL20A18H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145156161736
Reach Compliance Code	compliant
YTEOL	8.7
Board mount options	HOLE .086-.098
body width	0.217 inch
subject depth	0.22 inch
body length	1.181 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	260 °C
Minimum operating temperature	-60 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Plating thickness	39u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.177 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

5.6

±0.10

(3.4)

4.5

Last LF

contact G

±0.10

Pitch=2

First LF

contact D

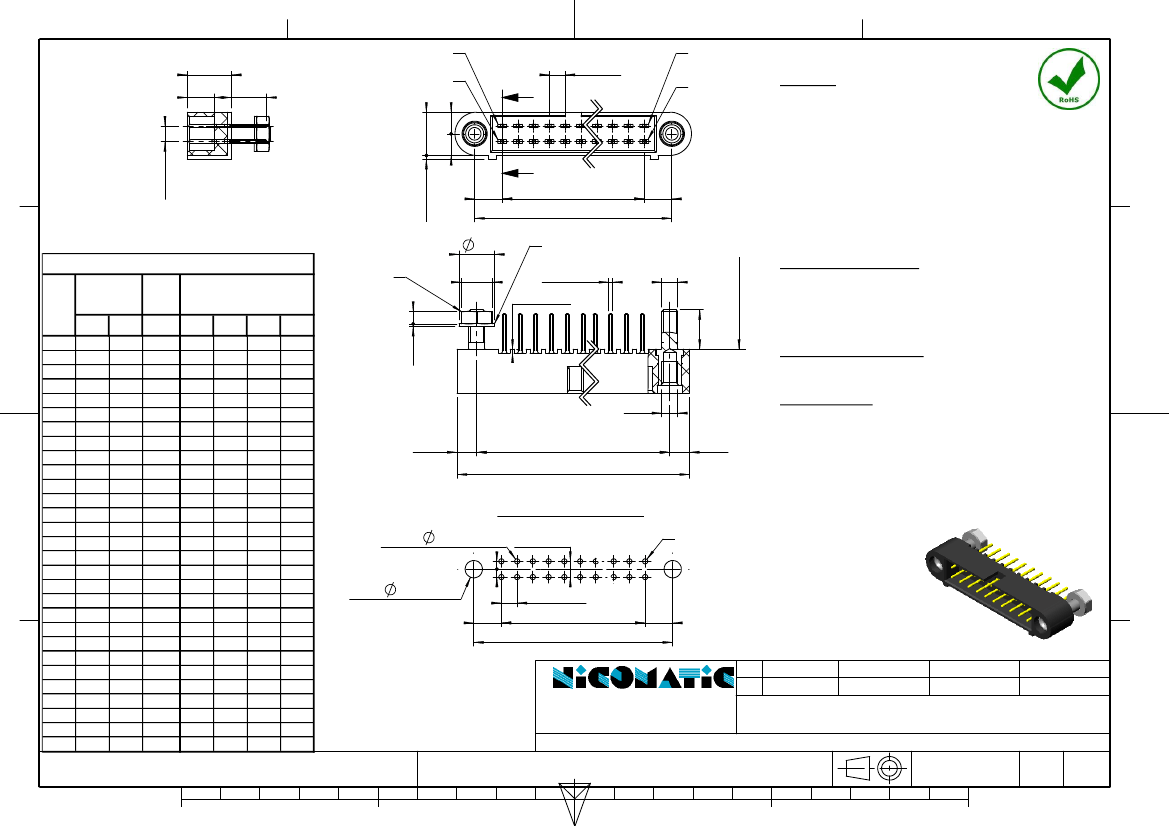

TECHNICALS FEATURES

MATERIAL

INSULATOR : Special PPS (Polyphenylene Sulfide Fibreglass

filled thermoplastic) UL 94-V0

= =

Pitch=2

5.5

CUT A-A

±0.05

0.5

CONNECTOR SERIES 220 MALE

LF contacts

number

Distance in

Length

mm between

in mm

axies

LF contacts reference

mark number

Connector

support face

1.6

nn x

2.2

This document and drawings, sketches, and schematic drawings are the property of

the NICOMATIC company. and no parts thereof may be reproduced and used without

the written consent of the owner. Law dated 11.03.1902

0.3

Radiation resistance

No humidity absorption

Oxygen free

Note : PPS characteristics are recognized for space applications

(3.5)

(A)

±0.10

(3.5)

SIGNAL CONTACTS for PCB:

Male :

Contact area

Contact tail

FIXING HARDWARE :

Copper alloy / Ni + Au 1µ

Copper alloy / Ni + Au flash 0.1µ

Fixing

hardware

A18H

4.5

Hex.4

0.5

Washer

Jackscrew :

Stainless steel

0.55

±0.05

ELECTRICAL for LF Contacts

All contacts

Working voltage (sea level)

Proof voltage

Contact resistance (initially)

Insulation resistance

3 A max. @ 25°

2.2 A max. @ 85°

Tested at 800 V DC

Tested at 1200 V DC

max. 10 mΩ

1000 MΩ min

MECHANICAL for LF Contacts

Mechanical operations

Contact insertion and withdrawal force

500 cycles min. up to 2500

2 N max. / 0.2 N min. per contact

(2.5)

±0.10

ENVIRONMENTAL

Temperature range

Vibration severity

From -60° to +260°C

0.75mm, 10 g RMS 6 hours long random

with superimposed sinusoid. No intermittencies

measured when using an H.S.L.I.

(High Speed Logic Interrupt) detector with a

trip threshold of 2 ns.

100g for 6 ms

HcFc 141 bMGX (ATOCHEM) solvent

96 hrs

56 days @ 90% humidity

(2.5)

Shock severity

Solvent resistance

Salt spray test

Humidity test

Recommended PCB layout :

0.65 min.

Pitch=2

First LF

contact

3D view

scale: 1.5:1

min.

(3.5)

Pitch=2

(A)

(3.5)

Marking as referenced in the CMM catalogue pages 12 & 13

2 17/02/10

www.nicomatic.com

Mail : nicomatic@nicomatic.fr

Tel : +33 (0)4.50.36.13.85

Iss

Date

P.D.

Drawn

E.M.

Checked

D.Z.

Approved

Item : Connector CMM220 male straight on PCB, nn LF

contacts, A18H

General

tolerance

Folder :

X:\Méthodes\Plans clients\Plans clients 2D\10 - CMM220\Connecteurs mâles\221YL\221YLnnA18H_cl

Catalogue

Reference :

221YLnnA18H

±0.2

Scale

2:1

Page

1/1
