5748826-2 datasheet, PDF - EEWORLD Datasheet

5748826-2: Descriptionconn D-sub plug R/A 25pos T/H; CategoryThe connector; File Size196KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5748826-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5748826-2	-	-	View	Buy Now

conn D-sub plug R/A 25pos T/H

Parameter Name	Attribute value

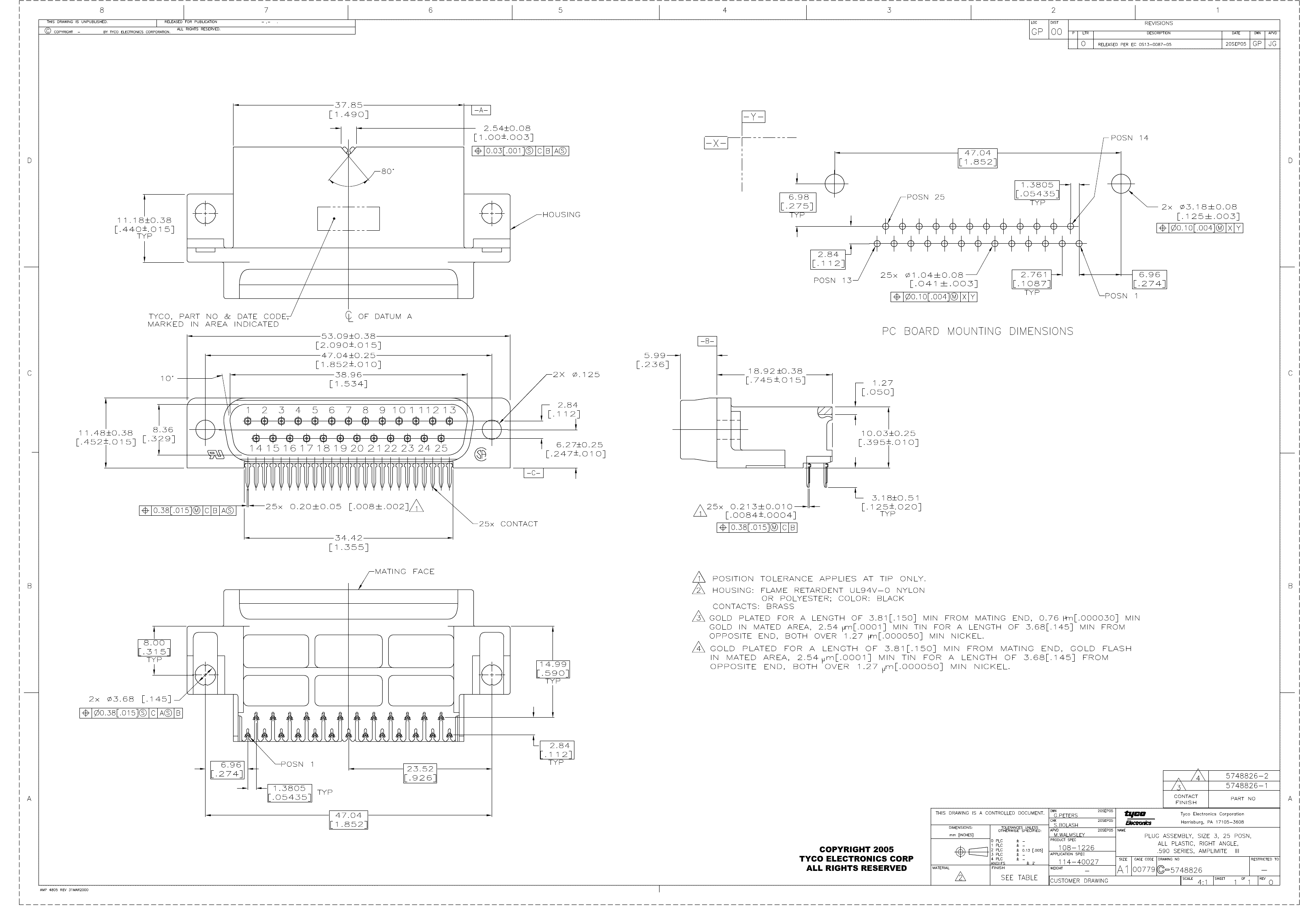

Datasheets
5748826
AMPLIMITE Catalog
Product Photos
5748826-2
RoHS Informati
5748826-2 Statement of Compliance
RoHS 2 Stateme
3D Model
5748826-2.pdf
Standard Package	70
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	-
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	-
Col	-
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AFS25B-ND - CONN D-SUB RECEPT 25POS 30 GOLDA31942-ND - CONN D-SUB RCPT 25P 22-26AWG AU
Other Names	5748826-2-ND57488262A107209

	5748826-2
Description	conn D-sub plug R/A 25pos T/H
Standard Package	70
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Contact Finish	Gold
Contact Finish Thickness	Flash
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AFS25B-ND - CONN D-SUB RECEPT 25POS 30 GOLDA31942-ND - CONN D-SUB RCPT 25P 22-26AWG AU
Other Names	5748826-2-ND57488262A107209
