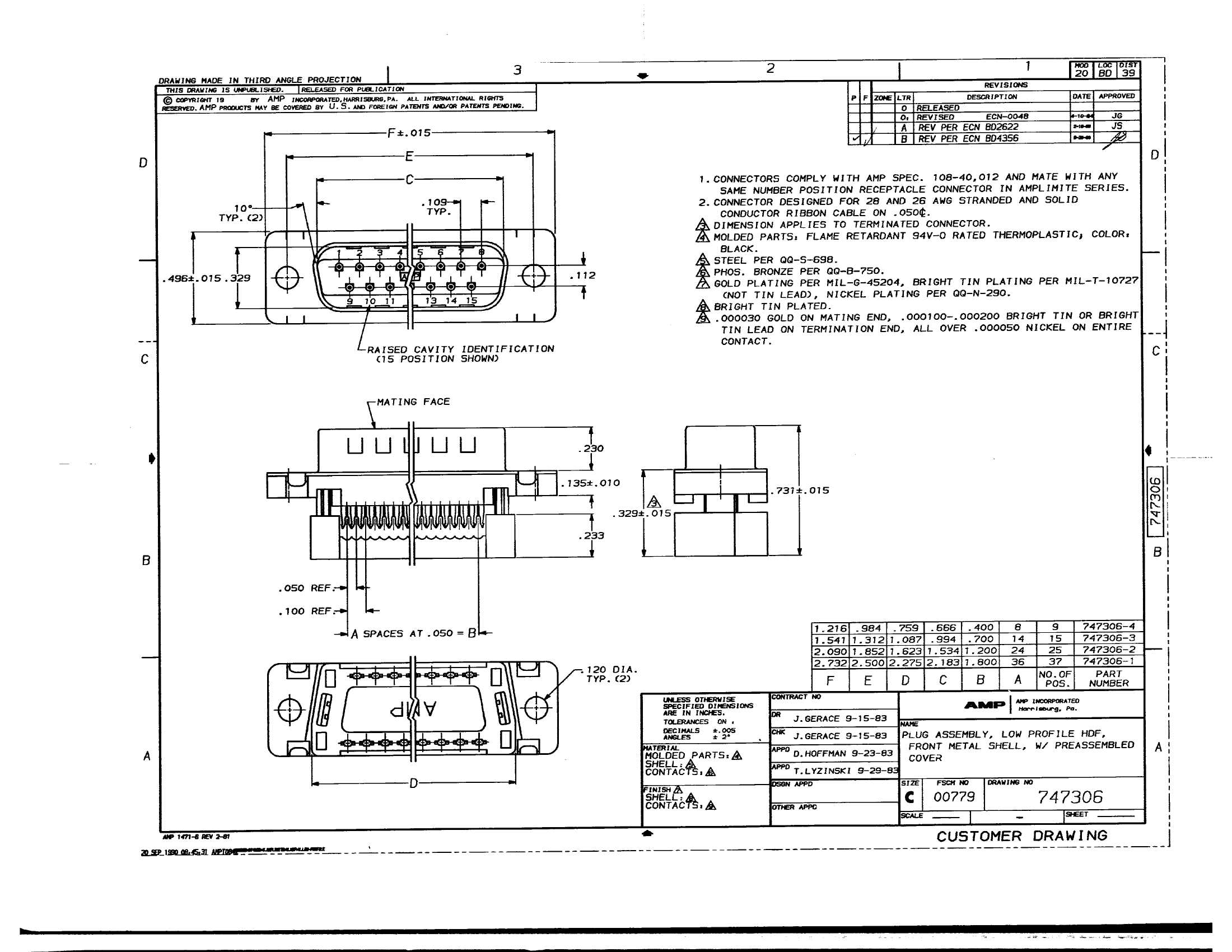

747306-3: Descriptionconn D-sub plug 15pos metal/AU; CategoryThe connector; File Size63KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

747306-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	747306-3	-	-	View	Buy Now

747306-3 Overview

conn D-sub plug 15pos metal/AU

747306-3 Parametric

Parameter Name	Attribute value
Datasheets
747306
Product Photos
1658613-3
3D Model
747306-3.pdf
Standard Package	40
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layou	2 (DA, A)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)
Terminati	IDC, Ribbon Cable
Features	Feed Through, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	-
Current Rating	1.25A
Housing Material	Thermoplastic
Col	Black
Other Names	AMR15G

Preview

Download Datasheet

View All

747306-3 Related Products

	747306-3	747306-2	747306-1	747306-4
Description	conn D-sub plug 15pos metal/AU	conn dsub plug 25pos idc	conn dsub plug 37pos idc	conn D-sub plug 9pos metal/AU
Standard Package	40	40	40	40
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Bulk
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	25	37	9
Number of Rows	2	2	2	2
Shell Size, Connector Layou	2 (DA, A)	3 (DB, B)	4 (DC, C)	1 (DE, E)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Terminati	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable
Features	Feed Through, Grounding Indents	Feed Through, Grounding Indents	Feed Through, Grounding Indents	Feed Through, Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Current Rating	1.25A	1.25A	1.25A	1.25A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black
Other Names	AMR15G	AMR25G	AMR37G	AMR09G
