6-1971800-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 6-1971800-1

6-1971800-1: Descriptionnew GI conn2.5 hdr asmbly 6P NC; CategoryThe connector; File Size310KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

6-1971800-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-1971800-1	-	-	View	Buy Now

6-1971800-1 Overview

new GI conn2.5 hdr asmbly 6P NC

6-1971800-1 Parametric

Parameter Name	Attribute value
Datasheets
1971798 Drawing
Standard Package	750
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	6
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Latch Holde
Features	Board Guide
Contact Finish	Ti
Contact Finish Thickness	-
Col	Natural
Other Names	A116722

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

UPDATE FOR KINK METHOD

ADD 4P/7P PRODUCT

ECR-14-002989

19SEP2012

28MAY2013

28FEB2014

HJ.Z

M.T

YH.M

D.Z

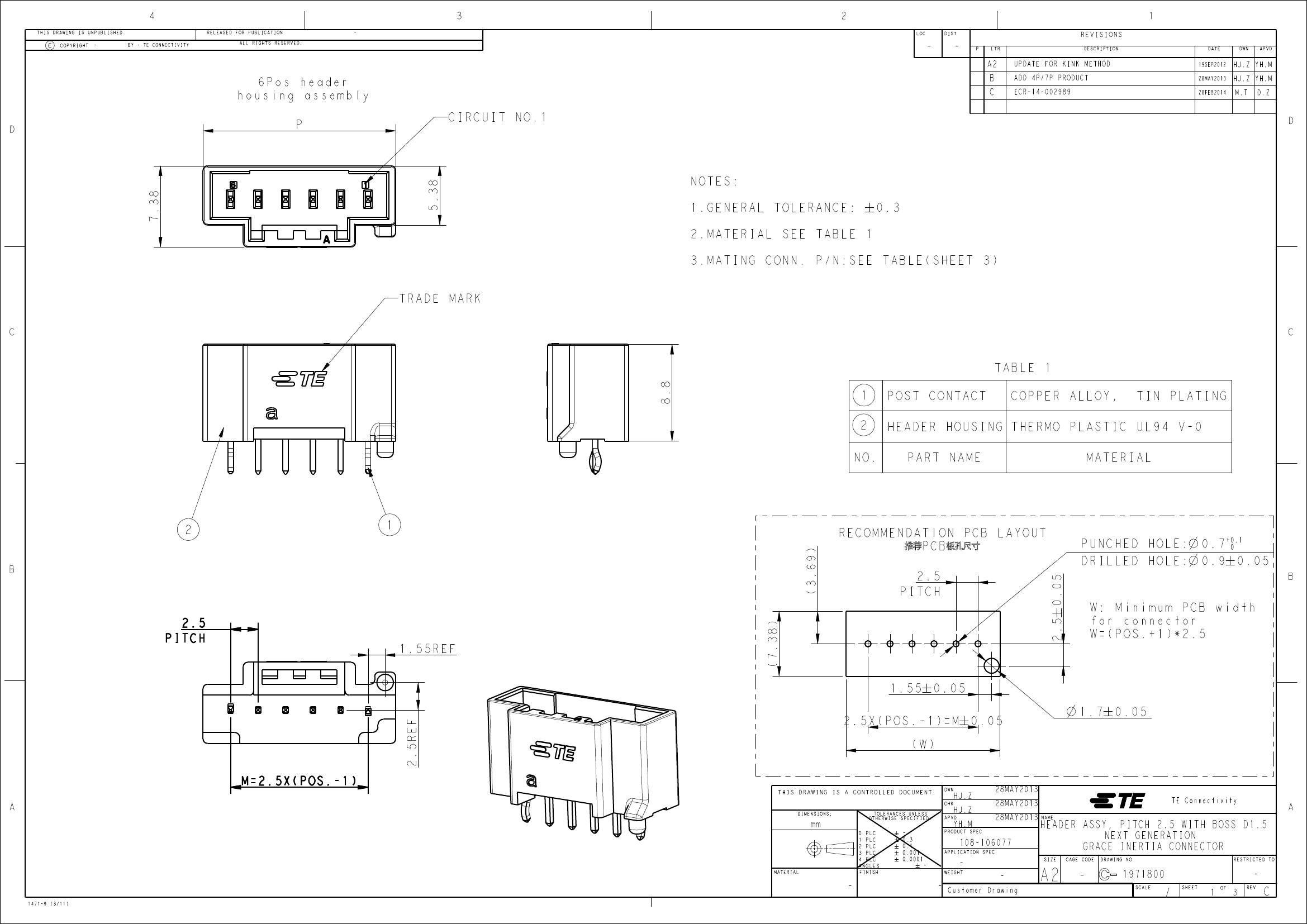

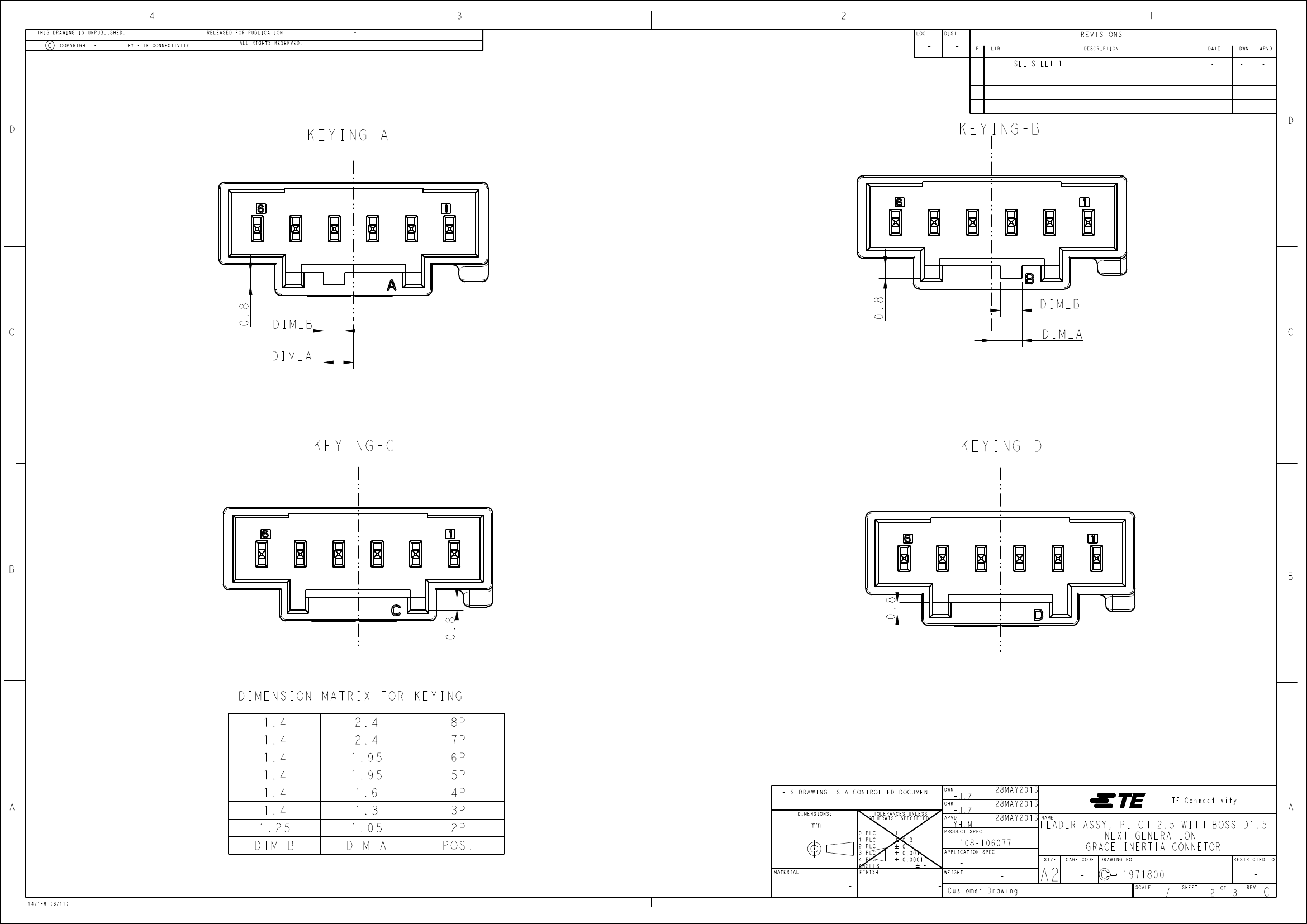

6Pos header

housing assembly

CIRCUIT NO.1

7.38

5.38

NOTES:

1.GENERAL TOLERANCE:

2.MATERIAL SEE TABLE 1

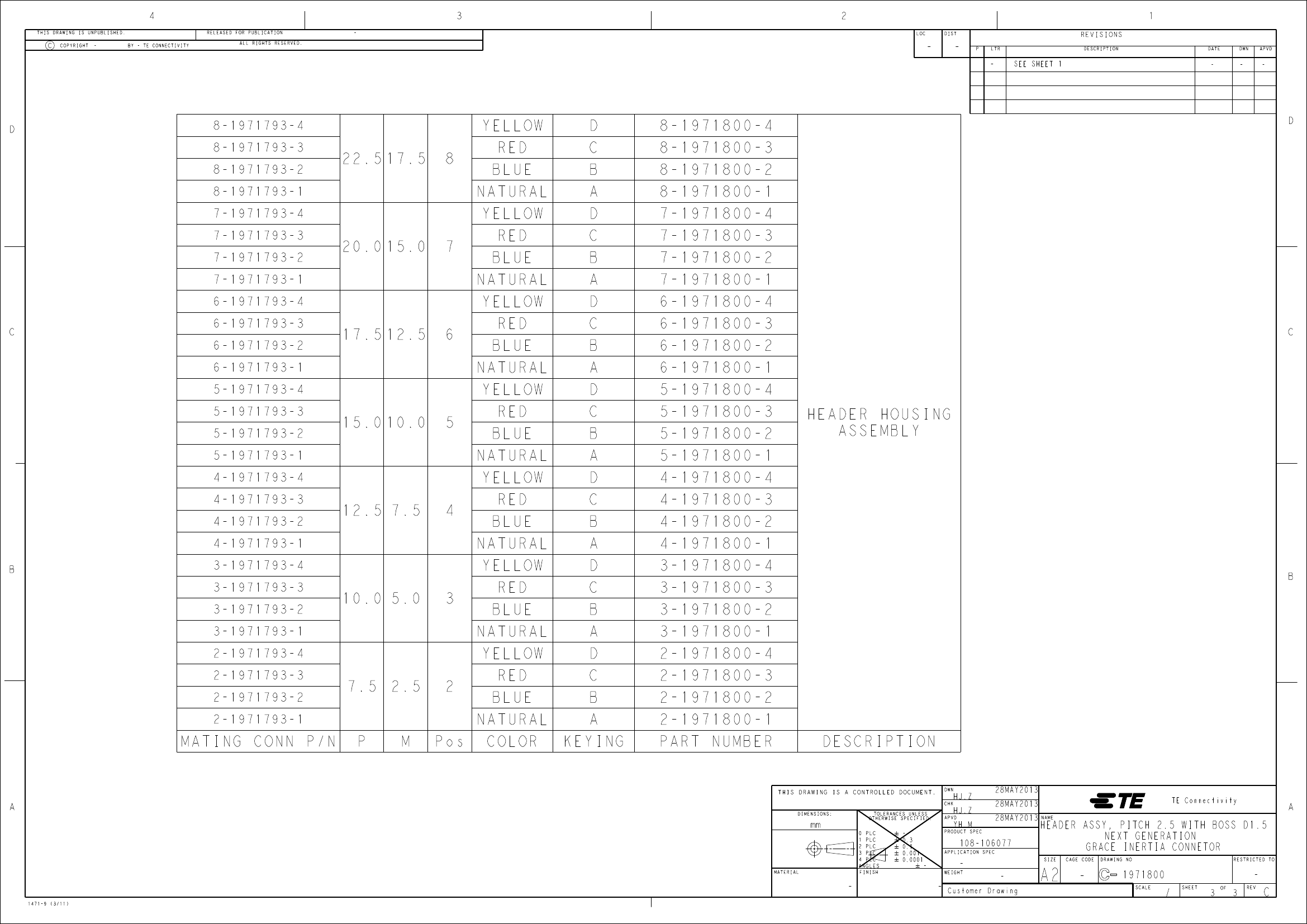

3.MATING CONN. P/N:SEE TABLE(SHEET 3)

# 0.3

TRADE MARK

TABLE 1

8.8

NO.

POST CONTACT

HEADER HOUSING

PART NAME

COPPER ALLOY,

TIN PLATING

THERMO PLASTIC UL94 V-0

MATERIAL

( 3.69 )

RECOMMENDATION PCB LAYOUT

PCB

0.05

2.5

PITCH

PUNCHED HOLE:

0.7

+0.1

DRILLED HOLE: n 0.9 # 0.05

W: Minimum PCB width

for connector

W=(POS.+1)*2.5

( 7.38 )

2.5

PITCH

1.55 REF

1.55

2.5 REF

0.05

1.7

0.05

2.5X(POS.-1)=M # 0.05

(W )

28MAY2013

NAME

M=2.5X(POS.-1)

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

HJ.Z

YH.M

2.5

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.1

0.001

0.0001

PRODUCT SPEC

APPLICATION SPEC

108-106077

HEADER ASSY, PITCH 2.5 WITH BOSS D1.5

NEXT GENERATION

GRACE INERTIA CONNECTOR

WEIGHT

1471-9 (3/11)

Customer Drawing

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

1971800

SCALE

SHEET

REV
