AWLP-50/3.2-T-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> AWLP-50/3.2-T-R

Preview

AWLP-50/3.2-T-R: Descriptionconn dip 50pos .1" X .1" tin; CategoryThe connector; File Size159KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

AWLP-50/3.2-T-R Overview

conn dip 50pos .1" X .1" tin

AWLP-50/3.2-T-R Parametric

Parameter Name	Attribute value
Datasheets
AWLP-xx-3.2-x-R
Product Photos
AWLP-50/3.2-T-R
Catalog Drawings
AWLP Series
Featured Produc
IDC Connectors and Cables
Cable Assemblies
Standard Package	48
Category	Connectors, Interconnects
Family	Rectangular Connectors - Board In, Direct Wire to Board
Packaging	Tray
Connector Type	Ribbon Cable
Number of Positions	50
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Through Hole
Cable Terminati	IDC
Wire Gauge	-
Features	Feed Through
Contact Finish	Ti
Contact Finish Thickness	-
Col	Gray
Number of Positions Loaded	All
Dynamic Catalog	AWLP
Other Names	AWLP5032TRHDM50S

Preview

Download Datasheet

View All

1

4

A

2

3

5

6

7

A

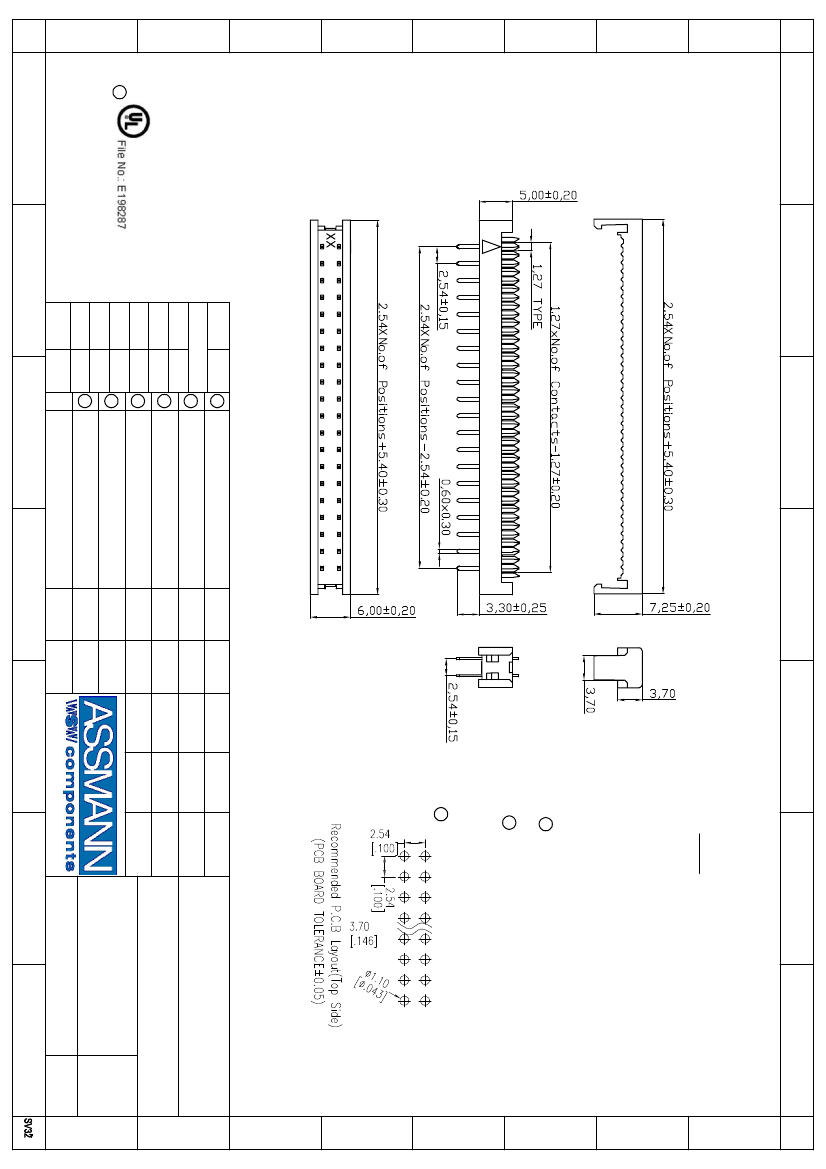

NOTES:

B

C

8

MATERIAL

1.Insulator Material:PBT+30%GF(UL94V-0),Grey

2.Contact Material : Brass

3.Contact Plating : Sn Over 50μ" Ni

ELECTRICAL

1.Current Rating : 3.0AMP

2.Withstand Voltage : 1000V AC/DC

4.Contact Resistance : 20mΩ max

5.Insulation Resistance: 1000MΩ min

ENVIRONMENTAL

1.Operation Temperature: -40°C to +105°C

2.Waving Soldering Temperature: 245°C, 5s Max.

3.Packing : Tray

B

C

5

Order Information:

contacts xx : 06,08,10,12,14,16,18,20,22,24,26

28,30,32,34,36,38,40,50,60,64

D

7

D

E

F

Scale

Free

TOLERANCE

X.X

X.XX

6

8

7

Add waving soldering temperature

Add recommended PCB layout

08.08.2017

16.07.2015

Ray

Drawn

Date

31.07.2006

F

G

RoHS compliant

Unit: mm

Name

Customer-No.

Hellwig

±0.40

±0.25

Angle

6

Add UL file no.

12.12.2013

Amy

Approved

08.08.2017

G

X.XXX ±0.15

5

Add multiple pin

17.09.2013

Winnie

ASSMANN WSW-No.

AWLP xx/3.2-T

±

3°

4

3

Id.

Add 18pin product

Update

Modification

06.09.2013

16.03.2009

Date

Ray

Dean

Name

Drawing-No.

H

1

2

ASS 1197 CO

rev08

H

3

4

5

Replace dd 15.11.01

Sheet

6

7
