5000242081 datasheet, PDF - EEWORLD Datasheet

5000242081: Description0.4 btb rec hsg 20ckt; CategoryThe connector; File Size274KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

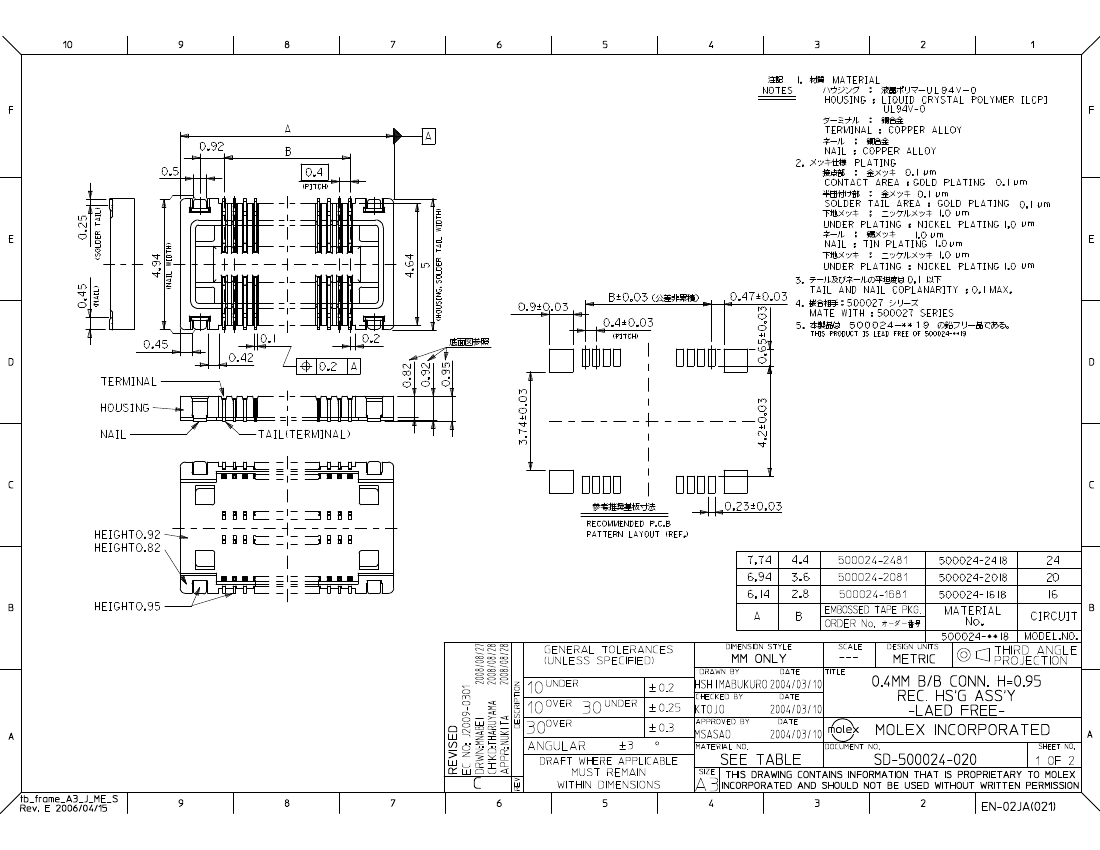

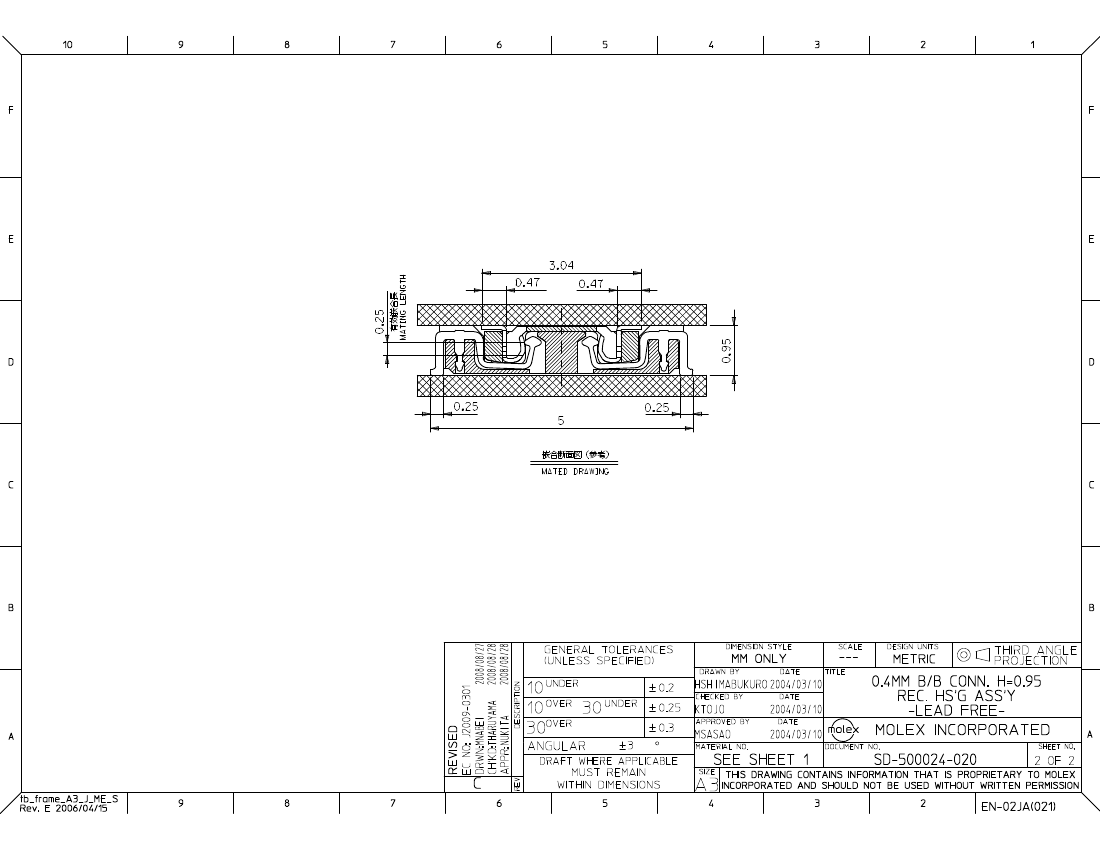

5000242081 Overview

0.4 btb rec hsg 20ckt

Parameter Name	Attribute value
Datasheets
5000242481
3D Model
500024-2081.s
PCN Obsolescence/ EOL
500024 Series 26/Feb/2013
Standard Package	2,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

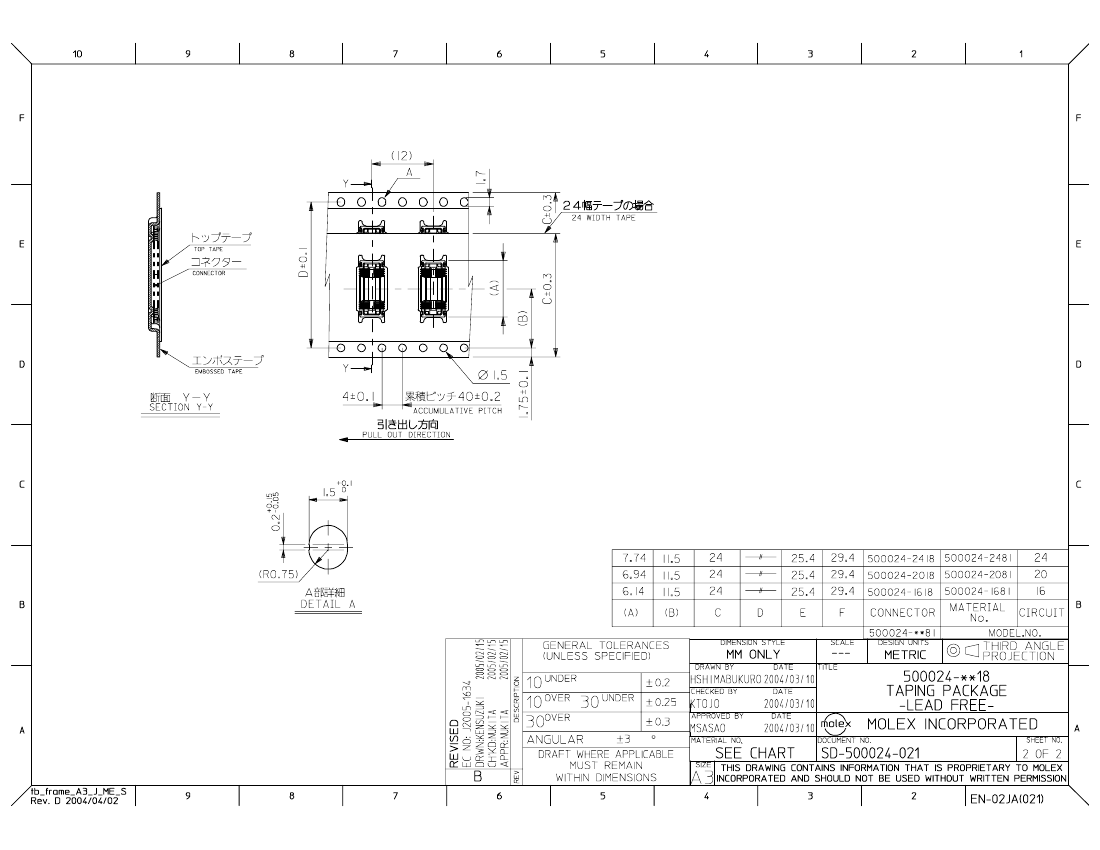

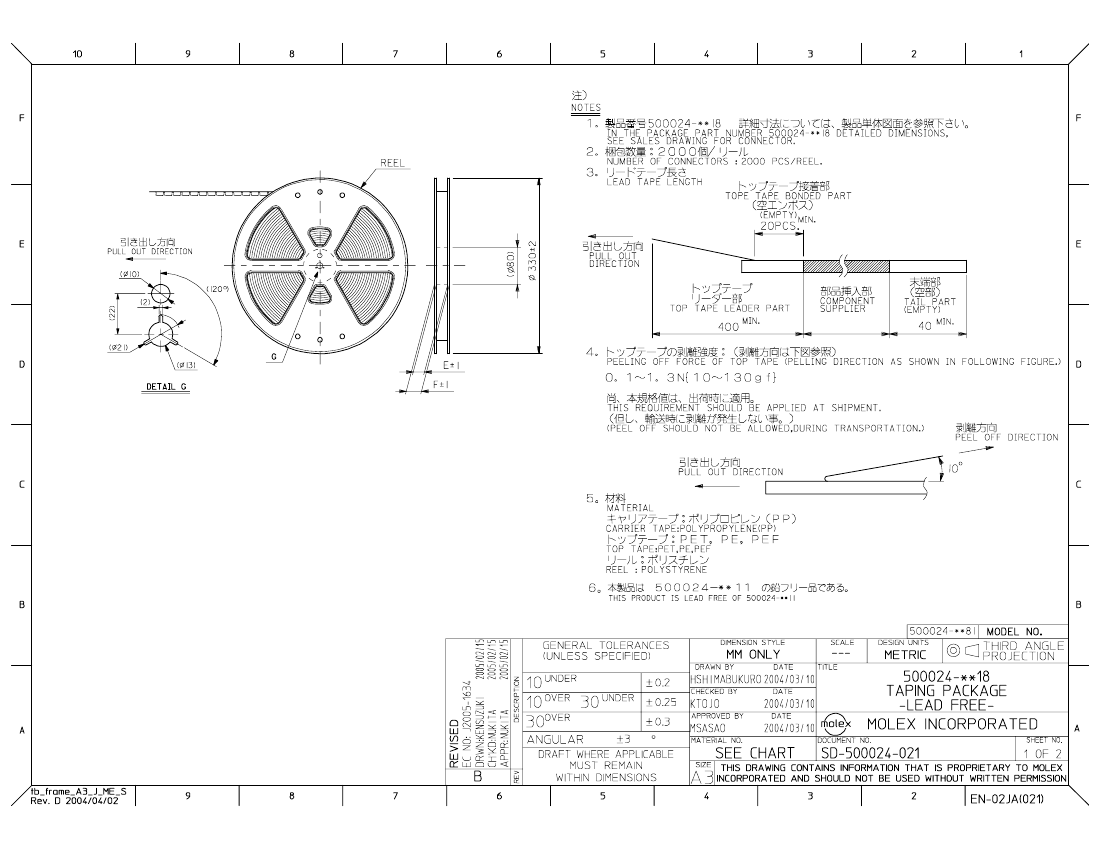

Packaging	Tape & Reel (TR)
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	3.9µin (0.10µm)
Mated Stacking Heights	0.95mm
Height Above Board	0.037" (0.95mm)
Mating Products	5000272041-ND - 0.4 B/B H=1.0 PLUG 20CKT
Other Names	500024-2081

	5000242081	5000242481	5000241681
Description	0.4 btb rec hsg 20ckt	conn recpt 24pos 0.4mm gold vert	0.4 btb rec hsg 16ckt
Standard Package	2,000	1	2,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Cut Tape (CT)	Tape & Reel (TR)
Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Number of Positions	20	24	16
Pitch	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)
Number of Rows	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou
Features	Solder Retenti	Solder Retenti	Solder Retenti
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	3.9µin (0.10µm)	3.9µin (0.10µm)	3.9µin (0.10µm)
Mated Stacking Heights	0.95mm	0.95mm	0.95mm
Height Above Board	0.037" (0.95mm)	0.037" (0.95mm)	0.037" (0.95mm)
Mating Products	5000272041-ND - 0.4 B/B H=1.0 PLUG 20CKT	5000272481-ND - 0.4 B/B PLUG HSG 24CKTWM3666CT-ND - CONN PLUG 0.4MM 24POS VERT SMDWM3666DKR-ND - CONN PLUG 0.4MM 24POS VERT SMDWM3666TR-ND - CONN PLUG 0.4MM 24POS VERT SMD	5000271641-ND - 0.4 B/B PLUG MOLD LOCK 16CKT
Other Names	500024-2081	WM3664CT	500024-1681
