5917630-4: Descriptionconn rcpt FH 100pos 050 vert; CategoryThe connector; File Size55KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5917630-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5917630-4	-	-	View	Buy Now

5917630-4 Overview

conn rcpt FH 100pos 050 vert

5917630-4 Parametric

Parameter Name	Attribute value
Datasheets

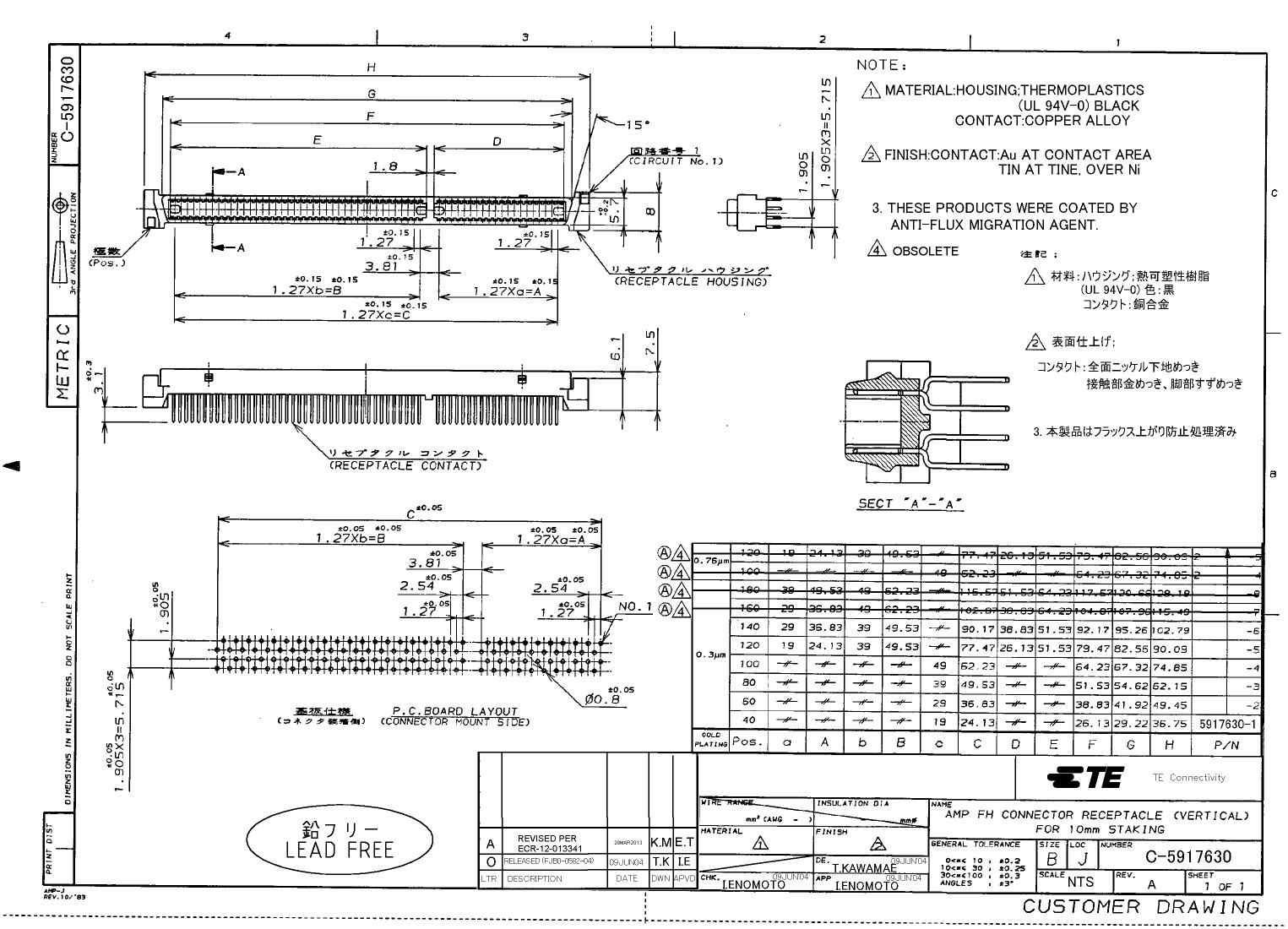

5917630 Drawing
RoHS Informati
5917630-4 Statement of Compliance
RoHS 2 Stateme
3D Model
5917630-4.pdf
Standard Package	720
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	-
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	100
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	-
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	10mm
Height Above Board	0.295" (7.50mm)
Mating Products	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A

Preview

Download Datasheet

View All

5917630-4 Related Products

	5917630-4	5917630-7	5917630-1	5917630-5	5917630-6
Description	conn rcpt FH 100pos 050 vert	conn rcpt FH 160pos 050 vert	conn rcpt FH 40pos .050 vert	conn rcpt FH 120pos 050 vert	conn rcpt FH 140pos 050 vert
Standard Package	720	480	130	1,200	480
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	100	160	40	120	140
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	10mm	10mm	10mm	10mm	10mm
Height Above Board	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)
Mating Products	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A	5917631-7-ND - CONN PLUG FH 160POS .050 VERT5176381-7-ND - CONN PLUG FH 160POS .050 R/A176381-7-ND - CONN PLUG FH 160POS .050 R/A	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A	2-5917631-5-ND - CONN PLUG FH 120POS .050 VERTA114073-ND - CONN PLUG FH 120POS .050 VERT2-5179540-5-ND - CONN PLUG FH 120POS 050 VERT2-179540-5-ND - CONN PLUG FH 120POS 050 VERT5176381-5-ND - CONN PLUG FH 120POS .050 R/A176381-5-ND - CONN PLUG FH 120POS .050 R/A	5917631-6-ND - CONN PLUG FH 140POS .050 VERT5176381-6-ND - CONN PLUG FH 140POS .050 R/A176381-6-ND - CONN PLUG FH 140POS .050 R/A
