SS-39100-008 datasheet, PDF - EEWORLD Datasheet

SS-39100-008: Descriptionconn mod plug 8p8c unshielded; CategoryThe connector; File Size484KB，7 Pages; ManufacturerStewart Connector; Environmental Compliance

Download Datasheet Parametric Compare View All

SS-39100-008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS-39100-008	-	-	View	Buy Now

conn mod plug 8p8c unshielded

Parameter Name	Attribute value
Datasheets
SS-39100-yyy
39 Series Unshielded Assem Ins
Product Photos
SS-39100-008
Other Related Documents
Application Tooling
RoHS Informati
RoHS Compliance
Standard Package	1,000
Category	Connectors, Interconnects
Family	Modular Connectors - Plugs
Packaging	Bulk
Cable Type	Round Cable, Solid or Stranded Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Features	Molded B
Shielding	Unshielded
Ratings	Cat6
Ingress Protecti	-
Terminati	IDC
Length	1.470" (37.34mm)
Col	Translucent - Cle
Clear B
Wire Gauge	-
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Contact Material	Copper Alloy
Current Rating	1.5A
Voltage Rating	150V
Housing Material	Polycarbonate (PC)
Shield Material	-
Dynamic Catalog	39 Series
Associated Produc	39200-883-ND - CONN ACCY BOOT BLACK380-1131-ND - TOOL DIE&NEST FOR 2990009-01380-1129-ND - TOOL DIE SET FOR SS-39100-008380-1134-ND - MOD TERM TOOL KIT CRP TOOL W/DIE
Other Names	380-1092SS39100008

Bel Stewart Connector

11118 Susquehanna Trail South Glen Rock, PA 17327

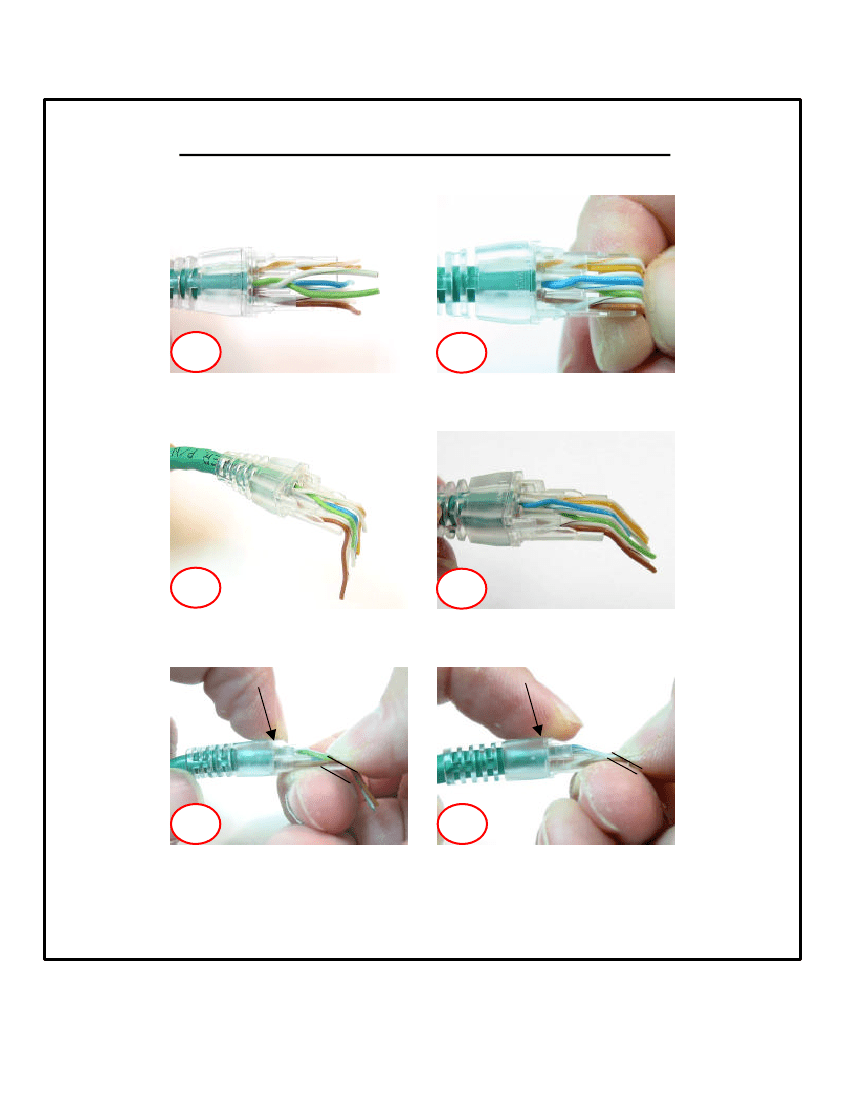

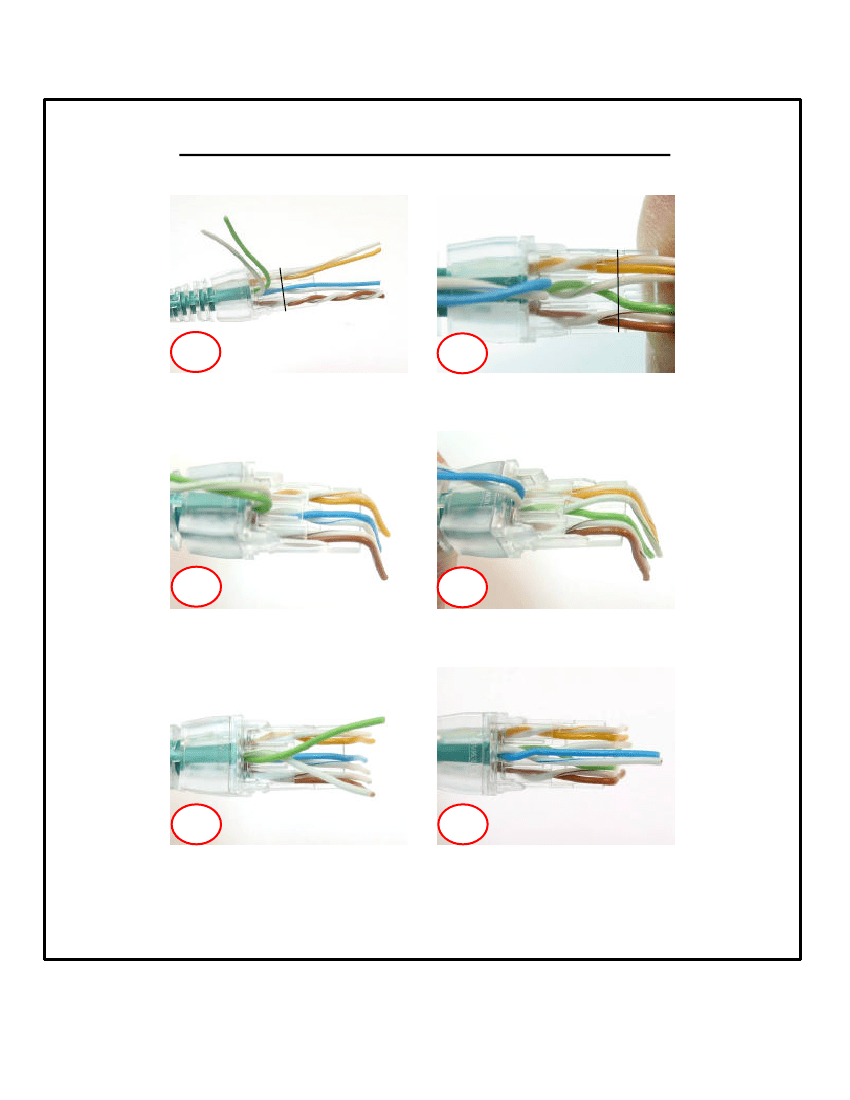

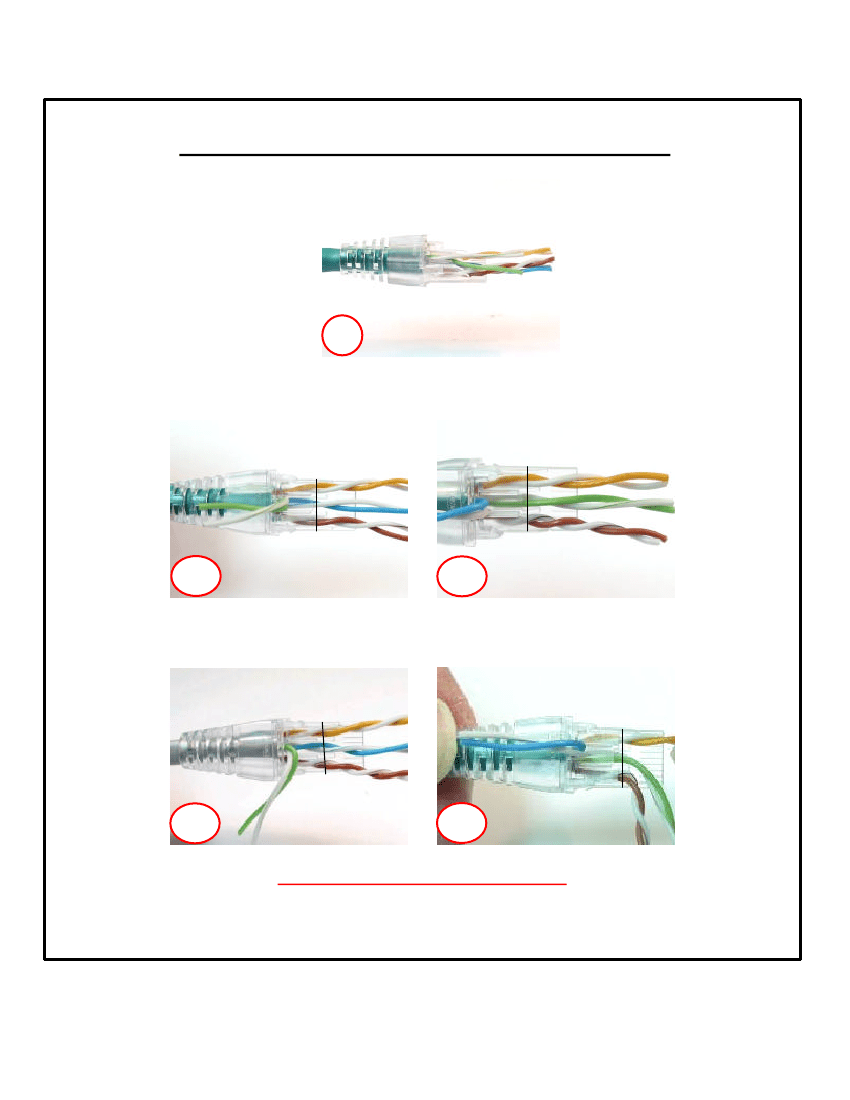

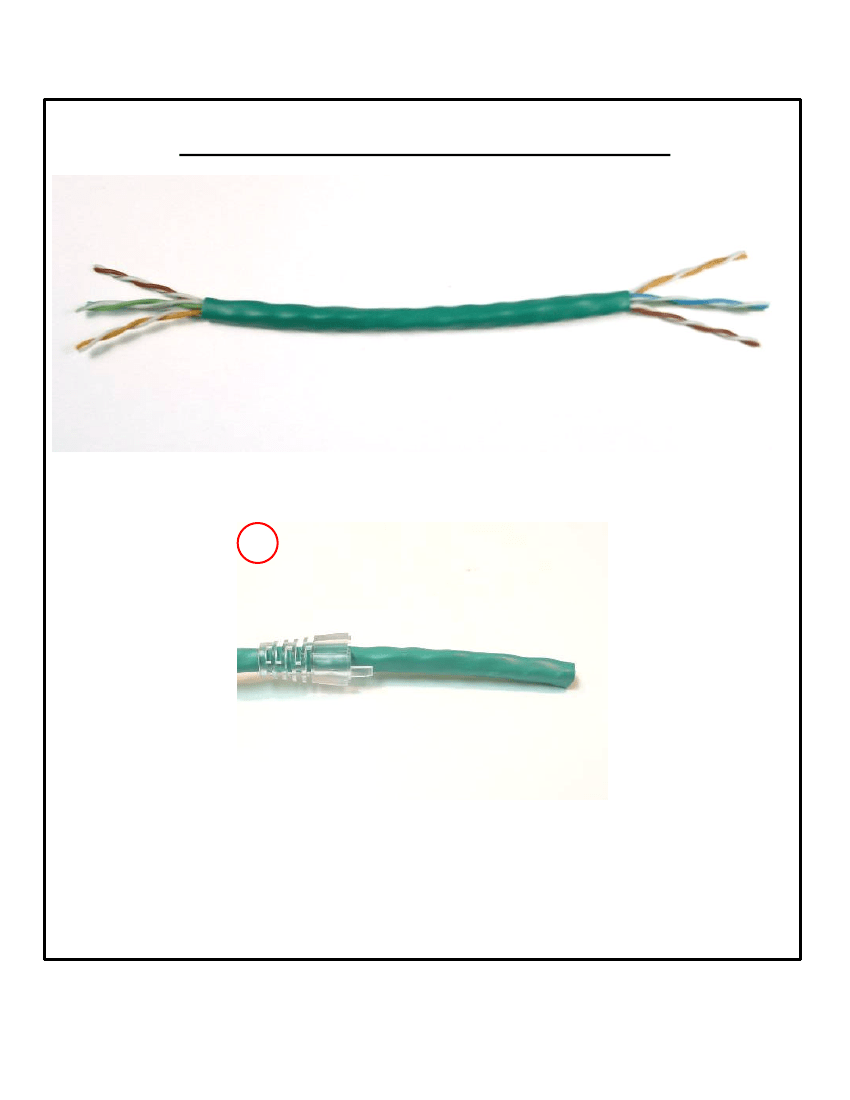

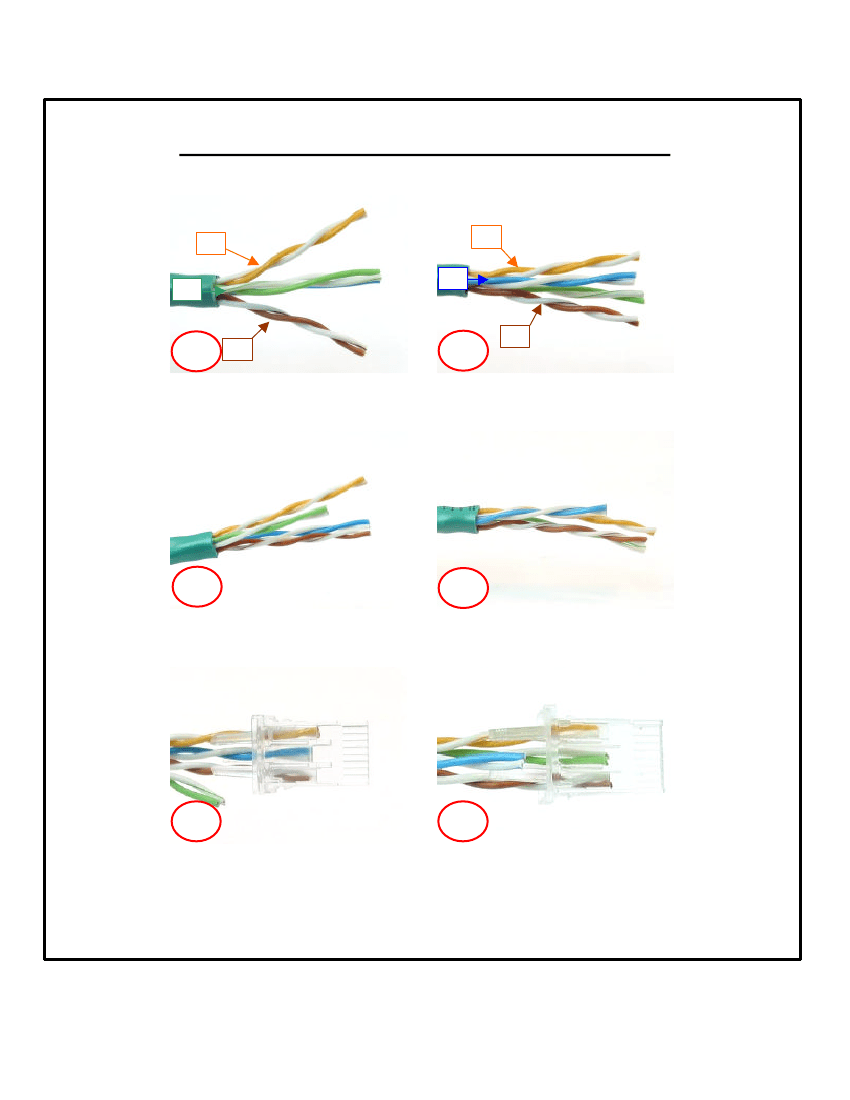

39 SERIES UNSHIELDED ASSEMBLY INSTRUCTIONS

GREEN END

BLUE END

One end of cable has

Green

on top, other end has

Blue

on top.

Green

end steps will be shown on left,

Blue

steps shown on right. Common steps will be in the middle.

Slide Strain Relief onto cable

Page 1 of 7

MN3900006-A1

	SS-39100-008	SS-39100-017	SS-39100-039	SS-39100-002	SS-39100-016
Description	conn mod plug 8p8c unshielded	conn mod plug 8p8c unshielded	CAT6 UTP SMALL DIAMETER PLUG	CONN MOD PLUG 8P8C UNSHIELDED	CONN MOD PLUG 8P8C UNSHIELDED
Connector type	-	-	plug	plug	plug
Cable type	-	-	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors	Round cables, solid or stranded conductors
Number of pins/contacts	-	-	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
grade	-	-	Cat6	Cat6	Cat6
Termination	-	-	crimp	IDC	IDC
length	-	-	1.484"（37.70mm）	0.885"（22.48mm）	1.470"（37.34mm）
color	-	-	transparent	translucent - transparent	translucent - transparent
Contact plating	-	-	gold	gold	gold
Contact plating thickness	-	-	50.0µin（1.27µm）	50.0µin（1.27µm）	50.0µin（1.27µm）
Contact material	-	-	copper alloy	Phosphor bronze	copper alloy
Shell material	-	-	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
