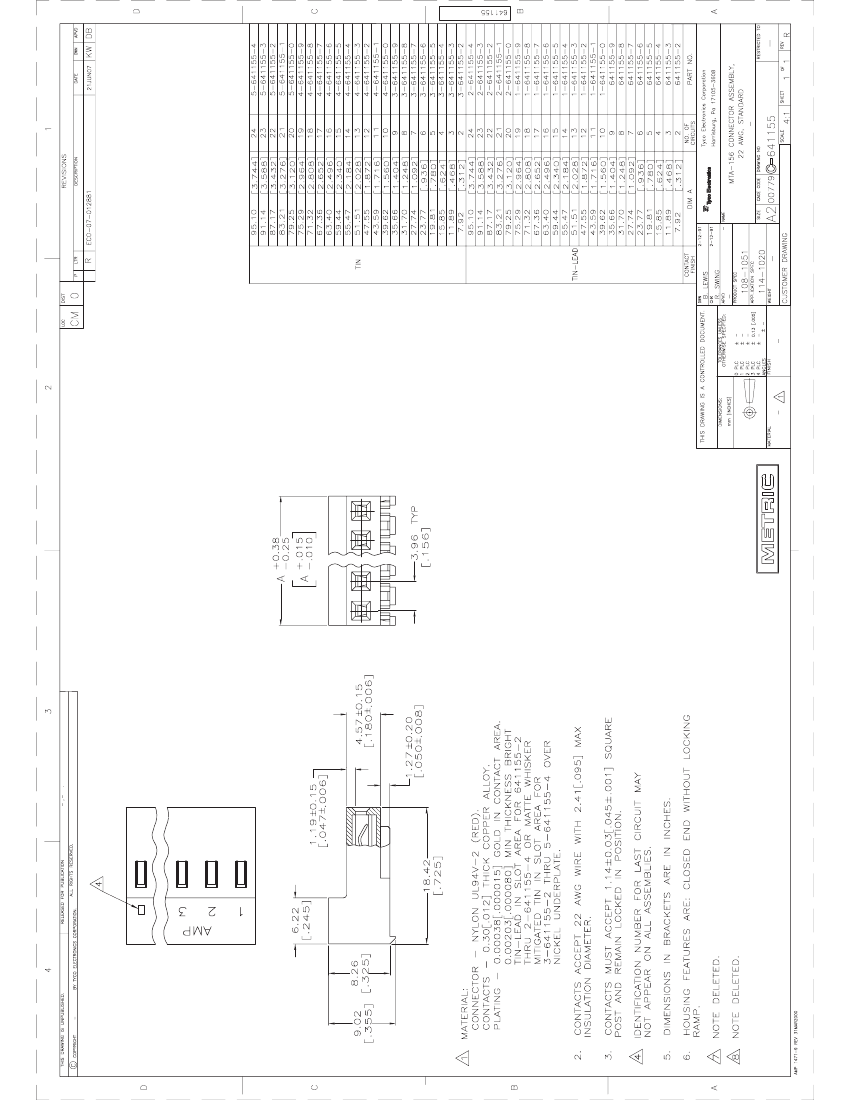

PDF
Preview

3-641155-5

Description
conn rcpt 5pos 22awg mta-156
CategoryThe connector
File Size129KB，1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

3-641155-5 Online Shopping

Suppliers Part Number Price MOQ In stock
3-641155-5 - - View Buy Now

3-641155-5 Overview

conn rcpt 5pos 22awg mta-156

3-641155-5 Parametric

Parameter NameAttribute value
Datasheets
641155
Standard Package500
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Free Hanging, Panel Mou
PackagingBulk
Connector TypeReceptacle
Contact TypeFemale Socke
Number of Positions5
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Mounting TypeFree Hanging (In-Line)
Fastening Type-
Cable TerminatiIDC
Wire TypeDiscrete or Ribbon Cable
Wire Gauge22 AWG
FeaturesClosed End
Contact FinishGold
Contact Finish Thickness15µin (0.38µm)
ColRed
Mating Products647124-5-ND - CONN HEADER 5POS VERT .156 TINA114271-ND - CONN HEADER 5POS VERT .156 TIN644759-5-ND - CONN HEADER 5POS VERT .156 GOLD641120-5-ND - CONN HEADER 5POS VERT .156 GOLD647126-5-ND - CONN HEADER 5POS R/A .156 TIN644766-5-ND - CONN HEADER 5POS VERT .156 GOLD644613-5-ND - CONN HEADER 5POS R/A .156 TIN641202-5-ND - CONN HEADER 5POS STR .156 30GOLD641121-5-ND - CONN HEADER 5POS R/A .156 15GOLDA114274-ND - CONN HEADER 5POS VERT .156 TINA114205-ND - CONN HEADER VERT 5POS .156 TIN647143-5-ND - CONN HEADER 5POS VERT .156 GOLD641209-5-ND - CONN HEADER VERT 5POS .156 GOLDA31691-ND - CONN HEADER RT/A .156 5POS 30AUA31679-ND - CONN HEADER 5POS .156 30 GOLDA26170-ND - CONN HEADER VERT 5POS .156 TINA26188-ND - CONN HEADER RT/A .156 5POS 30AUA26178-ND - CONN HEADER VERT .156 5POS 30AUA24179-ND - CONN HEADER VERT 5POS .156 TINA24158-ND - CONN HEADER RTANG 5POS .156 TINA24167-ND - CONN HEADER VERT 5POS .156 TINA19921-ND - CONN HEADER RTANG 5POS .156 TINA19903-ND - CONN HEADER VERT 5POS .156 TINA19891-ND - CONN HEADER VERT 5POS .156 TINA19877-ND - CONN HEADER RTANG 5POS .156 TINA19871-ND - CONN HEADER VERT 5POS .156 TIN
Associated ProducA19763-ND - CONN DUST COVER 5POS CLOSEDA19743-ND - CONN STRAIN RELIEF COVER 5POS

Preview

Download Datasheet

3-641155-5 Related Products

3-641155-5 3-641155-2 3-641155-6 3-641155-3 3-641155-8 3-641155-9 3-641155-7
Description conn rcpt 5pos 22awg mta-156 conn rcpt 2pos 22awg mta-156 conn rcpt 6pos 22awg mta-156 conn rcpt 3pos 22awg mta-156 conn rcpt 8pos 22awg mta-156 conn rcpt 9pos 22awg mta-156 conn rcpt 7pos 22awg mta-156
Standard Package 500 500 250 500 250 250 250
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socke Female Socke Female Socke Female Socke Female Socke Female Socke Female Socke
Number of Positions 5 2 6 3 8 9 7
Pitch 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1 1 1 1
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Cable Terminati IDC IDC IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG
Features Closed End Closed End Closed End Closed End Closed End Closed End Closed End
Contact Finish Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 15µin (0.38µm) 15µin (0.38µm) 15µin (0.38µm) 15µin (0.38µm) 15µin (0.38µm) 15µin (0.38µm) 15µin (0.38µm)
Col Red Red Red Red Red Red Red
Mating Products 647124-5-ND - CONN HEADER 5POS VERT .156 TINA114271-ND - CONN HEADER 5POS VERT .156 TIN644759-5-ND - CONN HEADER 5POS VERT .156 GOLD641120-5-ND - CONN HEADER 5POS VERT .156 GOLD647126-5-ND - CONN HEADER 5POS R/A .156 TIN644766-5-ND - CONN HEADER 5POS VERT .156 GOLD644613-5-ND - CONN HEADER 5POS R/A .156 TIN641202-5-ND - CONN HEADER 5POS STR .156 30GOLD641121-5-ND - CONN HEADER 5POS R/A .156 15GOLDA114274-ND - CONN HEADER 5POS VERT .156 TINA114205-ND - CONN HEADER VERT 5POS .156 TIN647143-5-ND - CONN HEADER 5POS VERT .156 GOLD641209-5-ND - CONN HEADER VERT 5POS .156 GOLDA31691-ND - CONN HEADER RT/A .156 5POS 30AUA31679-ND - CONN HEADER 5POS .156 30 GOLDA26170-ND - CONN HEADER VERT 5POS .156 TINA26188-ND - CONN HEADER RT/A .156 5POS 30AUA26178-ND - CONN HEADER VERT .156 5POS 30AUA24179-ND - CONN HEADER VERT 5POS .156 TINA24158-ND - CONN HEADER RTANG 5POS .156 TINA24167-ND - CONN HEADER VERT 5POS .156 TINA19921-ND - CONN HEADER RTANG 5POS .156 TINA19903-ND - CONN HEADER VERT 5POS .156 TINA19891-ND - CONN HEADER VERT 5POS .156 TINA19877-ND - CONN HEADER RTANG 5POS .156 TINA19871-ND - CONN HEADER VERT 5POS .156 TIN 641524-2-ND - CONN PLUG 2POS MTA156 22AWG RED641121-2-ND - CONN HEADER 2POS R/A .156 GOLD647142-2-ND - CONN HEADER 2POS R/A .156 GOLD644807-2-ND - CONN PLUG 2POS 18AWG MTA-156644749-2-ND - CONN HEADER 2POS VERT .156 TIN644633-2-ND - CONN HEADER 2POS R/A .156 GOLD644631-2-ND - CONN HEADER 2POS VERT .156 GOLD644613-2-ND - CONN HEADER 2POS R/A .156 TIN647123-2-ND - CONN HEADER 2POS VERT .156 TIN644617-2-ND - CONN HEADER 2POS R/A .156 TIN641439-2-ND - CONN PLUG 2POS 26AWG BLUE .156643995-2-ND - CONN PLUG 2POS 22AWG MTA-156641438-2-ND - CONN PLUG 2POS 24AWG MTA-156641120-2-ND - CONN HEADER 2POS VERT .156 GOLDA31688-ND - CONN HEADER RT/A .156 2POS 30AUA31676-ND - CONN HEADER 2POS .156 30 GOLDA26168-ND - CONN HEADER VERT 2POS .156 TINA24174-ND - CONN HEADER RT/A .156 2POS 30AUA24173-ND - CONN HEADER 2POS .156 30 GOLD641119-2-ND - CONN HEADER 2POS VERT .156 GOLDA24176-ND - CONN HEADER VERT 2POS .156 TINA24155-ND - CONN HEADER RTANG 2POS .156 TINA24164-ND - CONN HEADER VERT 2POS .156 TINA19900-ND - CONN HEADER VERT 2POS .156 TINA1976-ND - CONN HEADER RTANG 2POS .156 TINA1971-ND - CONN HEADER VERT 2POS .156 TINA1966-ND - CONN HEADER RTANG 2POS .156 TINA1961-ND - CONN HEADER VERT 2POS .156 TIN 644767-6-ND - CONN HEADER 6POS VERT .156 GOLD644759-6-ND - CONN HEADER 6POS VERT .156 GOLD644756-6-ND - CONN HEADER 6POS VERT .156 GOLD644617-6-ND - CONN HEADER 6POS R/A .156 TIN3-641120-6-ND - CONN HEADER 6POS VERT .156 GOLD647143-6-ND - CONN HEADER 6POS VERT .156 GOLD647123-6-ND - CONN HEADER 6POS VERT .156 TIN641121-6-ND - CONN HEADER 6POS R/A .156 15GOLD644611-6-ND - CONN HEADER VERT 6POS .156 TINA31692-ND - CONN HEADER RT/A .156 6POS 30AUA31680-ND - CONN HEADER 6POS .156 30 GOLDA26171-ND - CONN HEADER VERT 6POS .156 TINA26189-ND - CONN HEADER RT/A .156 6POS 30AUA26179-ND - CONN HEADER VERT .156 6POS 30AUA24180-ND - CONN HEADER VERT 6POS .156 TINA24168-ND - CONN HEADER VERT 6POS .156 TINA24159-ND - CONN HEADER RTANG 6POS .156 TINA19904-ND - CONN HEADER VERT 6POS .156 TINA1978-ND - CONN HEADER RTANG 6POS .156 TINA1973-ND - CONN HEADER VERT 6POS .156 TINA1968-ND - CONN HEADER RTANG 6POS .156 TINA1963-ND - CONN HEADER VERT 6POS .156 TIN 647481-3-ND - 03P MTA156 PLUG CONN 18AWG FT641438-3-ND - CONN PLUG 3POS MTA156 24AWG WHT647143-3-ND - CONN HEADER 3POS VERT .156 GOLD644807-3-ND - CONN PLUG 3POS 18AWG MTA-156644760-3-ND - CONN HEADER 3POS VERT .156 GOLD644749-8-ND - CONN HEADER 3POS VERT .156 TIN644633-3-ND - CONN HEADER 3POS R/A .156 GOLD641120-3-ND - CONN HEADER 3POS VERT .156 GOLD647476-3-ND - CONN PLUG 3POS 18AWG MTA-156644759-3-ND - CONN HEADER 3POS VERT .156 GOLD643995-3-ND - CONN PLUG 3POS 22AWG MTA-156641436-3-ND - CONN PLUG 3POS 20AWG MTA-156641522-3-ND - CONN PLUG 3POS 18AWG MTA-156 T/HA105039-ND - 03P MTA156 CONN ASSY ORNGA31689-ND - CONN HEADER RT/A .156 3POS 30AUA31677-ND - CONN HEADER 3POS .156 30 GOLDA26169-ND - CONN HEADER VERT 3POS .156 TINA24175-ND - CONN HEADER RT/A .156 3POS 30AUA26176-ND - CONN HEADER VERT .156 3POS 30AU641435-3-ND - 03P MTA156 CONN ASSY ORNG641119-3-ND - CONN HEADER 3POS VERT .156 GOLDA24177-ND - CONN HEADER VERT 3POS .156 TINA24156-ND - CONN HEADER RTANG 3POS .156 TINA24165-ND - CONN HEADER VERT 3POS .156 TINA19920-ND - CONN HEADER RTANG 3POS .156 TINA19901-ND - CONN HEADER VERT 3POS .156 TINA19890-ND - CONN HEADER VERT 3POS .156 TINA19876-ND - CONN HEADER RTANG 3POS .156 TINA19870-ND - CONN HEADER VERT 3POS .156 TIN 644617-8-ND - CONN HEADER 8POS R/A .156 TIN647648-8-ND - CONN HEADER 8POS VERT .156 TIN644766-8-ND - CONN HEADER 8POS VERT .156 GOLD644760-8-ND - CONN HEADER 8POS VERT .156 GOLD641204-8-ND - CONN HEADER 8POS R/A .156 30GOLD644759-8-ND - CONN HEADER 8POS VERT .156 GOLD644754-8-ND - CONN HEADER 8POS R/A .156 TIN641120-8-ND - CONN HEADER 8POS STR .156 15GOLDA31693-ND - CONN HEADER RT/A .156 8POS 30AUA31682-ND - CONN HEADER 8POS .156 30 GOLDA26190-ND - CONN HEADER RT/A .156 8POS 30AUA26181-ND - CONN HEADER VERT .156 8POS 30AUA24153-ND - CONN HEADER VERT 8POS .156 TINA24182-ND - CONN HEADER VERT 8POS .156 TINA24170-ND - CONN HEADER VERT 8POS .156 TINA24161-ND - CONN HEADER RTANG 8POS .156 TINA19906-ND - CONN HEADER VERT 8POS .156 TINA1979-ND - CONN HEADER RTANG 8POS .156 TINA1969-ND - CONN HEADER RTANG 8POS .156 TINA1964-ND - CONN HEADER VERT 8POS .156 TINA1974-ND - CONN HEADER VERT 8POS .156 TIN 647481-9-ND - 09P MTA156 PLUG CONN 18AWG FTA114273-ND - CONN HEADER 9POS VERT .156 TIN644759-9-ND - CONN HEADER 9POS VERT .156 GOLD644753-9-ND - CONN HEADER 9POS VERT .156 TIN641119-9-ND - CONN HEADER 9POS VERT .156 GOLD647476-9-ND - CONN PLUG 9POS 18AWG MTA-156647143-9-ND - CONN HEADER 9POS VERT .156 GOLD644760-9-ND - CONN HEADER 9POS VERT .156 GOLD641522-9-ND - CONN PLUG 9POS 18AWG MTA-156641438-9-ND - CONN PLUG 9POS 24AWG MTA-156641436-9-ND - CONN PLUG 9POS 20AWG MTA-156647127-9-ND - CONN HEADER 9POS VERT .156 TIN641120-9-ND - CONN HEADER 9POS STR .156 15GOLDA31694-ND - CONN HEADER RT/A .156 9POS 30AUA31683-ND - CONN HEADER 9POS .156 30 GOLDA26173-ND - CONN HEADER VERT 9POS .156 TINA26191-ND - CONN HEADER RT/A .156 9POS 30AUA26182-ND - CONN HEADER VERT .156 9POS 30AUA26175-ND - CONN HEADER VERT 9POS .156 TINA19923-ND - CONN HEADER RTANG 9POS .156 TINA19907-ND - CONN HEADER VERT 9POS .156 TINA19893-ND - CONN HEADER VERT 9POS .156 TINA19879-ND - CONN HEADER RTANG 9POS .156 TINA19873-ND - CONN HEADER VERT 9POS .156 TIN 647481-6-ND - 06P MTA156 PLUG CONN 18AWG FT647476-6-ND - 06P MTA156 PLUG CONN CE 18AWGA114272-ND - CONN HEADER 7POS VERT .156 TIN641439-6-ND - CONN PLUG 6POS MTA156 26AWG BLUE641436-6-ND - CONN PLUG 6POS MTA156 20AWG YELL647143-7-ND - CONN HEADER 7POS VERT .156 GOLD644767-7-ND - CONN HEADER 7POS VERT .156 GOLD644766-7-ND - CONN HEADER 7POS VERT .156 GOLD641522-6-ND - CONN PLUG 6POS 18AWG MTA-156641210-7-ND - CONN HEADER 7POS R/A .156 30GOLD641120-7-ND - CONN HEADER 7POS VERT .156 GOLD643995-6-ND - CONN PLUG 6POS 22AWG MTA-156A114287-ND - CONN HEADER 7POS VERT .156 TINA31681-ND - CONN HEADER 7POS .156 30 GOLDA26172-ND - CONN HEADER VERT 7POS .156 TINA26180-ND - CONN HEADER VERT .156 7POS 30AUA24181-ND - CONN HEADER VERT 7POS .156 TINA24169-ND - CONN HEADER VERT 7POS .156 TINA24160-ND - CONN HEADER RTANG 7POS .156 TINA19922-ND - CONN HEADER RTANG 7POS .156 TINA19905-ND - CONN HEADER VERT 7POS .156 TINA19892-ND - CONN HEADER VERT 7POS .156 TINA19878-ND - CONN HEADER RTANG 7POS .156 TINA19872-ND - CONN HEADER VERT 7POS .156 TIN
Associated Produc A19763-ND - CONN DUST COVER 5POS CLOSEDA19743-ND - CONN STRAIN RELIEF COVER 5POS A19760-ND - CONN DUST COVER 2POS CLOSEDA19740-ND - CONN STRAIN RELIEF COVER 2POS A19764-ND - CONN DUST COVER 6POS CLOSEDA19744-ND - CONN STRAIN RELIEF COVER 6POS A19761-ND - CONN DUST COVER 3POS CLOSEDA19741-ND - CONN STRAIN RELIEF COVER 3POS A19766-ND - CONN DUST COVER 8POS CLOSEDA19746-ND - CONN STRAIN RELIEF COVER 8POS A19767-ND - CONN DUST COVER 9POS CLOSEDA19747-ND - CONN STRAIN RELIEF COVER 9POS A19765-ND - CONN DUST COVER 7POS CLOSEDA19745-ND - CONN STRAIN RELIEF COVER 7POS
