2-1445090-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-1445090-5

2-1445090-5: Descriptionconn header 5pos R/A smd 15gold; CategoryThe connector; File Size104KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1445090-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1445090-5	-	-	View	Buy Now

2-1445090-5 Overview

conn header 5pos R/A smd 15gold

2-1445090-5 Parametric

Parameter Name	Attribute value
Datasheets
1445090
RoHS Informati
2-1445090-5 Statement of Compliance
RoHS 2 Stateme
3D Model
2-1445090-5.pdf
Standard Package	645
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	5
Number of Positions Loaded	All
Pitch	0.118" (3.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	-
Mounting Type	Surface Mount, Right Angle
Terminati	Solde
Fastening Type	Locking Ram
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Col	Black
Mating Products	A30261-ND - CONN RECEPT 3MM 5POS MATE-N-LOK

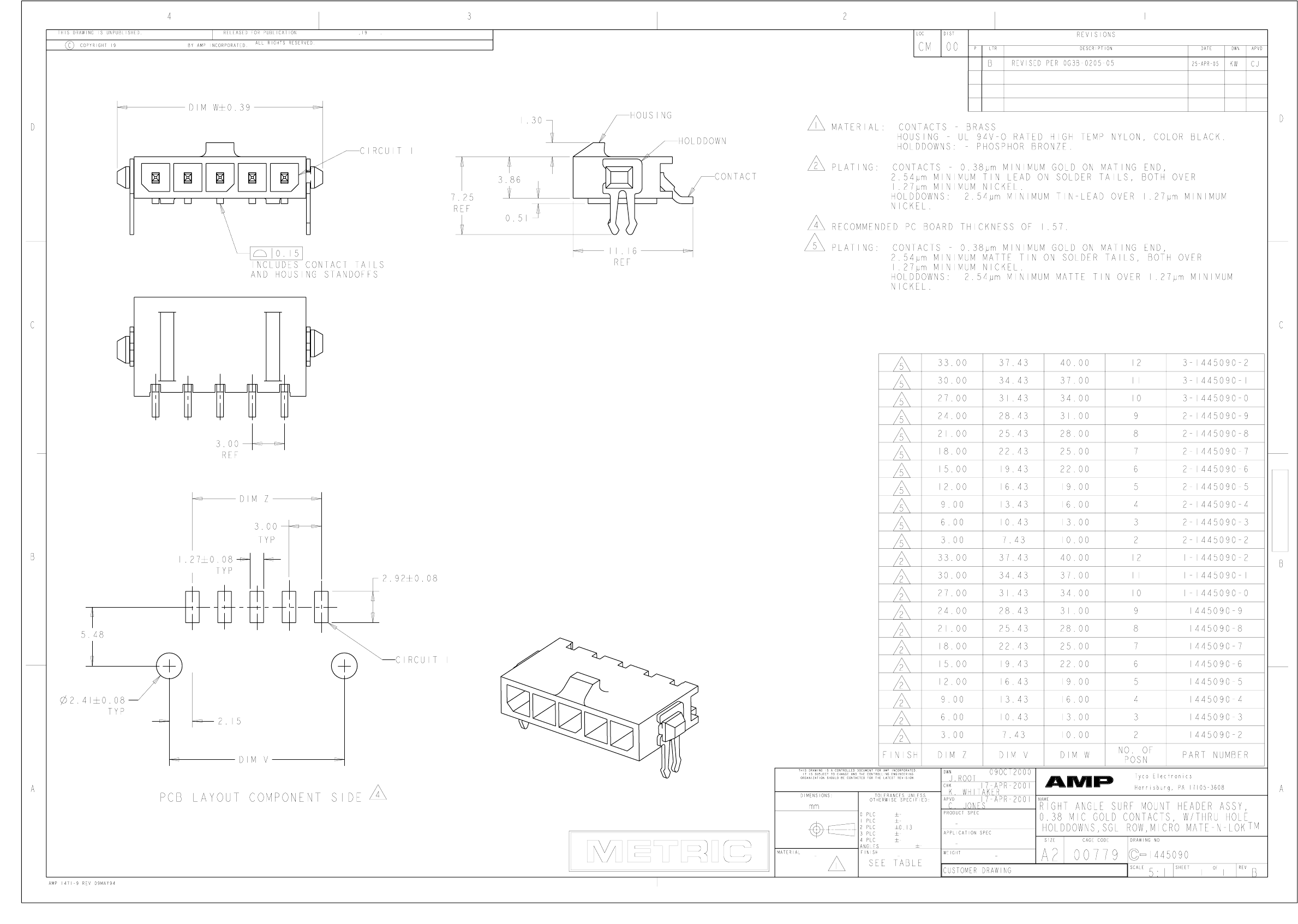

Preview

Download Datasheet

View All

2-1445090-5 Related Products

	2-1445090-5	1445090-2	1445090-3	1445090-6	1445090-5	1445090-4	1445090-8	1-1445090-0	3-1445090-2
Description	conn header 5pos R/A smd 15gold	conn header 2pos R/A 15gold smd	conn header 3pos R/A 15gold smd	conn header 6pos R/A 15gold smd	conn header 5pos R/A 15gold smd	conn header 4pos R/A 15gold smd	conn header 8pos R/A 15gold smd	conn header 10pos R/A 15gold smd	conn header 12pos R/A smd 15gold
Standard Package	645	5,160	1	5,160	5,160	5,160	5,160	1	215
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)	Tape & Reel (TR)
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	5	2	3	6	5	4	8	10	12
Number of Positions Loaded	All	All	All	All	All	All	All	All	All
Pitch	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Number of Rows	1	1	1	1	1	1	1	1	1
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black
Mating Products	A30261-ND - CONN RECEPT 3MM 5POS MATE-N-LOK	A30258-ND - CONN RECEPT 3MM 2POS MATE-N-LOK	-	A30262-ND - CONN RECEPT 3MM 6POS MATE-N-LOK	A30261-ND - CONN RECEPT 3MM 5POS MATE-N-LOK	A30260-ND - CONN RECEPT 3MM 4POS MATE-N-LOK	A30264-ND - CONN RECEPT 3MM 8POS MATE-N-LOK	-	A30268-ND - CONN RECEPT 3MM 12POS MATE-N-LOK
Other Names	-	1445090-2-NDA110971TR	A116354CT	1445090-6-NDA116357TR	1445090-5-NDA116356TR	1445090-4-NDA116355TR	1445090-8-NDA116358TR	A116341CT	-
