2-316081-2 datasheet, PDF - EEWORLD Datasheet

2-316081-2: Descriptionconn hdr 12pos R/A key-YY 15gold; CategoryThe connector; File Size72KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-316081-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-316081-2	-	-	View	Buy Now

conn hdr 12pos R/A key-YY 15gold

Parameter Name	Attribute value
Datasheets

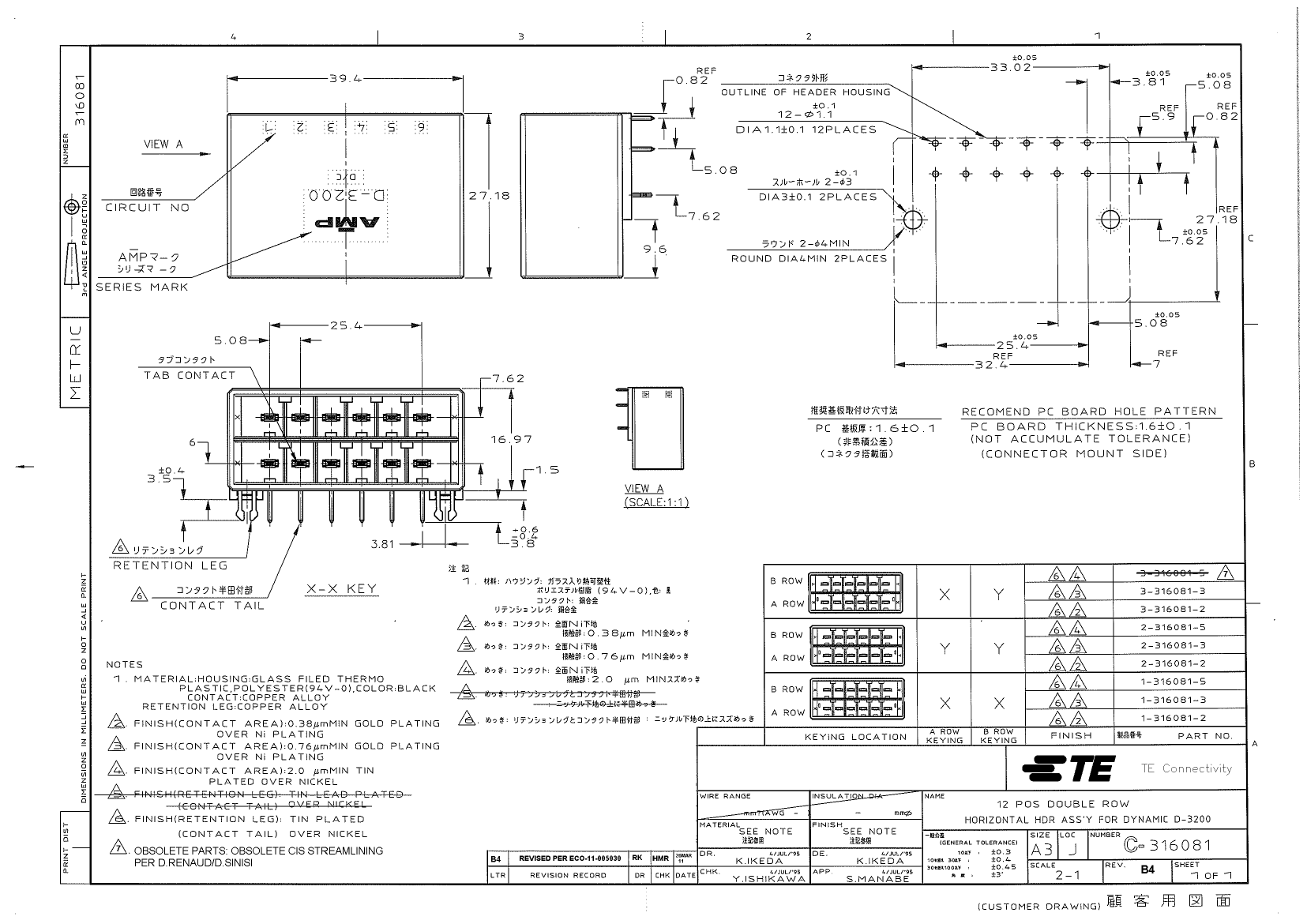

316081 Drawing
Product Photos
2-316081-2, 2-316081-3
Product Training Modules
Dynamic Series Connector Solutions
RoHS Informati
2-316081-2 Statement of Compliance
RoHS 2 Stateme
Featured Produc
AMP Dynamic Series Connectors
3D Model
2-316081-2.pdf
Standard Package	5,400
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	12
Number of Positions Loaded	All
Pitch	0.200" (5.08mm)
Number of Rows	2
Row Spacing	0.300" (7.62mm)
Contact Mating Length	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Col	Black
Mating Products	A29737-ND - CONN RCPT 5.08 12POS DUAL KEY-YY
Other Names	A29610

	2-316081-2	2-316081-5	1-316081-5	3-316081-2
Description	conn hdr 12pos R/A key-YY 15gold	conn hdr 12pos R/A key-YY tin	conn hdr 12pos R/A key-XX tin	conn hdr 12pos R/A key-XY 15gold
Standard Package	5,400	5,400	5,400	5,400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	12	12	12	12
Number of Positions Loaded	All	All	All	All
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Number of Rows	2	2	2	2
Row Spacing	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde
Features	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Ti	Ti	Gold
Contact Finish Thickness	15µin (0.38µm)	78.7µin (2.00µm)	78.7µin (2.00µm)	15µin (0.38µm)
Col	Black	Black	Black	Black
Mating Products	A29737-ND - CONN RCPT 5.08 12POS DUAL KEY-YY	A29737-ND - CONN RCPT 5.08 12POS DUAL KEY-YY	A29736-ND - CONN RCPT 5.08 12POS DUAL KEY-XX	A29738-ND - CONN RCPT 5.08 12POS DUAL KEY-XY
Other Names	A29610	A29612	A29609	A29613
