530761-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 530761-6

530761-6: Descriptionconn hdr 100POS brd edge .100 AU; CategoryThe connector; File Size106KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

530761-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	530761-6	-	-	View	Buy Now

530761-6 Overview

conn hdr 100POS brd edge .100 AU

530761-6 Parametric

Parameter Name	Attribute value
Datasheets
530761
RoHS Informati
530761-6 Statement of Compliance
3D Model

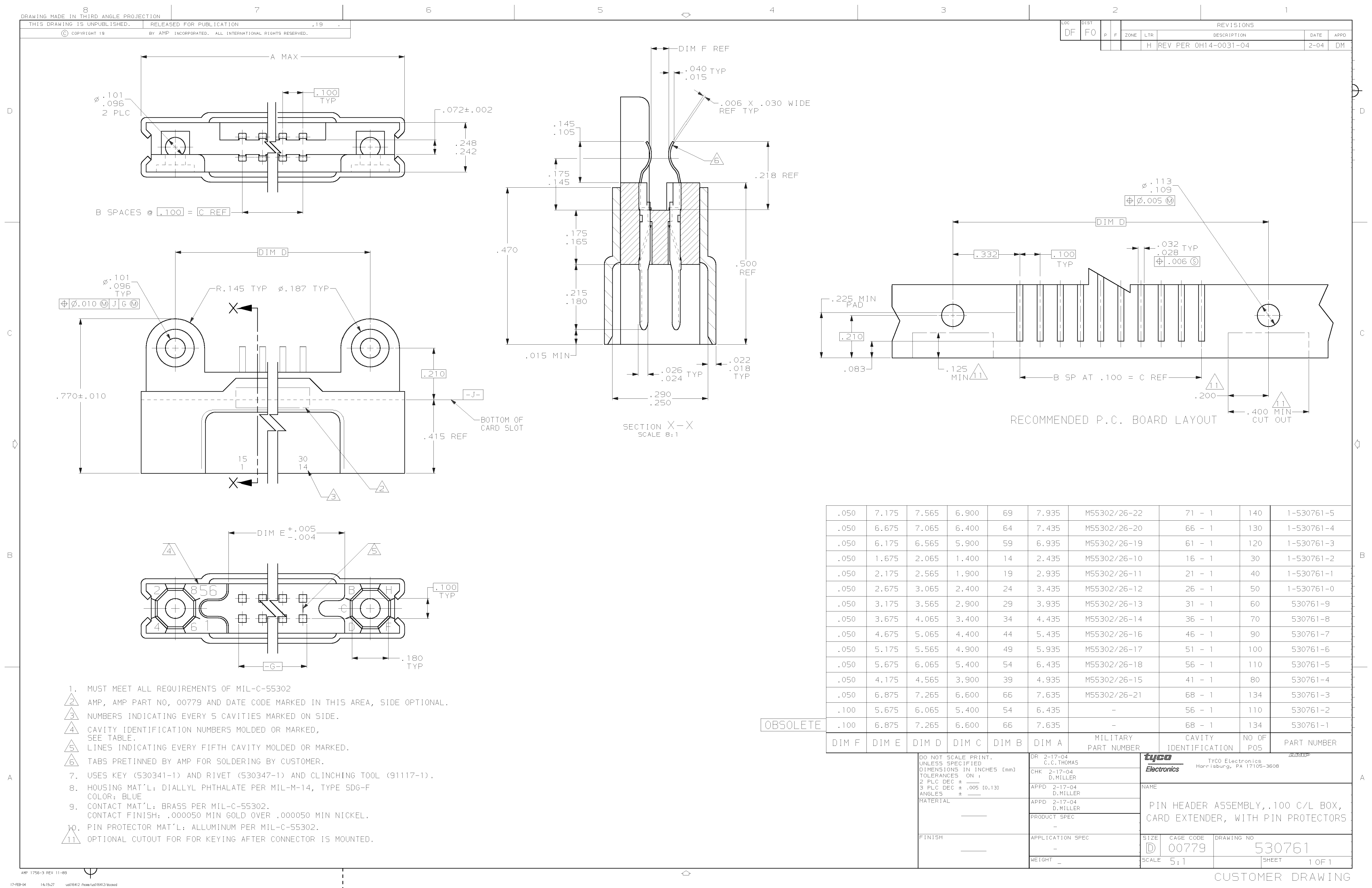

530761-6.pdf
Standard Package	90
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	100
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.180" (4.59mm)
Mounting Type	Board Edge, Straddle Mou
Terminati	Solde
Fastening Type	-
Features	Card Extende
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Col	Blue
Other Names	530761-6-NDM55302/26-17M55302/26-17-MIL

530761-6 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

530761-6 Related Products

	530761-6	530761-9	530761-4	530761-7	530761-5
Description	conn hdr 100POS brd edge .100 AU	conn hdr 60pos brd edge .100 AU	conn hdr 80pos brd edge .100 AU	conn hdr 90pos brd edge .100 AU	conn hdr 110pos brd edge .100 AU
Standard Package	90	90	90	90	90
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	100	60	80	90	110
Number of Positions Loaded	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.180" (4.59mm)	0.180" (4.59mm)	0.180" (4.59mm)	0.180" (4.59mm)	0.180" (4.59mm)
Mounting Type	Board Edge, Straddle Mou	Board Edge, Straddle Mou	Board Edge, Straddle Mou	Board Edge, Straddle Mou	Board Edge, Straddle Mou
Terminati	Solde	Solde	Solde	Solde	Solde
Features	Card Extende	Card Extende	Card Extende	Card Extende	Card Extende
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)	50µin (1.27µm)
Col	Blue	Blue	Blue	Blue	Blue
Other Names	530761-6-NDM55302/26-17M55302/26-17-MIL	530761-9-NDM55302/26-13M55302/26-13-MIL	530761-4-NDM55302/26-15M55302/26-15-MIL	530761-7-NDM55302/26-16M55302/26-16-MIL	530761-5-NDM55302/26-18M55302/26-18-MIL
