WDD15P2C9A00

Description
D Type Connector, 15 Contact(s), Male, Solder Lug Terminal, Receptacle
CategoryThe connector    The connector
File Size472KB,5 Pages
ManufacturerPositronic Industries
Download Datasheet Parametric View All

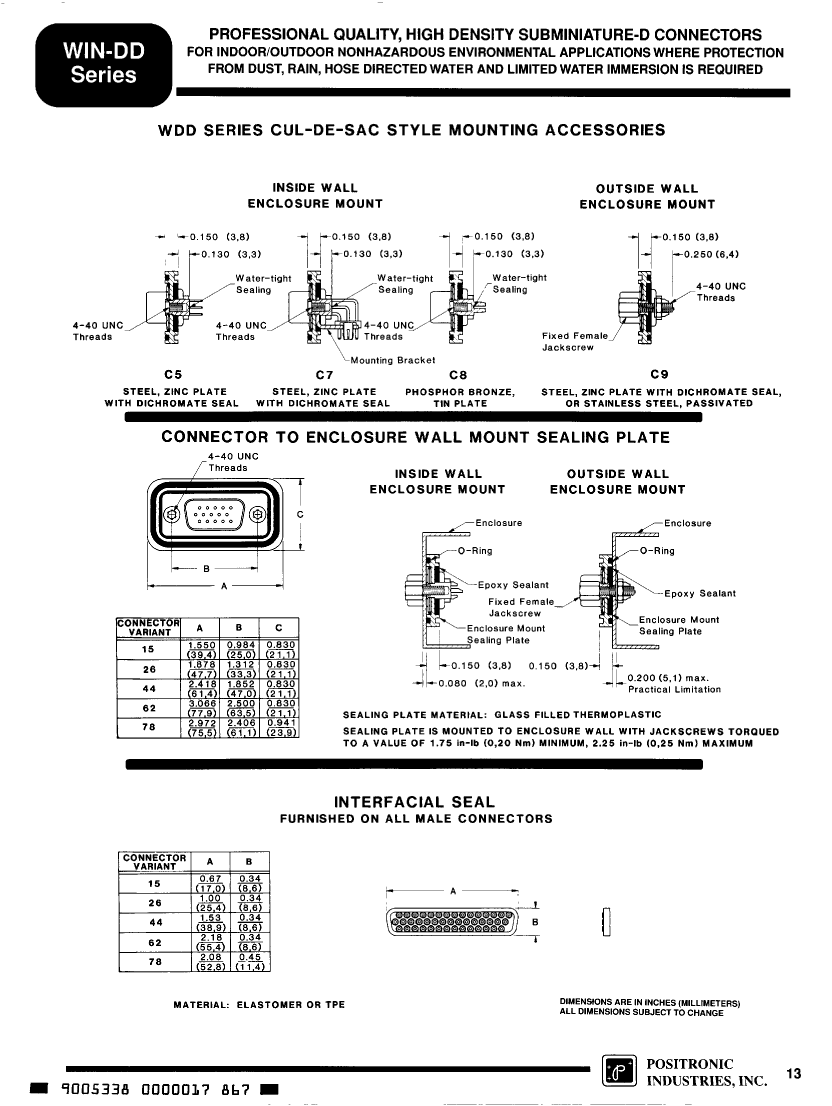

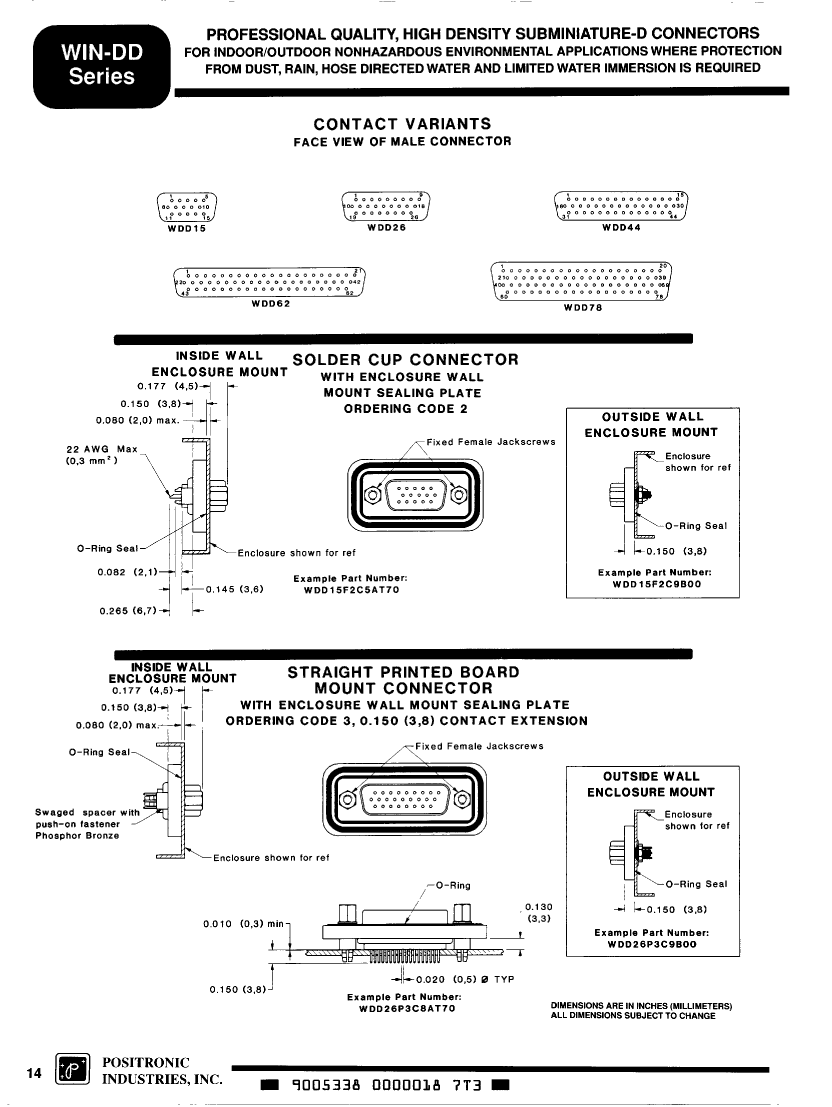

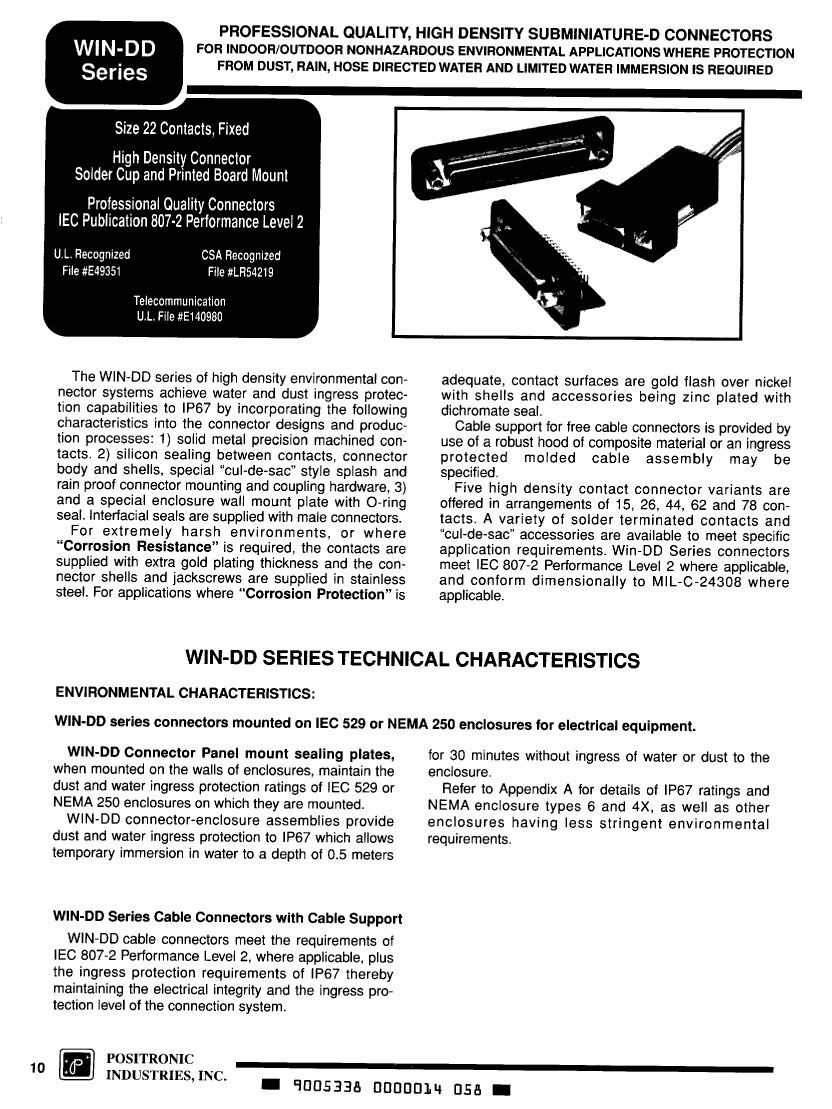

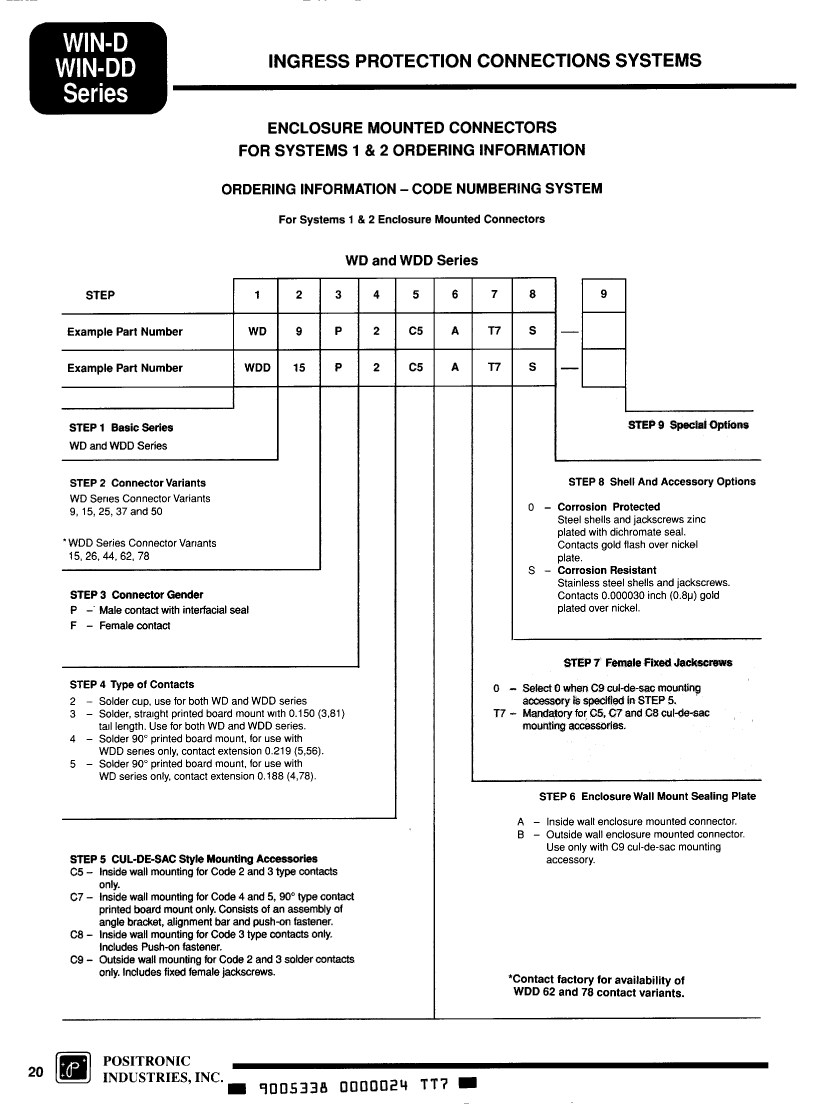

WDD15P2C9A00 Overview

D Type Connector, 15 Contact(s), Male, Solder Lug Terminal, Receptacle

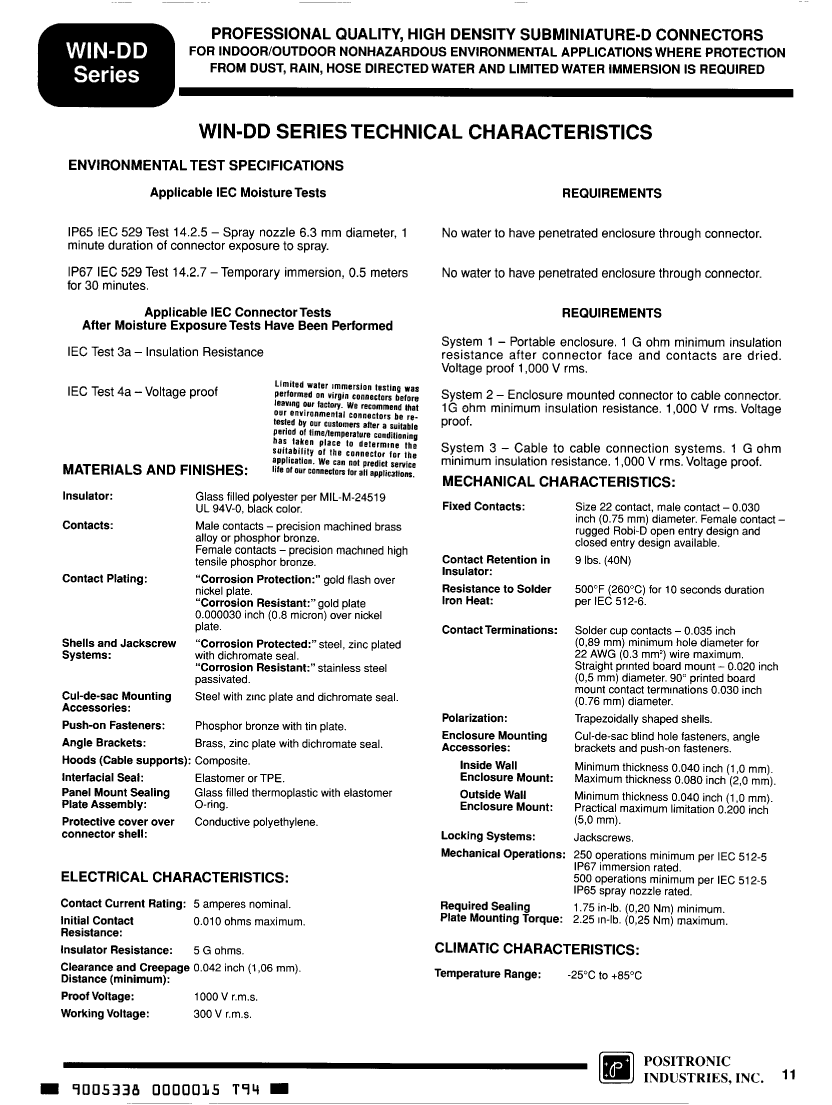

WDD15P2C9A00 Parametric

Parameter NameAttribute value
Objectid1177589645
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.83 inch
subject depth0.35 inch
body length1.55 inch
Body/casing typeRECEPTACLE
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial numberWDD
Installation option 2JACKSCREW
Installation typePANEL
Number of rows loaded3
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Plating thicknessFLASH inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceZINC
Shell materialSTEEL
Terminal length0.082 inch
Termination typeSOLDER LUG
Total number of contacts15
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
