691311700006

Description
term block hdr 6pos vert 5mm
CategoryThe connector
File Size169KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

691311700006 Online Shopping

Suppliers Part Number Price MOQ In stock
691311700006 - - View Buy Now

691311700006 Overview

term block hdr 6pos vert 5mm

691311700006 Parametric

Parameter NameAttribute value
Datasheets
6913117000xx Drawing
Product Photos
691311700006
Featured Produc
Terminal Blocks WR-TBL
3D Model
6913117000xx.pdf
691311700006.igs
691311700006.s
691311700006.wrl
Standard Package320
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Headers, Plugs and Sockets
PackagingBulk
Terminal Block TypeHeader, Male Pins, Shrouded (2 Side)
Number of Positions6
Positions Per Level6
Pitch0.197" (5.00mm)
Number of Levels1
Header OrientatiVertical
Plug Wire Entry-
TerminatiSolde
Wire Gauge-
Curre20A
Voltage300V
Mounting TypeThrough Hole
Features-
ColGree
Mating Products732-2785-ND - TERM BLOCK PLUG 6POS 90DEG 5MM732-2779-ND - TERM BLOCK PLUG 6POS STR 5MM
Associated Produc732-2848-ND - TERM BLCK CODE KEY 5/5.08/7.62MM
Other Names732-2797
1
2
3
4

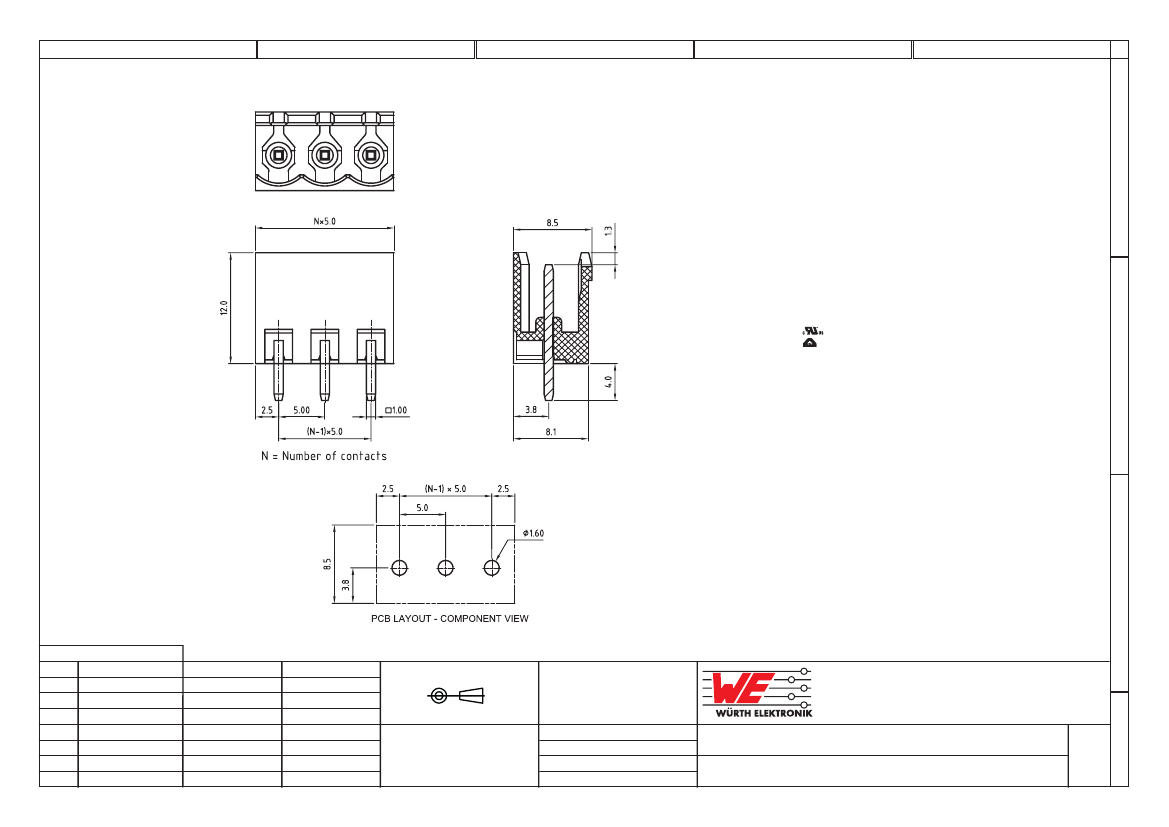

TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT: BRASS
SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
5
A
cULus
VDE
20A
20A
300VAC
300VAC
1.6KV
2.5KV
20 mOhm max
STANDARD
CERTIFIED E315414 / MODEL NUMBER 3117
CERTIFIED 40023195 / MODEL NUMBER 3117
MECHANICAL
PITCH: 5.00MM
SOLDERING: WAVE PROCESS ONLY
PACKAGING: BOX
SERIE 3117
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
13-OCT-09
04-NOV-08
DATE
STANDARD
PDF
FILE
JP
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/1
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: SERIE 3117 - 5.00MM OPEN VERTICAL PCB HEADER
WR-TBL
WERI PART NO: 691 311 700 0xx
SIZE
A4
D
