EC2920TTS-23.9616M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2920TTS-23.9616M

EC2920TTS-23.9616M: DescriptionCMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size125KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2920TTS-23.9616M Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 1.8Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

EC2920TTS-23.9616M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1251939410
Parts packaging code	SMD 5.0mm x 7.0mm
Contacts	4
Manufacturer packaging code	SMD 5.0mm x 7.0mm
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	EC29
Installation features	SURFACE MOUNT
Nominal operating frequency	23.9616 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	6 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

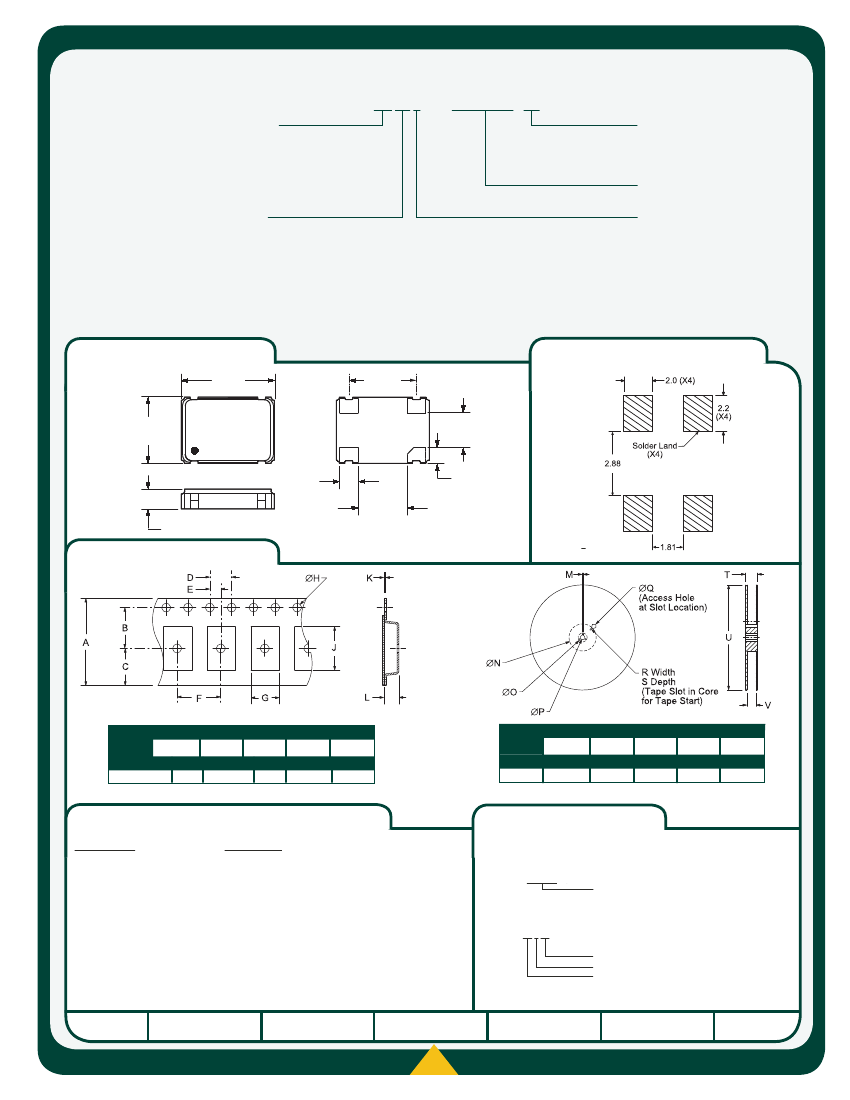

EC29

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +1.8V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

EC29

H 1.6

L 7.0

W 5.0

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Frequency Range (F

)

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance/Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

1.000MHz to 9.999MHz

10.000MHz to 34.999MHz

35.000MHz to 49.999MHz

50.000MHz to 69.999MHz

70.000MHz to 89.999MHz

90.000MHz to 109.999MHz

110.000MHz to 125.000MHz

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature

Range, Supply Voltage Change, Output Load Change,

First Year Aging at 25°C, Shock, and Vibration

= -4mA

= +4mA

1.000MHz to 39.999MHz, 10% to 90% of Waveform

40.000MHz to 79.999MHz, 10% to 90% of Waveform

80.000MHz to 125.000MHz, 10% to 90% of Waveform

at 50% of Waveform

No Connection

: >90% of V

: <10% of V

Disabled Output: High Impedance

12kHz to 20MHz offset frequency

1.000MHz to 125.000MHz

-10°C to +70°C

-40°C to +85°C

-55°C to +125°C

1.8V

±5%

3mA Maximum

4mA Maximum

8mA Maximum

9mA Maximum

11mA Maximum

12mA Maximum

25mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm

Standby Current

Start Up Time (T

)

RMS Phase Jitter
