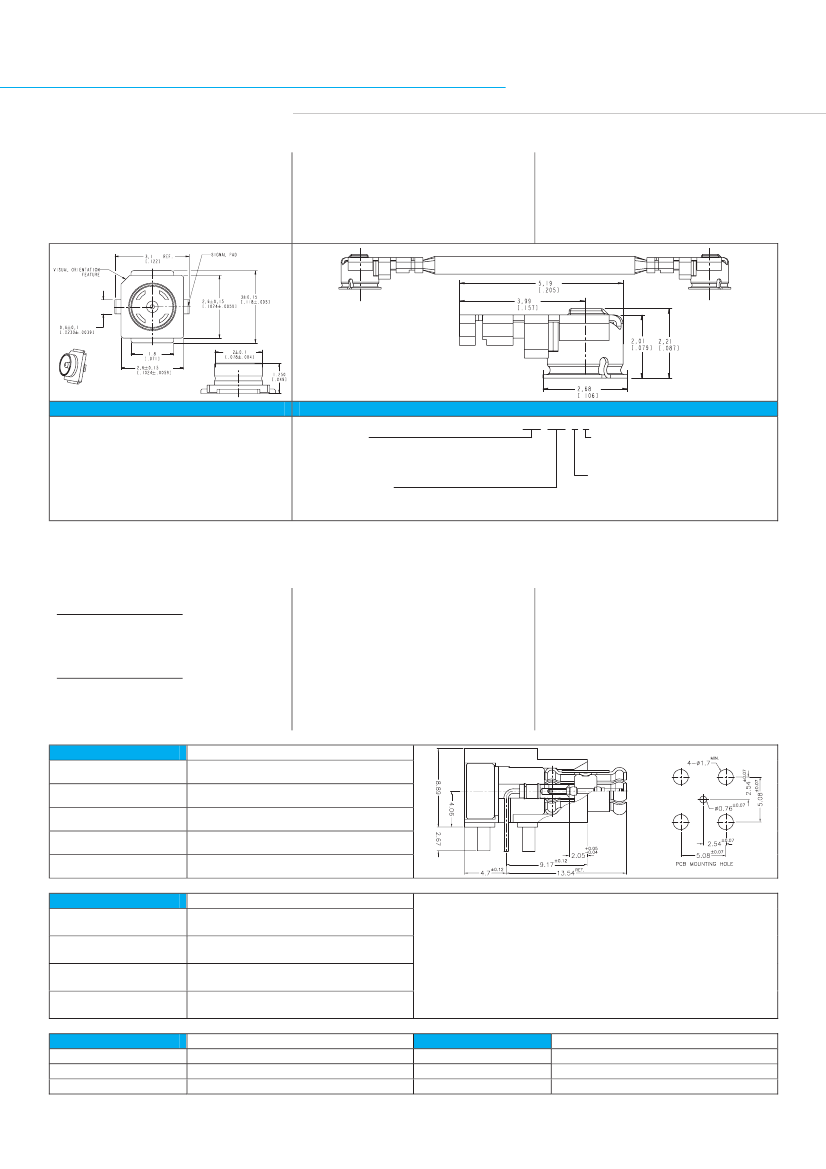

Amphenol
RF Interconnects
MHC
50Ω aka AMC Micro Coaxial Connectors
Electrical
Impedance
- 50Ω
Frequency Range - DC-6GHz
VSWR
- 1.3 max (DC-3GHz)
- 1.4 max (3~6GHz)
Features and Benefits
Snap-on/Snap-off Mating
Ultra-Low Profile
Small Foot-print 3mm x 3mm
100% Compatible with Hirose U.FL Series
Temperature
- -40°C ~ 90°C
Durability
- 30 Cycles
Mechanical
Cable Assembly Supplied Terminated
Applications
WLAN, Bluetooth, NoteBook PC, GPS,
Remote Measuring, and PDA
Cable Mount Plug
PCB Mount SMT
Part Number
MHC230
Typically 2,500/reel
CABLE OD
113
: 1.13mm OD Cable
132
: 1.32mm OD Cable
137
:for 1.37mm OD Cable
CABLE LENGTH
Length of assembly in mm e.g.
100
= 100mm
Minimum length 35mm (035)
Part Number System
MHC-231-xxx-xxx-x-x
TERMINATION
1
: One Side
2
: Both sides
CABLE COLOUR
G
: Gray Cable Terminated
B
: Black Cable Terminated
W
: White Cable
AFI
50Ω and 75
Ω
Board to Board RF Interface
Conceived specially for military and broadband applications. The AFI Interface utilizes propriety ‘Float’ technology to compensated axial (1mm)
and radial (0.8mm) misalignment.
Electrical
Impedance
Frequency Range
VSWR
RF Leakage
Power Handling
Impedance
Frequency Range
VSWR
RF Leakage
Power Handling
Plugs
Part Number
- 50Ω
- DC-6GHz
- -25dB @ 1GHz
- -70dB
- 95 Watts
- 75Ω
- DC-3GHz
- -25dB @ 1GHz
- -70dB
- 95 Watts
Description
Materials
Female Body
Female Finish
Male Body
Male Finish
Pin Contact
Pin Finish
-
Aluminum, Brass or Zinc
- Nickel
- Spring Copper Alloy
- Gold
- Beryllium Cooper
- Gold
Features and Benefits
Float Technology
In-Line or Dual-row versions available
Temperature
- -65°C ~ 165°C
Durability
- 100 Cycles
Applications
Mil/Aero
Broadband
Internet
Routers
Telecommunications
CMTS
Switch
920-123P-71P
920-132P-71P
920-137P-51S
920-140P-71A
920-153P-51P
Receptacles
Part Number
920-133J-71P
920-138J-51S
920-152J-71P
920-154J-51P
75
Ω
Straight Plug for PCB Card Edge
75
Ω
Edge Launch PCB w/Bullet Installed
50
Ω
Straight Plug Receptacle Bulkhead
75
Ω
Right Angle Plug for PCB
50
Ω
Edge Launch PCB w/Bullet Installed
Description
75
Ω
Straight Jack for PCB
50
Ω
Straight Jack Receptacle Bulkhead
75
Ω
Edge Launch PCB w/o Bullet
50
Ω
Edge Launch PCB w/o Bullet
Consult Representative for Technical Drawing
Between Series Adapters
Description
Part Number
50
Ω
Jack to MCX Plug
920-145A-51S
50
Ω
Plug to MCX Jack
920-146A-51S
75
Ω
Jack to 75
Ω
MCX Plug
920-155A-71S
RF/ARFA/KAE
Part Number
920-156A-71S
920-157A-51S
920-158A-51S
Description
75
Ω
Plug to 75
Ω
MCX Jack
50
Ω
adapter, SMA (F) to AFI w/o Bullet
50
Ω
adapter, SMA (F) to AFI w Bullet
U-31
