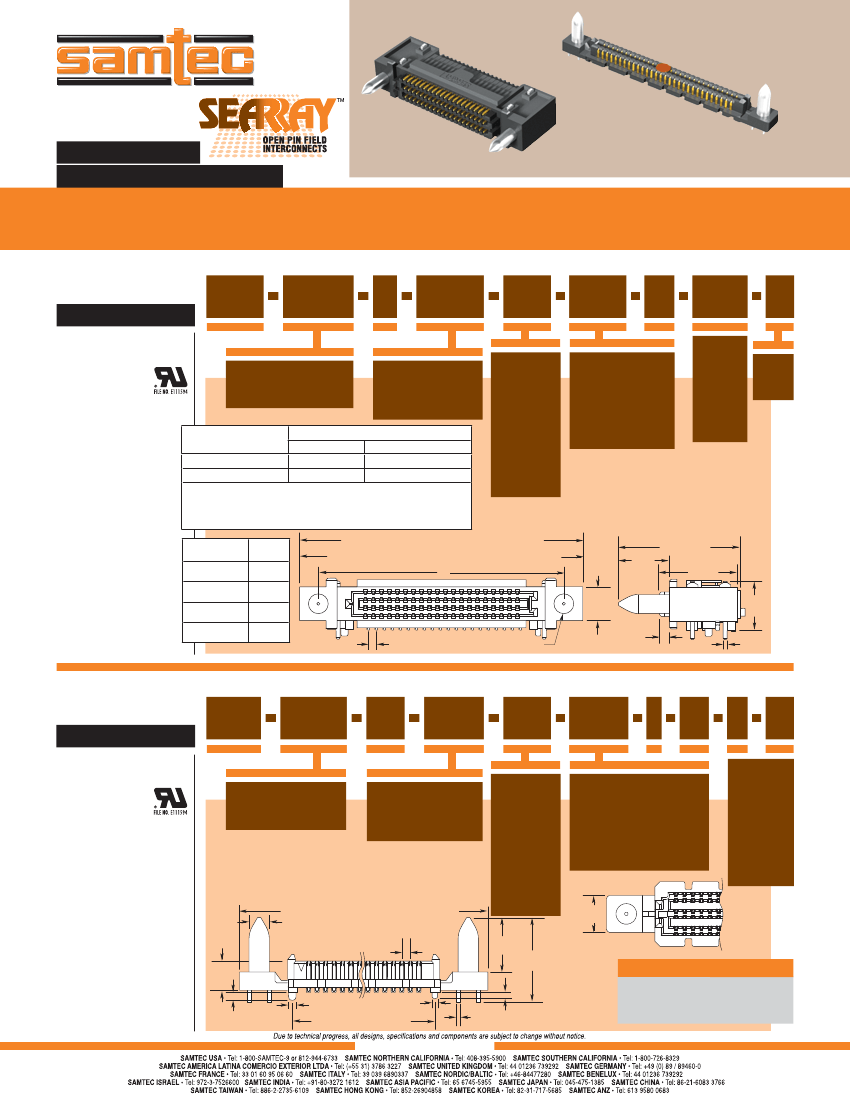

F-213-1
(1,27 mm) .050"
SEAM-RA, SEAM-GP SERIES
SEAM–30–02.0–L–04–2–A–GP–K–TR
SEAM–20–01–L–06–2–RA–GP–TR
HI-DENSITY RIGHT ANGLE OPEN PIN FIELD
Mates with:
SEAF, SEAF-RA, SEAFP
SEAM
NO. PINS
PER ROW
01
PLATING
OPTION
NO. OF
ROWS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?SEAM-RA
Insulator Material:
Black LCP
Contact Material:
Copper Alloy
Current Rating:
Testing Now!
Operating Temp Range:
-55°C to +125°C
Plating:
Au or Sn over
50µ" (1,27 µm) Ni
Contact Resistance:
19 mΩ
Working Voltage:
260 VAC
RoHS Compliant:
Yes
Lead-Free Solderable:
Yes
SOLDER
TYPE
RA
OPTION
TR
– 20, – 30,
–40, –50
SEAM-RA/SEAF-RA
–L
= 10µ" (0,25 µm)
Gold on contact area,
Matte Tin on solder tail
– 04
= Four Rows
–1
= Tin/Lead Alloy
Solder Charge
– GP
= Guide
Post
– TR
=Tape &
Reel
– 06
= Six Rows
–2
= Lead-Free
Solder Charge
–K
= Polyimide
film Pick &
Place Pad
Note:
Other Gold
Rated @ 3dB Insertion Loss
plating
options available.
with PCB effects*
Contact
PCB effects**
w/o
Samtec.
Single-Ended Signaling
5 GHz / 10 Gbps
12 GHz / 24 Gbps
Differential Pair Signaling 5.5 GHz / 11 Gbps
11 GHz / 22 Gbps
*Performance data includes effects of a non-optimized PCB.
**Test board losses de-embedded from performance data.
Complete test data available at www.samtec.com?SEAM-RA
or contact sig@samtec.com
NO. PINS
PER ROW
–20
A
(38,94)
1.533
(51,64)
2.033
(64,34)
2.533
(77,04)
3.03
– 08*
= Eight Rows
– 10*
= Ten Rows
* Note:
Fixturing required to process
eight and ten row options, see
www.samtec.com/searayfixture
(19,30) .760
(8,13)
.320
(12,32)
.485
(7,91)
.312
(1,60)
.063
(0,64)
.025
–GP= No. of positions x (1,27) .050 + (19,56) 0.77
Without –GP= No. of positions x (1,27) .050 + (11,18) 0.44
A
(5,36)
.211
(1,27)
.050
Note:
Other Gold plating
options available.
Contact Samtec.
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–30
–40
–50
(3,05) .120 DIA
Mates with:
SEAF-RA-GP
SEAM
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?SEAM
Insulator Material:
Black LCP
Contact Material:
Copper Alloy
Current Rating:
2.7 A per contact
Operating Temp Range:
-55°C to +125°C
Plating:
Au over 50µ" (1,27 µm) Ni
Contact Resistance:
5.5 mΩ
Working Voltage:
240 VAC
Mated Cycles:
100
RoHS Compliant:
Yes
Lead-Free Solderable:
Yes
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
NO. PINS
PER ROW
02.0
PLATING
OPTION
NO. OF
ROWS
SOLDER
TYPE
A
GP
K
TR
–K
– 20, – 30,
–40, –50
–L
= 10µ" (0,25 µm)
Gold on contact area,
Matte Tin on solder tail
Note:
Other Gold plating
options available.
Contact Samtec.
– 04
=Four Rows
–1
= Tin/Lead Alloy
Solder Charge
= Polyimide
film Pick &
Place Pad
– 06
=Six Rows
–2
= Lead-Free
Solder Charge
06
– TR
=Tape & Reel
(Not available
with 50
positions)
– 08
=Eight Rows
– 10
No. of positions x (1,27) .050 + (19,46) .766
(3,05) .120 DIA
(1,27)
.050
(4,60)
.181
(0,86)
(1,12) .044 DIA
.034 DIA
No. of positions x
(1,27) .050 + (3,58) .141
=Ten Rows
(8,13)
.320
(5,54)
.218
(12,65)
.498
01
ALSO AVAILABLE
• Extended Guide Post.
• Guide post Field termination kits.
Call Samtec.
(1,27)
.050
(0,51)
.020 (1,02)
SQ .040
WWW.SAMTEC.COM
