BK/C519-350MA: Descriptionfuse glass 350ma 250vac 2ag; CategoryCircuit protection; File Size182KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/C519-350MA Overview

fuse glass 350ma 250vac 2ag

BK/C519-350MA Parametric

Parameter Name	Attribute value
Datasheets
C519 Series
Product Photos
C519 Series
5x15 axial
Standard Package	100
Category	Circuit Protecti
Family	Fuses
Packaging	Bulk
Fuse Type	Cartridge, Glass
Current Rating	350mA
Voltage Rating - AC	250V
Voltage Rating - DC	-
Response Time	Slow
Package / Case	2AG, 5mm x 15mm
Mounting Type	Holde
Breaking Capacity @ Rated Voltage	35A
Melting I²	1.169
Approvals	CSA, UL
Operating Temperature	-
Col	-
Size / Dimensi	0.205" Dia x 0.571" L (5.20mm x 14.50mm)
DC Cold Resistance	1.04 Ohm
Other Names	BK-C519-350MAC519-350MA

Preview

Download Datasheet

View All

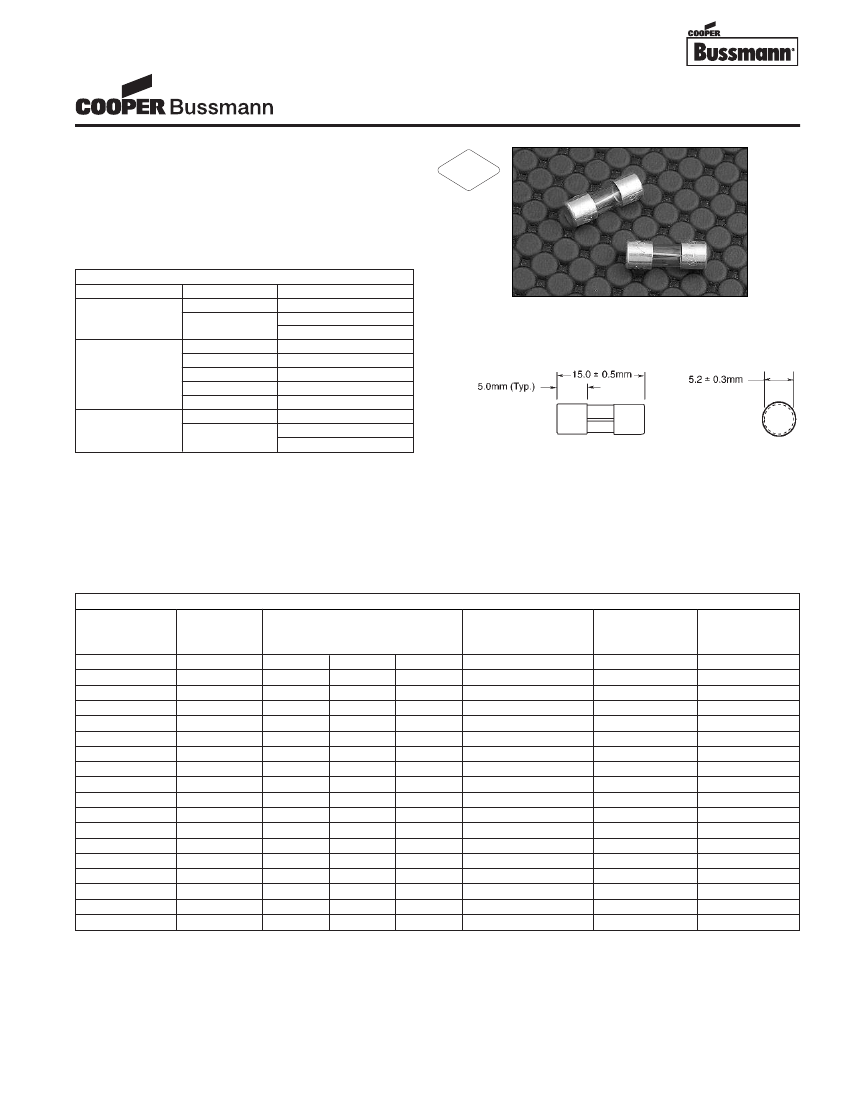

5mm x 15mm Fuses

C519 Series, Time Delay, Glass Tube

Description

• Time delay

• 5mm x 15mm physical size

• Glass tube, nickel-plated brass endcap construction

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• UL Listed product meets standard UL 248-14

ELECTRICAL CHARACTERISTICS

Rated Current

Amp Rating

Opening Time

135%

60 minutes max.

125mA - 250mA

3 seconds min.

200%

120 seconds max.

100%

4 hours min.

470mA

30 minutes max.

350mA

600mA

90 seconds max.

2A

2 seconds max.

6A

500 milliseconds max.

135%

60 minutes max.

375mA - 5A

3 seconds min.

200%

120 seconds max.

RoHS

2002/95/EC

Dimensions

Drawing Not to Scale

Agency Information

• UL Listed Card: C519 125mA-250mA and 375mA-3A

(Guide JDYX, File E19180)

• UL Recognized Card: C519 350mA, and 3.5A-7A

(Guide JDYX2, File E19180)

• CSA Certification Card: C519 125mA-250mA and

375mA-3A (Class 1422-01, LR65063)

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. C519-3-R)

SPECIFICATIONS

Product Code

C519-125mA

C519-250mA

C519-350mA

C519-375mA

C519-500mA

C519-600mA

C519-750mA

C519-1A

C519-1.25A

C519-1.5A

C519-1.6A

C519-2A

C519-2.25A

C519-2.5A

C519-3A

C519-3.5A

C519-4A

C519-5A

Voltage

Rating

AC

250V

125V

Interrupting Rating

at Rated Voltage

600V

250V

125V

-

35A

10,000A

-

35A

10,000A

25A

35A

10,000A

-

35A

10,000A

35A

10,000A

-

35A

10,000A

-

35A

10,000A

-

35A

10,000A

-

100A

10,000A

-

100A

10,000A

-

100A

10,000A

-

100A

10,000A

-

100A

10,000A

100A

10,000A

-

100A

10,000A

-

400A

-

400A

-

400A

Typical DC Cold

Resistance*

(ohms)

4.72

1.32

1.04

0.81

0.54

0.38

0.26

0.14

0.13

0.10

0.09

0.059

0.057

0.046

0.035

0.028

0.023

0.019

Typical

Melting I

2

t†

AC

0.101

0.467

1.169

1.531

2.280

6.982

9.162

14.289

22.961

31.989

31.156

60.256

97.724

78.163

80.426

149.279

233.346

354.813

Typical

Voltage

Drop (mV)‡

770

430

530

470

440

350

310

230

220

240

200

170

180

190

150

130

150

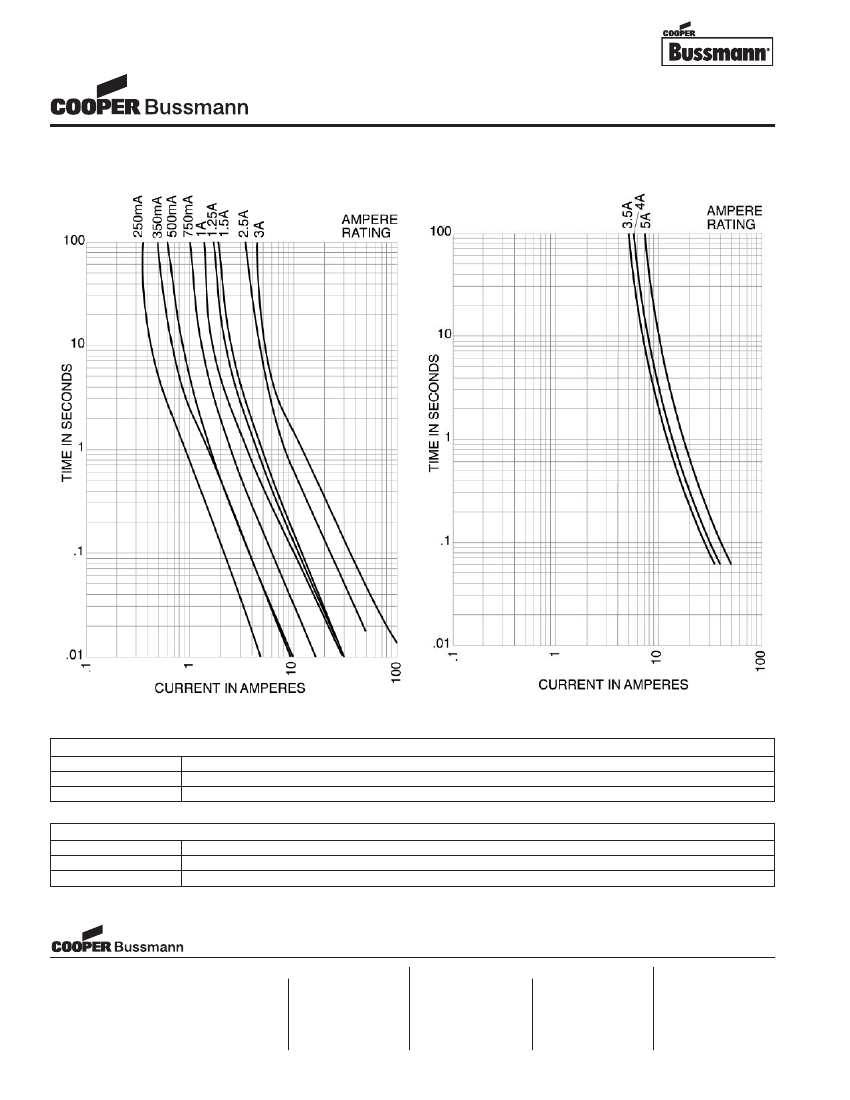

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

2

t (A

2

Sec) (Typical I

2

t at 10 times rated current)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

BK/C519-350MA Related Products

	BK/C519-350MA	BK/C519-1.6A	BK/C519-600MA	BK/C519-125MA
Description	fuse glass 350ma 250vac 2ag	fuse glass 1.6A 250vac 2ag	fuse glass 600ma 250vac 2ag	fuse glass 125ma 250vac 2ag
Standard Package	100	100	100	100
Category	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti
Family	Fuses	Fuses	Fuses	Fuses
Packaging	Bulk	Bulk	Bulk	Bulk
Fuse Type	Cartridge, Glass	Cartridge, Glass	Cartridge, Glass	Cartridge, Glass
Current Rating	350mA	1.6A	600mA	125mA
Voltage Rating - AC	250V	250V	250V	250V
Response Time	Slow	Slow	Slow	Slow
Package / Case	2AG, 5mm x 15mm	2AG, 5mm x 15mm	2AG, 5mm x 15mm	2AG, 5mm x 15mm
Mounting Type	Holde	Holde	Holde	Holde
Breaking Capacity @ Rated Voltage	35A	100A	35A	35A
Melting I²	1.169	31.156	6.982	0.101
Approvals	CSA, UL	CSA, UL	CSA, UL	CSA, UL
Size / Dimensi	0.205" Dia x 0.571" L (5.20mm x 14.50mm)	0.205" Dia x 0.571" L (5.20mm x 14.50mm)	0.205" Dia x 0.571" L (5.20mm x 14.50mm)	0.205" Dia x 0.571" L (5.20mm x 14.50mm)
DC Cold Resistance	1.04 Ohm	0.09 Ohm	0.38 Ohm	4.72 Ohm
Other Names	BK-C519-350MAC519-350MA	BK-C519-1-6AC519-1.6A	BK-C519-600MAC519-600MA	BK-C519-125MAC519-125MA
