A3012-330-010-00-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3012-330-010-00-Z

A3012-330-010-00-Z: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size287KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3012-330-010-00-Z Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Receptacle

A3012-330-010-00-Z Parametric

Parameter Name	Attribute value
Objectid	304388396
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.5 inch
subject depth	0.809 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	A3012
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

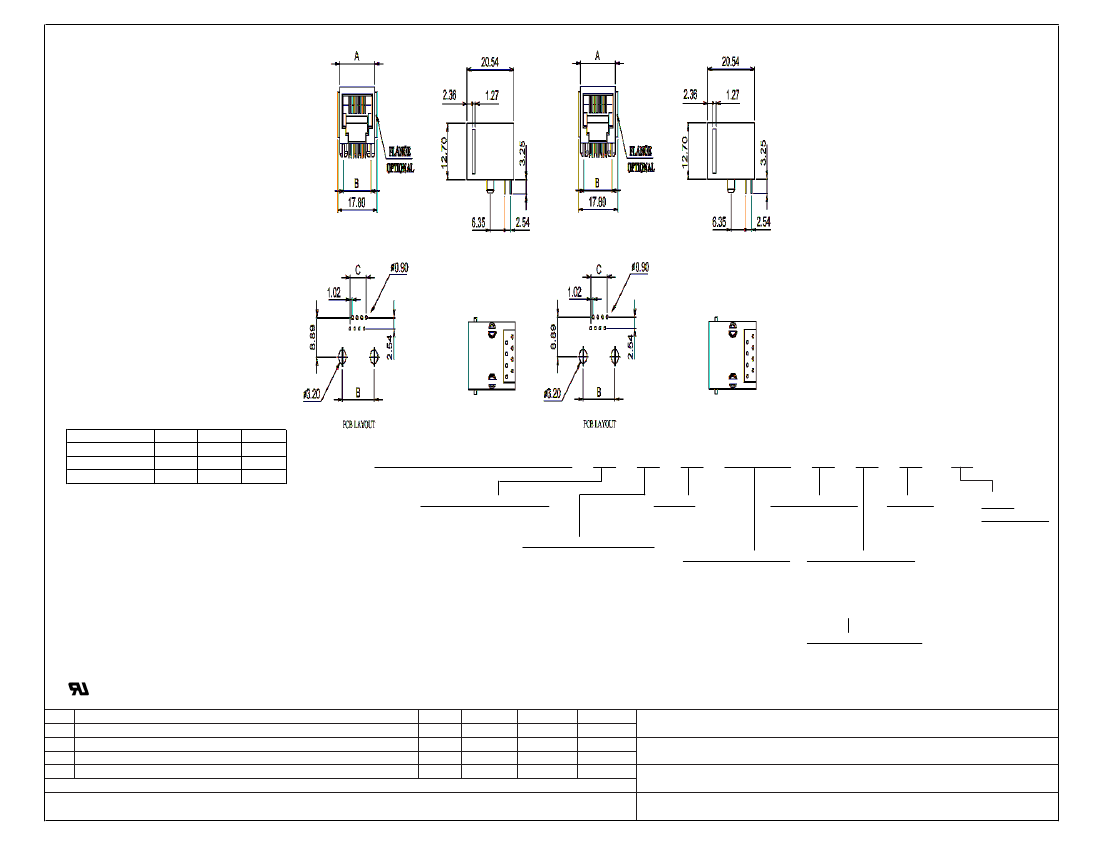

DIMENSION(mm)

NO. POSITIONS

11.26

13.21

15.24

7.62

10.16

11.43

3.81

6.35

8.89

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 1.5A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 500M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -25° C TO +90° C

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: 0.45mm PHOSPHOR BRONZE

NUMBER OF POSITIONS:

SHIELD:

KEYING OPTION:

FLANGE:

1 - 4 POS

3 - 8 POS

0 - NON SHIELDED

0 - W/ OUT KEY

0 - NO FLANGE

2 - 6 POS

1 - W/ KEY

1 - FLANGE

NUMBER OF CONTACTS:

1 - 2 CON

3 - 6 CON

NUMBER OF PORTS: PLATING OVERALL:

2 - 4 CON

4 - 8 CON

0 - FULL Au FLASH

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

MECHANICAL:

DURABILITY: 500 MATING CYCLES MIN.

E195981

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

09/15/98

08/25/08

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

PCB Jack, Right Angle, Nonshielded

DRAWING No. A3012-1

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: A 3 0 1 2

Pg: 1
