ESMH251VSN471MR30S

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount
CategoryPassive components    capacitor
File Size925KB,5 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Environmental Compliance
Download Datasheet Parametric View All

ESMH251VSN471MR30S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount

ESMH251VSN471MR30S Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid2052500595
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance470 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter30 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current2.35 mA
length30 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)250 V
ripple current1890 mA
surface mountNO
Delta tangent0.1
Terminal surfaceTin (Sn)
Terminal pitch10 mm
Terminal shapeSNAP-IN

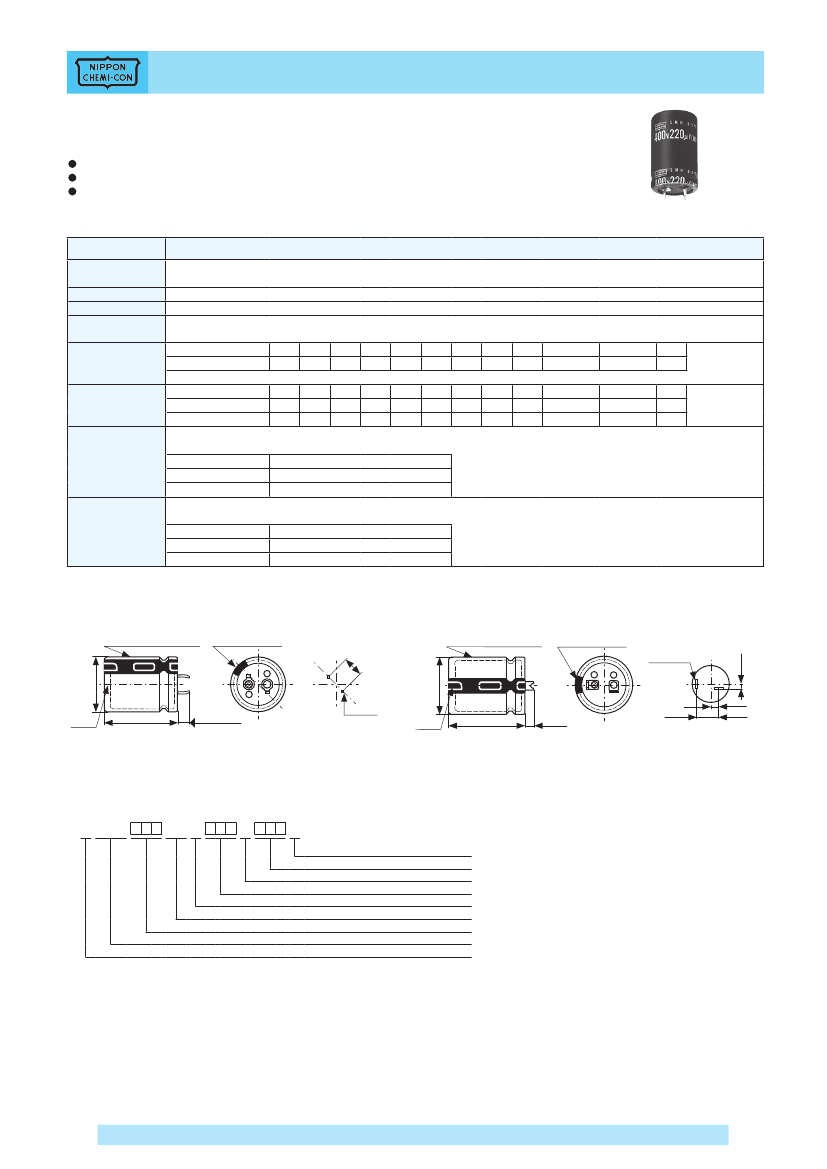

大½アルミ電解コンデンサ
Engineering Bulletin
No.585E /Dec. 2017
基板自立½・標準品
Aluminum
(85℃)
Capacitors
Electrolytic
SMM p6-24
小½化
長寿½化
Snap-ins, 85℃
SMH

SMH
◆規格表
項  目
SPECIFICATION
Series
シリーズ
標準品
RoHS2
適合品
・85℃
2,000時間保証。
with ripple current : 2,000 hours at 85℃
(リプル重畳)
・Endurance
・基板洗浄タイプではありませんのでご注意下さい。
・Non
solvent resistant type
・RoHS
Compliant
性      ½
SMH
カテゴリ温度範囲
Items
-40½+85℃
Characteristics
定格電圧範囲
6.3½100V
dc
Category
静電容量許容差
±20%
(M)
(20℃、
120Hz)
-25 to +85℃ (160 to 450V
dc
)
Temperature Range
-40 to +85℃ (6.3 to 100V
dc
)
漏れ電流
I=0.02CVまたは3mAのうちいずれか小なる値以下
Rated Voltage Range
6.3 to 450V
dc
I:漏れ電流
(μA) C:静電容量
(μF) V:定格電圧
dc
(V
(20℃、
5分値)
Capacitance Tolerance
±20%(M)
(at 20
, 120Hz)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
損失角の正接
(tanδ) 定格電圧
dc
(V
Leakage Current
tanδ
(Max.)
I=0.02CV or 3mA, whichever is smaller.
0.25 0.20 0.15 0.15 0.15
0.60 0.50 0.40 0.30
(20℃、
120Hz)
Where, I : Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V)
(at 20
after 5 minutes)
定格電圧
dc
(V
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
温度特性
Dissipation
6.3V 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 315 to 400V 450V
インピーダンス比 Z
Factor
/Z
Rated voltage (V
dc
)
4
(-25℃) (+20℃)
4
4
3
3
2
2
2
2
(tanδ)
tanδ (Max.)
0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15
0.10 *
0.15
0.15
右表の値以下
Z
(-40℃) (+20℃)
/Z
15
15
15
10
8
6
6
5
5
(120Hz)
(at 20
, 120Hz)
* : 0.15 for
φ
D=35mm
耐久性
85℃において定格電圧を超えない範囲で規定の定格リプル電流を重畳して2,000時間電圧印加後、
20℃に復帰させ測定を行なったとき、
Low Temperature
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 315 to 400V 450V
下記を満足すること
Characteristics
Z(-25°C)/Z(+20°C)
4
4
4
3
3
2
2
2
2
4
4
8
静電容量変化率
初期値の±20%以内
(Max. Impedance Ratio)
(at 120Hz)
Z(-40°C)/Z(+20°C)
15
15
15
10
8
6
6
5
5
-
-
-
損失角の正接
初期規格値の200%以下
Endurance
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
漏れ電流
初期規格値以下
ripple current is applied (the peak voltage shall not exceed the
高温無負荷特性
85℃において電圧を印加せず1,000時間放½後、20℃に復帰させ試験前処理
rated voltage) for 2,000 hours at 85℃ .
(JIS C 5101-4 4.1項)
の後、
測定を行なったとき、
下記を
Capacitance change
±20% of the initial value
満足すること
D.F. (tanδ)
初期値の±20%以内
the initial specified value
200% of
静電容量変化率
The initial specified value
損失角の正接
Leakage current
初期規格値の150%以下
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
漏れ電流
初期規格値以下
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
±20% of the initial value
D.F.
150% of the initial specified value
◆寸法図(CE692
½)
[mm½
(tanδ)
Leakage current
The initial specified value
端子コード:VS
(φ 22 ½φ 35)
:標準品
端子コード:LI(φ 35)
φD+1以下
φD+1以下
Terminal Code : LI (
φ35
)
Sleeve(PET : Black)
φ
D+1max.
L±2
4.5±1
φ
D+1max.
圧力弁
(注2)
圧力弁
(注2)
(注1)
※φ 35 品は、3.5 ± 0.5 となります。
Vent
(注 2)標準仕様は「樹脂板無し」とする。
*
φ
D=35mm : 3.5±0.5mm
L±2
* 4.0±0.5
+
-
+
(注 1)陰極端子のリベット部は網目刻印とする。
-
2-φ2
Vent
L±2
4.5±1
5±0.5
14.2±1
◆品番½系
1
2
3
4
E SMH
A A A
V S N
A A A
M
A A A
S
1
2
3
4
5
5
The standard
1
design has
6
no plastic disc.
6
7
8
9
10
1
12 13
14
15 1
17
18
設計コード
サイズコード
6 7
8 9
10
11 12 13
14
15 16 17
18
VS N
M
S
許容差コード
容量コード
(例 820μF→821, 3,300μF→332)
補助端子コード
Supplement code
端子コード(VS, LI)
Size code
電圧コード
(例 6.3V→6R3, 63V→630, 100V→101)
Capacitance tolerance code
シリーズコード
Capacitance code(ex. 820μF:821, 3,300μF:332)
½品分類
Dummy terminal code
PART NUMBERING SYSTEM
E SMH
品番コードの詳細は
「品番の表し方
(基板自立½)をご参照下さい。
Voltage code(ex. 6.3V:6R3, 63V:630, 315V:3B1)
Terminal code(VS,LI)
Series code
Category
Product specifications in this bulletin are subject to change without notice.Request our product specifications before purchase and/or use.
Please use our products based on the information contained in this bulletin and product specifications.
記載内容は予告なく変更する場合があります。ご購入、ご½用の際は½社の納入仕様書をご要求下さい。本カタログと納入仕様書の記載内容に基づいてご½用下さい。
NIPPON CHEMI-CON CORPORATION
6-39
1871
CAT. No. 1001U
4.2±0.5
Sleeve(PET : Black)
Negative mark
4.0±0.5 (注1)
L±2
PC board pin-out
(View from Solder side)
2-φ2
10
Negative mark
PC board pin-out
(View from Solder side)
5±0.5
2─1.2×6
14.2±1
4.2±0.5
(はんだ面側)
DIMENSIONS[mm]
Terminal Code : VS (
φ22
to
φ35
)
:Standard
10
スリーブ
(PET:ブラック)
プリント基板穴
スリーブ
(PET:ブラック)
プリント基板穴
(はんだ面側)
2-1.2×6
1
