BCLB-2-3055-0000-W datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BCLB-2-3055-0000-W

BCLB-2-3055-0000-W: DescriptionVisible LED,; CategoryLED optoelectronic/LED photoelectric; File Size391KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric View All

BCLB-2-3055-0000-W Overview

Visible LED,

BCLB-2-3055-0000-W Parametric

Parameter Name	Attribute value
Objectid	145128543245
Reach Compliance Code	compliant
YTEOL	7.65
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	2 V
Nominal luminous intensity	400.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	4.27 mm
method of packing	BULK
peak wavelength	590 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
perspective	30 deg

Preview

Download Datasheet

View All

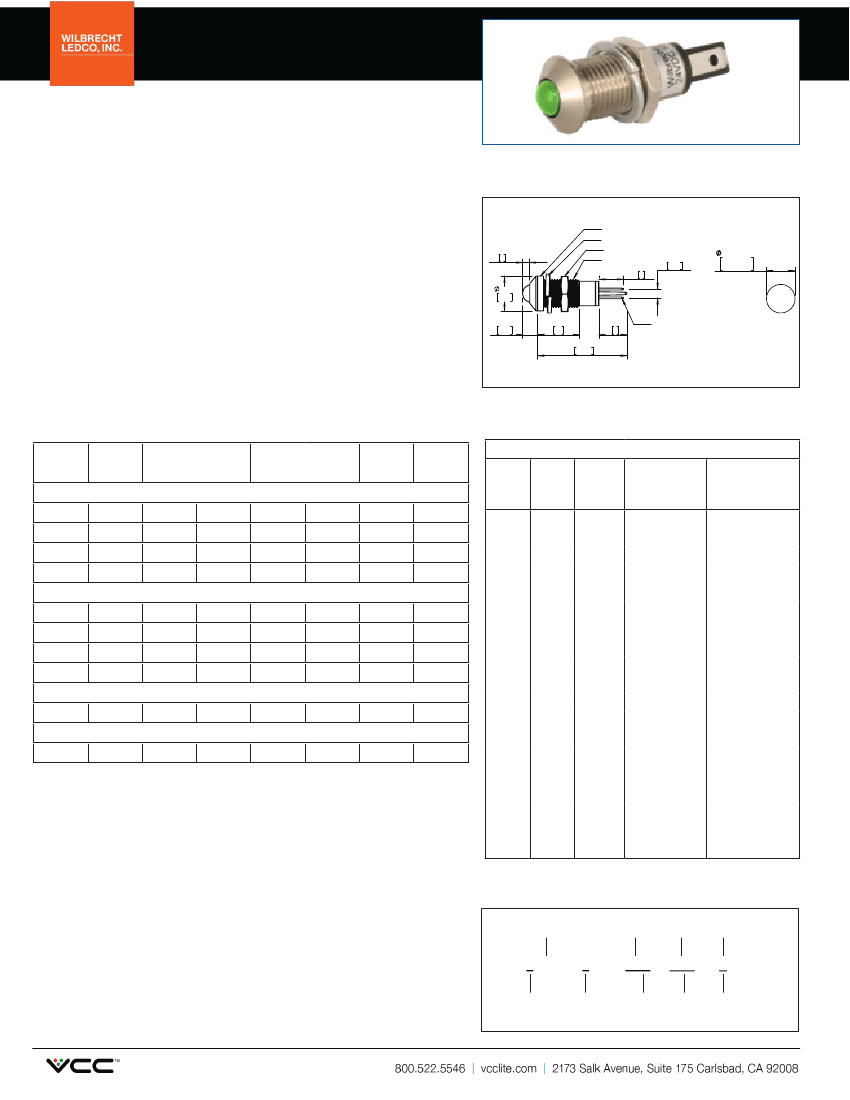

CCLB/BCLB T1 3/4

Panel Mount Reflector LED

Special Features

• Sealed against moisture and dust – gasket option and IP67 sealing

available

• Optional internal resistor for 5V-48VDC

• Resistant to shock and vibration

• Solder lug/faston termination for fast, easy installation

• New longer threads for thicker panels

5mm Panel Mount LED Assemblies

Package Dimensions

GASKET (W AND I OPTION)

WASHER

0,079

HEX NUT

M8x0.75 THREAD

0,276

0,098

2,50

+0,004

0,319 0,000

+0,10

8,10 0

Specifications

• Mounting hole: 0.319” +.004/-.000” (8.10 mm +0.10/-0.00 mm)

• Termination: 24AWG UL1061 6.0” ( 152.4mm) red(anode) and

black(cathode) leads stripped .250” (6.35mm) standard or 2.8 x 5.0mm

fastons ( gold faston = anode and silver faston = cathode)

• Housing: Chrome-plated brass housing or black matte finish

• Maximum panel thickness: .354” (9.0mm)

• Mounting torque: 20 ± 2 in-lb ( 2.26 ± 0.23 N-mm )

0,390

9,91

0,168

4,27

0,472

1,000

25,41

0,315

AMP FASTON 2.8x0.5

All dimensions are in inches (mm)

Electrical and Optical Characteristics (TA = 25°C)

LED

Part #

Color

Luminous

Intensity (mcd)

Typ. @ I

(mA)

Typ. @ I

(mA)

Viewing

Angle

Peak

Wavelength

(nm)

Resistor Chart

OPERATING SPECIFICATIONS

Resistor

Value

Code

0000

9900

9928

9901

9902

Voltage

Current

(mA)

10 or 20

4870

4530

1500

1300

1100

953

511

357

150

2610

2320

2210

1910

1000

715

Resistor Value

(Ohms)

Green,Yellow

Red, Bicolor LED

None

332

121

Resistor Value

(Ohms)

Blue,

White LED

Not Available

ULTRA BRIGHT – DAYLIGHT READABLE

3056

3055

3054

3060

Red

Yellow

Green

Orange

400.0

300.0

600.0

1.9

2.0

3.2

2.1

30°

660

590

520

610

SUPER ULTRA BRIGHT

3036

3046

3047

3048

BLUE

3057

WHITE

3061

White

27000.0

3.2

15°

N/A

Blue

640.0

3.3

20°

468

Red

Green

Amber

2800.0

900.0

5490.0

1300.0

1.85

1.9

3.2

2.02

20°

30°

20°

30°

660

626

520

592

9903

9904

9905

9906

9907

9922

9908

9909

9910

9911

9923

9933

9912

9913

How To Order

LED

Series

LED

Specifications

Resistor

Code Options

xCLB

C= Nickel Finish

B = Black Matte

xxxx

See

LED

Chart

xxxx

See

Resistor

Chart

S=Standard

W=Gasket Seal

I=IP67 (leads only)

Leads=1

Fastons=2

Recommended Resources

Machine tool lighting short circuit protection circuit

Excellent performance portable amplifier

Sensor alarm circuit

Anti-stop vibration circuit

CD player equipped with automatic playback circuit

4-tube transmitter schematic diagram
