MULTILAYER CERAMIC BALUN
FOR WLAN IEEE 802.11b/g (2.4GHz ISM Band)
Product Specification
1
QUICK REFERENCE DATA
Specifications
Frequency Range
Unbalanced Impedance
Balanced Impedance
Unbalanced port V.S.W.R.
(Return Loss)
Insertion Loss
Phase Difference
Amplitude Difference
Dimension
2400-2500 MHz
50 Ohm
50 Ohm
2.0 (Max)
10dB (Min)
1.2 dB (Max) at 25 Deg. C
1.5 dB (Max) at -25 ~ +85 Deg. C
180
±10
degree
1 dB (Max)
1.6 x 0.8 x 0.65 mm
Special Environmental Concerns- Green Products Design: Termination is lead free (Pb free)
and packing materials can be re-cycled
1
All the technical data and information contained herein are subject to change without prior notice
—
►
1
2
3
15
th
, Mar 2005
7
th
, July 2005
1608/2.4GHz 50-50ohm
Multilayer Ceramic Balun
BY /
½定者
CHECK
CBA4711715002454K
—
►
—
►
S.U.Hong
SUPER /
原圖編號
C.T. Lee
TLL.SH
/
共頁
12
PAGE/
頁
2
SH nr.
190
—
►
—
►
4
5
DATE /
日期
7th, July 2005
`
Frequency Characteristics (I)

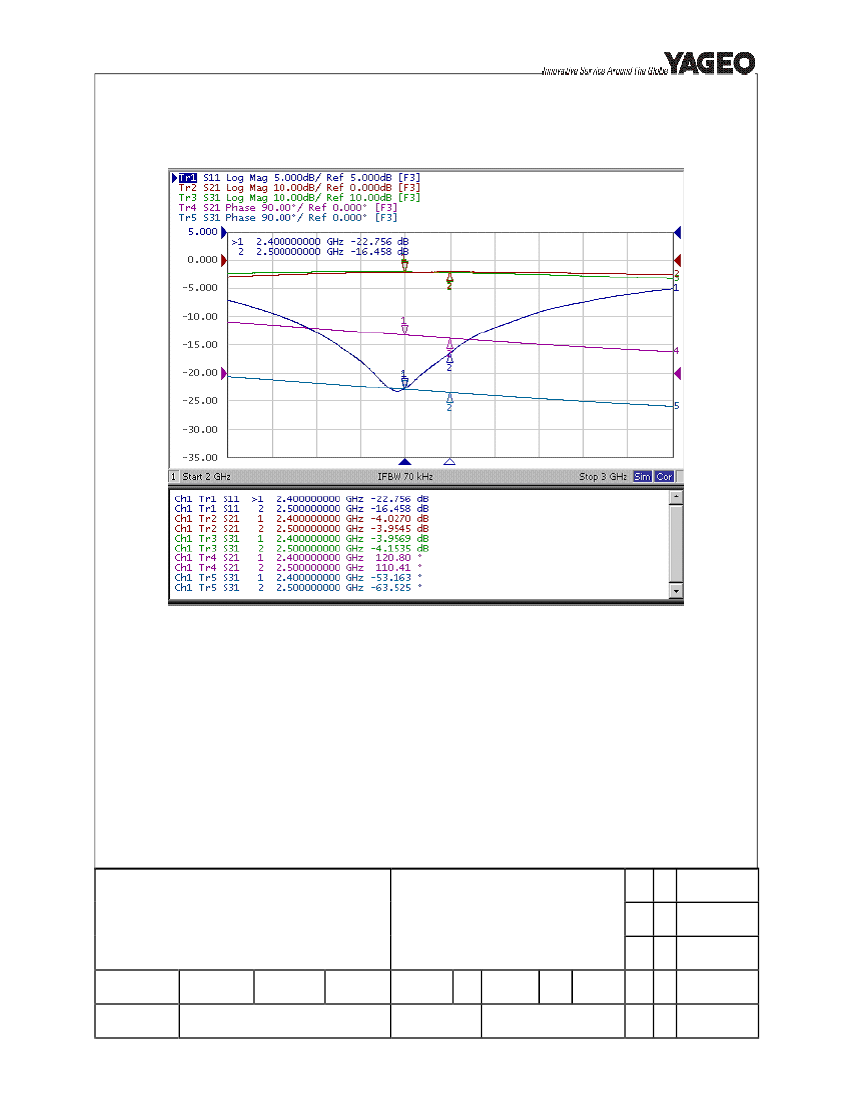

S11, S21, S31 Measured on Agilent E5071A Network Analyzer
—
►
