REVISION
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR OR
COMMUNICATED TO A THIRD PARTY WITHOUT THE
EXPRESS WRITTEN PERMISSION OF AN OFFICER OF
QUALTEK ELECTRONICS.
33.9 ± 0.5
29.7 ± 0.5
REV.
DESCRIPTION
DATE
APPROVED
102.8 ± 1.0
83.5 ± 0.5
34.5 ± 0.4
NOTES:
1.
2.
3.
RATING: 15A 250VAC
COLOR: BLACK
TERMINAL I.D.:
A. GROUND TERMINAL: #8-32 BRASS SCREW GREEN
B. LINE WIRES TERMINAL: #8-32 BRASS SCREWS BLACK
APPROVALS: UL/cUL LISTED
ROHS COMPLIANT
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
Q-622

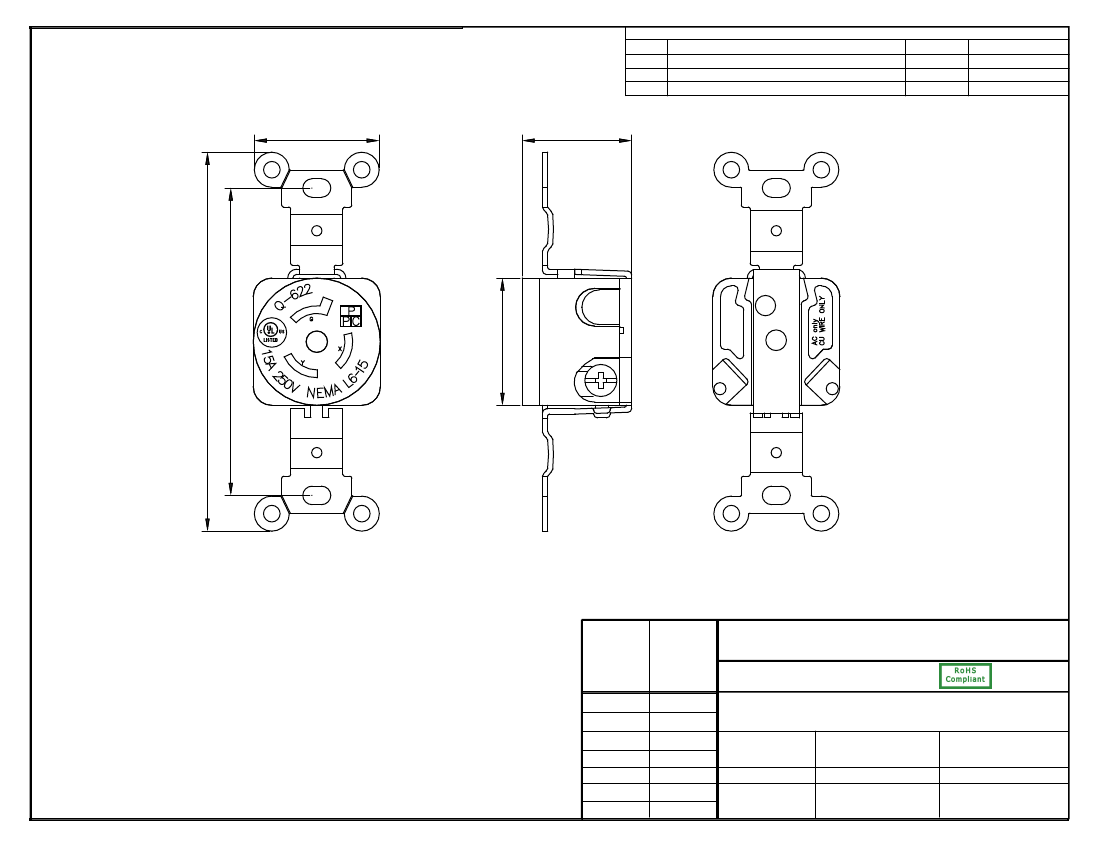

NEMA L6-15R LOCKING RECEPTACLE
UNIT: mm
4.
5.
Drawn / Date
R.Nuti
08-25-09
Checked / Date
08-25-09
Approved / Date
LY / 08-25-09
