FRS3A ........ FRS3M
3 Amp. Surface Mounted Glass Passivated Fast Recovery Rectifier
Dimensions in mm.
CASE:
SMC/DO-214AB
Voltage
50 to 1000 V
Current
3.0 A
®
7.8
± 0.3
1.25
± 0.25
1.25
± 0.25
Week code
•
Glass passivated junction
•
High current capability
•
The plastic material carries U/L 94 V-0
•
Low profile package
•
Easy pick and place
•
High temperature soldering 260 ºC 10 sec
2.8
7.2
Year code
Type No. Closs
Standard soldering pad
MECHANICAL DATA
Terminals: Solder plated, solderable per IEC 68-2-20.
Standard Packaging: 8 mm. tape (EIA-RS-481).
Weight: 1.12 g.
Maximum Ratings and Electrical Characteristics at 25 ºC
FRS3A
FRS3B
J2
FRS3D FRS3G FRS3J FRS3K FRS3M
J3
J4
J5
J6
J7
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
j
R
th (j-l)
R
th (j-a)
T
j -
T
stg
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Forward current at T
L
= 75 ºC
J1
50
35
50
100
70
100
200
140
200
400
280
400
3A
100 A
1.3 V
10 µA
250µ A
600
420
600
800
560
800
1000
700
1000
8.3 ms. peak forward surge current
(Jedec Method)
Maximum Instantaneous Forward
Voltage at 3.0 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25 ºC
Ta = 125 ºC
150 ns
Maximum Reverse Recovery Time (0.5/1/0.25A)
Typical Junction Capacitance (1MHz; -4V)
Typical Thermal Resistance
(5x5 mm
2
x 130 µ Copper Area)
Operating Junction and Storage
Temperature Range
250 ns
60 pF
15 ºC/W
50 ºC/W
300 ns
-55 to + 150 ºC
Jun - 03
FRS3

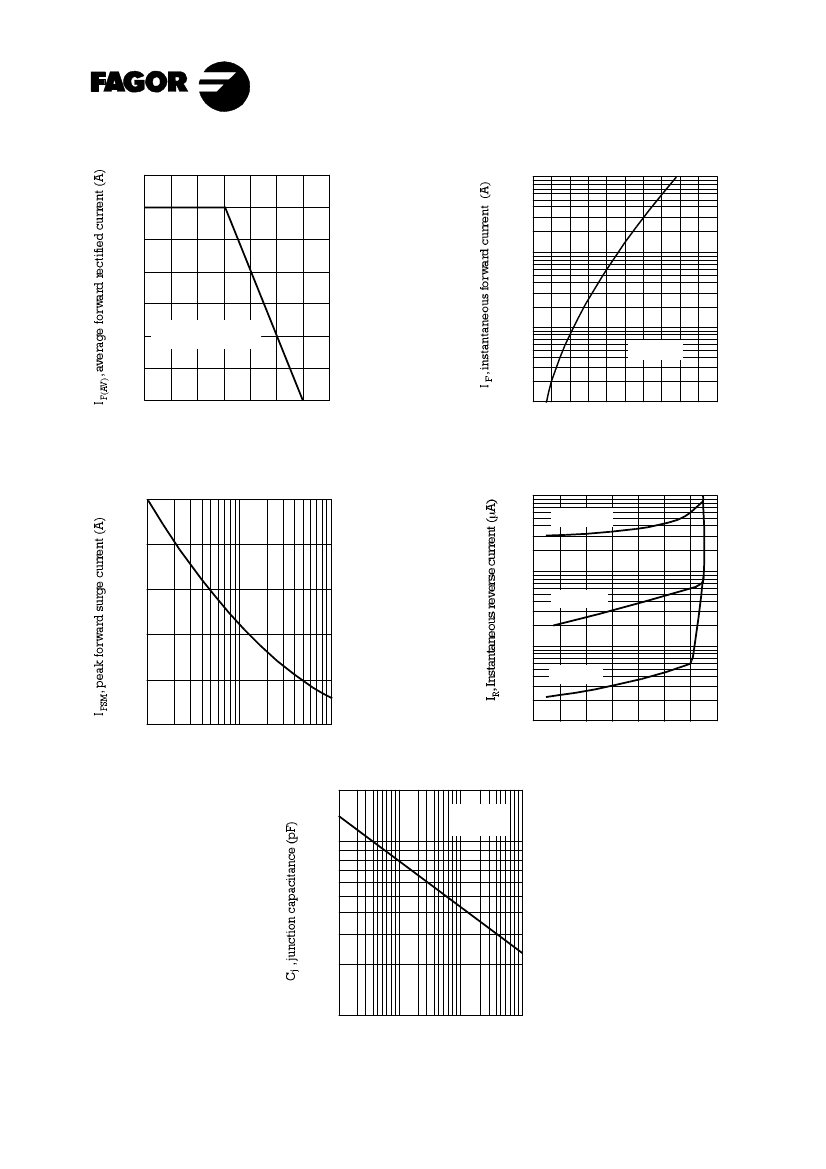

Rating And Characteristic Curves
FORWARD CURRENT DERATING CURVE
TYPICAL FORWARD CHARACTERISTIC
10
3
2
1
2
0.2
1
8x8 mm
2
x 130
µ
Thick Copper pad Areas
0.1
T j = 25 ºC
0
0
25
50
75 100 125 150 175
Lead temperature (ºC)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
100
0.01
0.6
0.8
1
1.2
1.4
1.6
V
F
, instantaneous forward
voltage (V)
TYPICAL REVERSE CHARACTERISTIC
10
T j = 125 ºC
80
1
60
T j = 75 ºC
40
0.1
20
0.01
1
2 4
6
10
20
40
100
TYPICAL JUNCTION
CAPACITANCE
T j = 25 ºC
f = 1 MHz
T j = 25 ºC
0
Number of cycles at 60 Hz
20
40
60
80 100 120
Percent of rated peak
reverse voltage, %
100
40
20
10
0.1
0.4 1.0
4 10
40 100
V
R
, reverse voltage (V)
Jun - 03
