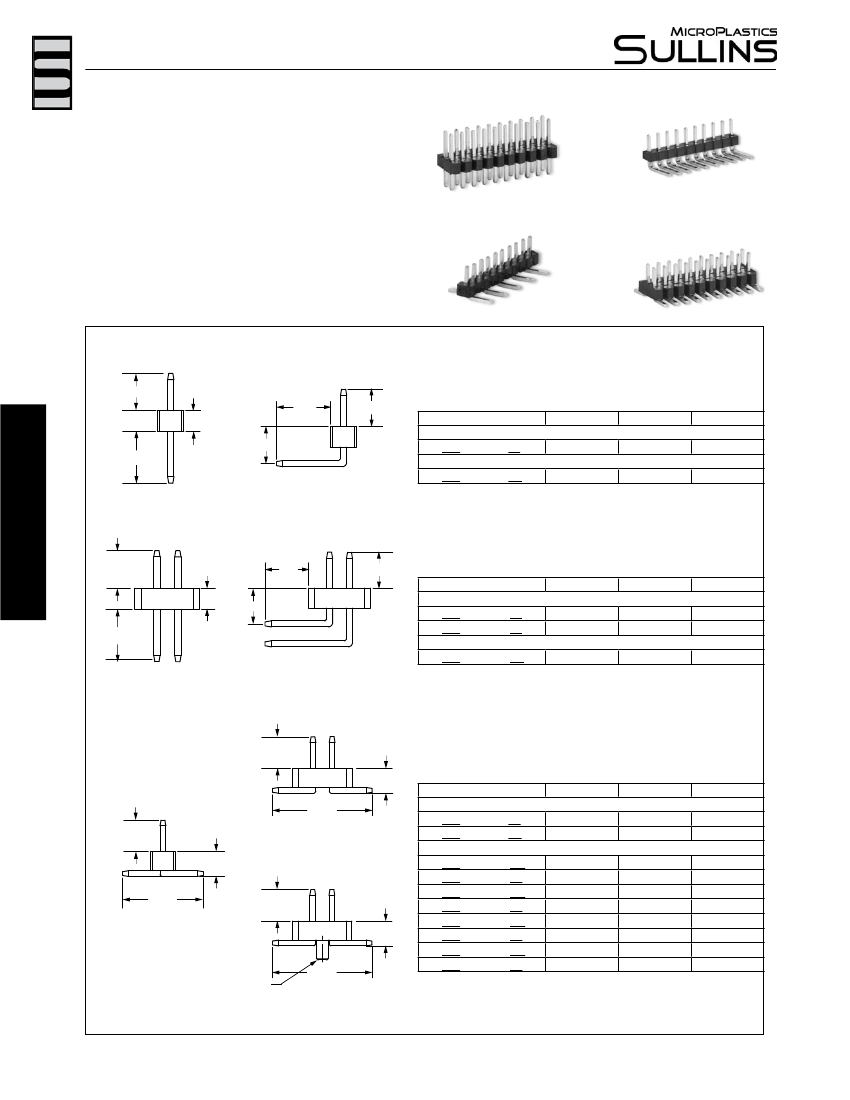

Sullins Headers
1.00 mm [.039”] Male Headers, Straight, Right Angle, SMT
SPECIFICATIONS
• 1 amp current rating
• UL Flammability Rating: 94V-0
• Insulator Material: Black LCP
• Contact Material: Phosphor Bronze
• Insulator Resistance: 1000 Mega OHMS Min.
• Contact Resistance: 20 Milli OHMS Max.
• Dielectric Withstanding: AC 300V
• Operating Temperature: -40
0
C to +125
0
C
• Processing Temperature: 260
0
C for 10 seconds Max.
• Mates with Female SFM series
TERMINATION TYPE
HEAD
TAIL
A
A
HEAD
EXAMPLE P/N
SINGLE ROW
HEAD
TAIL
STRAIGHT TERMINATION
SMH100-LPPE-S10-ST-BK
1.80 [.071”]
2.50 [.098”]
RIGHT ANGLE TERMINATION
SMH100-LPPE-S10-RA-BK
1.80 [.071”]
2.60 [.102”]
A
1.00 [.039”]
1.80 [.071”]
Sullins Headers
TAIL
Straight, (ST)
Right Angle, (RA)
HEAD
A
TAIL
A
HEAD
EXAMPLE P/N
DUAL ROW
HEAD
TAIL
STRAIGHT TERMINATIONS
SMH100-LPPE-D10-ST-BK
1.80 [.071”]
2.50 [.098”]
SMH150-LPPE-D10-ST-BK
1.80 [.071”]
2.50 [.098”]
RIGHT ANGLE TERMINATION
SMH100-LPPE-D10-RA-BK
1.80 [.071”]
2.60 [.102”]
A
1.00 [.039”]
1.50 [.059”]
1.80 [.071”]
TAIL
Straight, (ST)
Right Angle, (RA)
HEAD
SURFACE MOUNT TERMINATIONS
A
TAIL
HEAD
A
TAIL
SMT, (SC) or (SD)
A
SMT Without Guide Posts, (SM)
EXAMPLE P/N
SMH100-LPPE-S10-SC-BK
SMH100-LPPE-S10-SD-BK
SMH101-LPPE-D10-SM-BK
SMH101-LPPE-D10-SP-BK
SMH102-LPPE-D10-SM-BK
SMH102-LPPE-D10-SP-BK
SMH151-LPPE-D10-SM-BK
SMH151-LPPE-D10-SP-BK
SMH152-LPPE-D10-SM-BK
SMH152-LPPE-D10-SP-BK
HEAD
SINGLE ROW
1.65 [.065”]
1.65 [.065”]
DUAL ROW
1.65 [.065”]
1.65 [.065”]
1.90 [.075”]
1.90 [.075”]
1.65 [.065”]
1.65 [.065”]
1.90 [.075”]
1.90 [.075”]
TAIL
4.20 [.165”]
4.20 [.165”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
5.20 [.205”]
A
1.30 [.051”]
1.30 [.051”]
1.30 [.051”]
1.30 [.051”]
1.30 [.051”]
1.30 [.051”]
1.80 [.071”]
1.80 [.071”]
1.80 [.071”]
1.80 [.071”]
HEAD
TAIL
Ø .60[.024"]
SMT With Guide Posts, (SP)
12
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Headers
1.00 mm [.039”] Male Headers, Straight, Right Angle, SMT

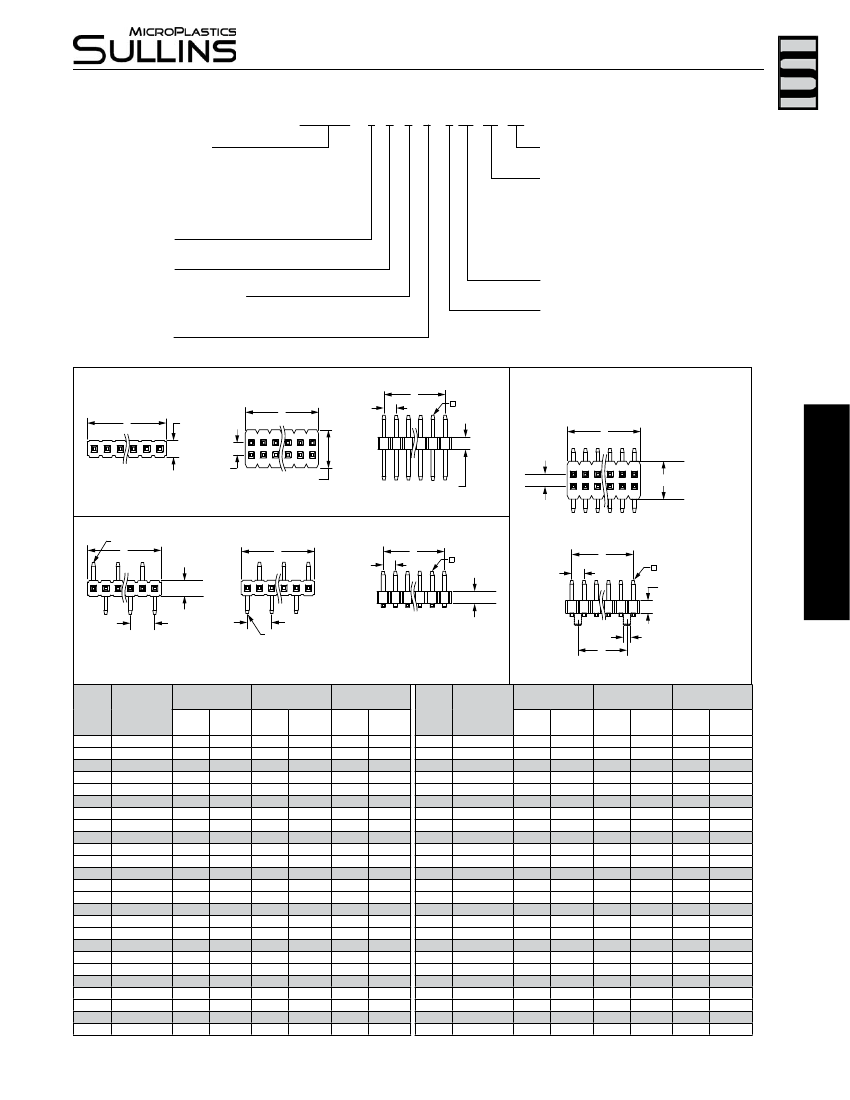

PART NUMBER OPTIONS
SMH100 - L P P E - S 10 - ST - BK
COLOR
BK = Black
TERMINATION TYPE (See Opposite Page)
ST = Straight (1 & 2 Row)
RA = Right Angle (1 & 2 Row)
SC = Surface Mount, Standard (1 Row)
SD = Surface Mount, Opposite Bend,
Applicable on Even pin Counts (1 Row)
SM = Surface Mount without Guide Posts (2 Row)
SP = Surface Mount with Guide Posts (2 Row)
NUMBER OF CONTACT POSITIONS (Pins per Row)
02 thru 50
NUMBER OF ROWS
S = Single Row
D = Dual Row
SERIES (See Opposite Page)
SMH100 = 1.00 mm [.039”] Profile, 1.80 mm [.071”] Head Height
SMH101 = 1.00 mm [.039”] Profile, 1.65 mm [.065”] Head Height
SMH102 = 1.00 mm [.039”] Profile, 1.90 mm [.075”] Head Height
SMH150 = 1.50 mm [.059”] Profile, 1.80 mm [.071”] Head Height
SMH151 = 1.50 mm [.059”] Profile, 1.65 mm [.065”] Head Height
SMH152 = 1.50 mm [.059”] Profile, 1.90 mm [.075”] Head Height
HOUSING MATERIAL
L = LCP
CONTACT MATERIAL
P = Phosphor Bronze
CONTACT FINISH - RoHS Compliant
P = Gold Flash Overall
S = 10u” Gold Overall
CONTACT CENTERS
E = 1.00 mm [.039” ]
DIMENSIONS
STRAIGHT (SHOWN) & RIGHT ANGLE
B
B
1.27
[.050"]
1.00
[.039"]
A
0.30[.012"]
B
SURFACE MOUNT, DUAL ROW
Sullins Headers
1.00
[.039"]
SINGLE ROW
3.10[.122"]
DUAL ROW
SMH100 = 1.00[.039"]
SMH150 = 1.50[.059"],
(SMH150 Dual Straight Only)
1.00[.039"]
3.10[.122"]
SURFACE MOUNT, SINGLE ROW
PIN 1
B
B
1.00
[.039"]
1.27[.050"]
1.00[.039"]
2.00[.079"]
(SC)
STANDARD
2.00[.079"]
PIN 1
C
OPTIONAL GUIDE POST
REQUIRES (SP) TERMINATION TYPE
A
0.30[.012"]
1.00[.039"]
A
0.30[.012"]
SMH10_ = 1.00[.039"]
SMH15_ = 1.50[.059"]
2x Ø 0.60[.024"]
(SD)
OPPOSITE BEND,
APPLICABLE ON EVEN PIN COUNTS
Posi-
tions
Number of
Contacts
Single/Dual
DIMENSION
A
mm
[Inches]
DIMENSION
B
mm
[Inches]
0.079
0.118
0.157
0.197
0.236
0.276
0.315
0.354
0.394
0.433
0.472
0.512
0.551
0.591
0.630
0.669
0.709
0.748
0.787
0.827
0.866
0.906
0.945
0.984
DIMENSION
C
mm
N/A
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
[Inches]
N/A
0.039
0.079
0.118
0.157
0.197
0.236
0.276
0.315
0.354
0.394
0.433
0.472
0.512
0.551
0.591
0.630
0.669
0.709
0.748
0.787
0.827
0.866
0.906
Posi-
tions
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Number of
Contacts
Single/Dual
26/52
27/54
28/56
29/58
30/60
31/62
32/64
33/66
34/68
35/70
36/72
37/74
38/76
39/78
40/80
41/82
42/84
43/86
44/88
45/90
46/92
47/94
48/96
49/98
50/100
DIMENSION
A
mm
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
40.00
41.00
42.00
43.00
44.00
45.00
46.00
47.00
48.00
49.00
[Inches]
0.984
1.024
1.063
1.102
1.142
1.181
1.220
1.260
1.299
1.339
1.378
1.417
1.457
1.496
1.535
1.575
1.614
1.654
1.693
1.732
1.772
1.811
1.850
1.890
1.929
DIMENSION
B
mm
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
40.00
41.00
42.00
43.00
44.00
45.00
46.00
47.00
48.00
49.00
50.00
[Inches]
1.024
1.063
1.102
1.142
1.181
1.220
1.260
1.299
1.339
1.378
1.417
1.457
1.496
1.535
1.575
1.614
1.654
1.693
1.732
1.772
1.811
1.850
1.890
1.929
1.969
DIMENSION
C
mm
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
40.00
41.00
42.00
43.00
44.00
45.00
46.00
47.00
48.00
[Inches]
0.945
0.984
1.024
1.063
1.102
1.142
1.181
1.220
1.260
1.299
1.339
1.378
1.417
1.457
1.496
1.535
1.575
1.614
1.654
1.693
1.732
1.772
1.811
1.850
1.890
02*
02/04
1.00
0.039
2.00
03
03/06
2.00
0.079
3.00
04
04/08
3.00
0.118
4.00
05
05/10
4.00
0.157
5.00
06
06/12
5.00
0.197
6.00
07
07/14
6.00
0.236
7.00
08
08/16
7.00
0.276
8.00
09
09/18
8.00
0.315
9.00
10
10/20
9.00
0.354 10.00
11
11/22
10.00
0.394 11.00
12
12/24
11.00
0.433 12.00
13
13/26
12.00
0.472 13.00
14
14/28
13.00
0.512 14.00
15
15/30
14.00
0.551 15.00
16
16/32
15.00
0.591 16.00
17
17/34
16.00
0.630 17.00
18
18/36
17.00
0.669 18.00
19
19/38
18.00
0.709 19.00
20
20/40
19.00
0.748 20.00
21
21/42
20.00
0.787 21.00
22
22/44
21.00
0.827 22.00
23
23/46
22.00
0.866 23.00
24
24/48
23.00
0.906 24.00
25
25/50
24.00
0.945 25.00
* Position 2 not available with Guide posts.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
13
