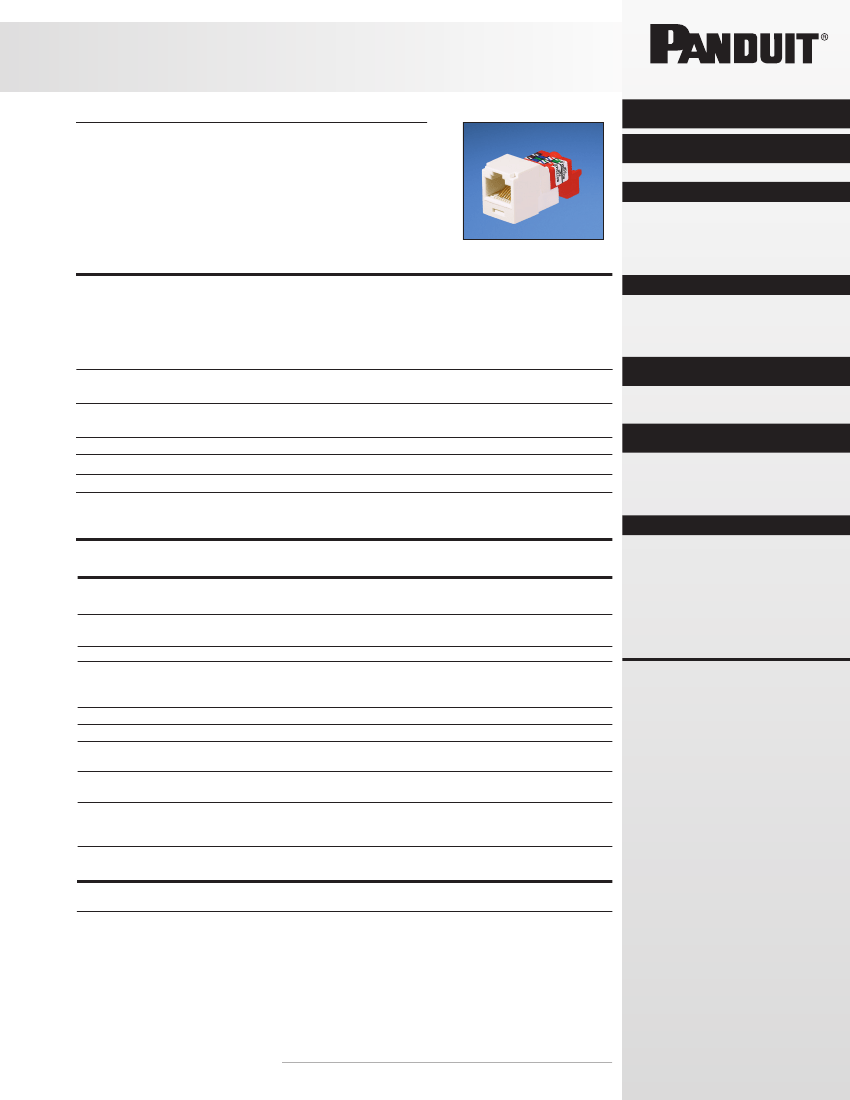

Mini-Com
®
TX5e
™
UTP Jack Module
specifications
Category 5e/Class D, 8-position, UTP jack module shall terminate
solid, 4-pair, 24 – 22 AWG, 100 ohm unshielded twisted pair
cable and shall not require use of a punchdown tool. UTP jack
modules shall use a forward motion termination method to optimize
performance by maintaining cable pair geometry while eliminating
conductor untwist. The termination cap shall be color-coded red to
designate Category 5e performance and shall include a universal
label coded for T568A and T568B wiring schemes.
S P E C I F I C AT I O N S H E E T
TX5500
™
UTP Copper
Cabling System
Mini-Com
®
TX5e
™
UTP
Jack Module
Jack Module:
CJ5E88TIW*
TX5500
™
UTP Copper Cable
Plenum:
Riser:
LSZH (60332-1):
LSZH (60332-3):
CM:
PUP5504***
PUR5504***
PUL5504***
PUZ5504**
PUC5504***
technical information
Category 5e/Class D
channel and component
performance:
Exceeds channel requirements of ANSI/TIA-568-C.2 Category 5e
and ISO 11801 Class D standards at swept frequencies
1 to 100 MHz
Exceeds component requirements of ANSI/TIA-568-C.2 Category
5e and ISO 11801 Class D standards at swept frequencies
1 to 100 MHz
Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of
gold for superior performance
Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed
802.3bt type 3 and type 4
Meets IEC 60603-7
Compliant
UL 1863 approved
Wire cap compatible with 24 – 22 AWG solid cable with conductor
insulation diameters of 0.035 in. to 0.048 in. and overall cable O.D.
0200 in. to 0.250 in.
TX5e
™
UTP Patch Cords
CM (foot lengths):
UTPCH^Y
CM (meter lengths):
UTPCH^^MY
LSZH
(meter lengths):
UTPCHL^^MY
Mini-Com
®
Angled Modular
Patch Panels
24-port, 1 RU:
48-port, 2 RU:
CPPLA24WBLY
CPPLA48WBLY
FCC and ANSI
compliance:
PoE compliance:
IEC compliance:
RoHS compliance:
UL rated:
Conductor termination:
range:
Mini-Com
®
Flat Modular
Patch Panels
24-port, 1 RU:
48-port, 2 RU:
CPPL24WBLY
CPPL48WBLY
For additional modular and punchdown patch
panels, visit www.panduit.com.
Tools and Accessories
Jack module
termination tool:
Wire snipping tool:
Wire stripping tool:
Clear dust cap:
Blockout device:
Phone icons:
Data icons:
CGJT
CWST
CJAST
MDC-C
PSL-DCJB-^^^
CIPIW-C+
CIDIW-C+
key features and benefits
100% performance tested
Utilizes enhanced
Giga-TX
™
Technology
Improved termination cap
Modular
True strain relief
Individually serialized
RJ45 interface
Identification
Termination tools (optional)
Block out device (optional)
Confidence that each jack module will deliver the critical
electrical performance requirements
Optimizes performance by eliminating conductor untwist and
reduces installation time and expense
Conductor retention slots simplify jack module termination
UTP jack modules snap in and out of all Mini-Com
®
Faceplates, Modular Patch Panels and Surface Mount Boxes
for easy moves, adds and changes
Controls cable bend radius for long term installed performance
Marked with quality control number for future traceability
Industry standard interface provides a quick and easy plug and
play connection to RJ45 patch cords; backwards compatible
Can be clearly identified with optional labels and icons for
port identification
CGJT termination tool ensures conductors are fully terminated
by utilizing a smooth forward motion without impact on critical
internal components for maximum reliability
Provides a simple and secure method to control access to
data ports while not in use
*To designate color other than IW (Off White),
replace IW suffix with EI (Electric Ivory),
IG (International Gray), WH (White),
AW (Arctic White), BL (Black), BU (Blue),
RD (Red), YL (Yellow), GR (Green),
OR (Orange), VL (Violet), BR (Brown),
GD (Gold), LB (Light Blue) or PK (Pink).
**To designate color, add suffix BU (Blue)
or WH (White). For additional cable colors,
contact customer service.
^For lengths 1 to 20 feet (one foot increments)
and 25, 30, 35, 40 feet, change the length
designation in the part number to the desired
length. For standard cable colors other than
Off White, add suffix BL (Black), BU (Blue), RD
(Red), YL (Yellow), GR (Green), OR (Orange)
or VL (Violet). For example, the part number
for a blue 15-foot patch cord is UTPSP15BUY.
^^For lengths 1 to 10 meters (one meter
increments) and 0.5, 1.5, 2.5, 15, 20, meters,
change the length designation in the part
number to the desired length. For standard
cable colors other than Off White, add suffix
BL (Black), BU (Blue), RD (Red), YL (Yellow),
GR (Green), OR (Orange) or VL (Violet). For
example, the part number for a blue 15-meter
patch cord is UTPSP15MBUY.
^^^To designate color other than Red, add
suffix BL (Black), BU (Blue), YL (Yellow), GR
(Green), OR (Orange), IW (Off White) or IG
(International Gray) at end of the part
number. 10/package.
+To designate color other than IW (Off White),
replace IW with EI (Electric Ivory), IG
(International Gray), BL (Black), BU (Blue),
RD (Red), YL (Yellow), GR (Green), OR
(Orange) or VL (Violet) in the part number.
100/package.
Contact customer service for bulk packaged
jack modules and patch cords.
applications
Mini-Com
®
TX5e
™
UTP Jack Modules are
a component of the TX5500
™
UTP Copper
Cabling System. This end-to-end system
provides Gigabit Ethernet performance with
usable bandwidth beyond 100 MHz. With
certified performance to the ANSI/TIA-568-C.2
Category 5e and ISO 11801 Class D
standards, this system will support
the following applications:
• Ethernet 10BASE-T, 100BASE-T (Fast
Ethernet), 1000BASE-T (Gigabit Ethernet)
• 155 Mb/s ATM, 622 Mb/s ATM
• Token ring 4/16
• Voice/data systems
• Voice over Internet Protocol (VoIP)
w w w.pa nd uit.c om
