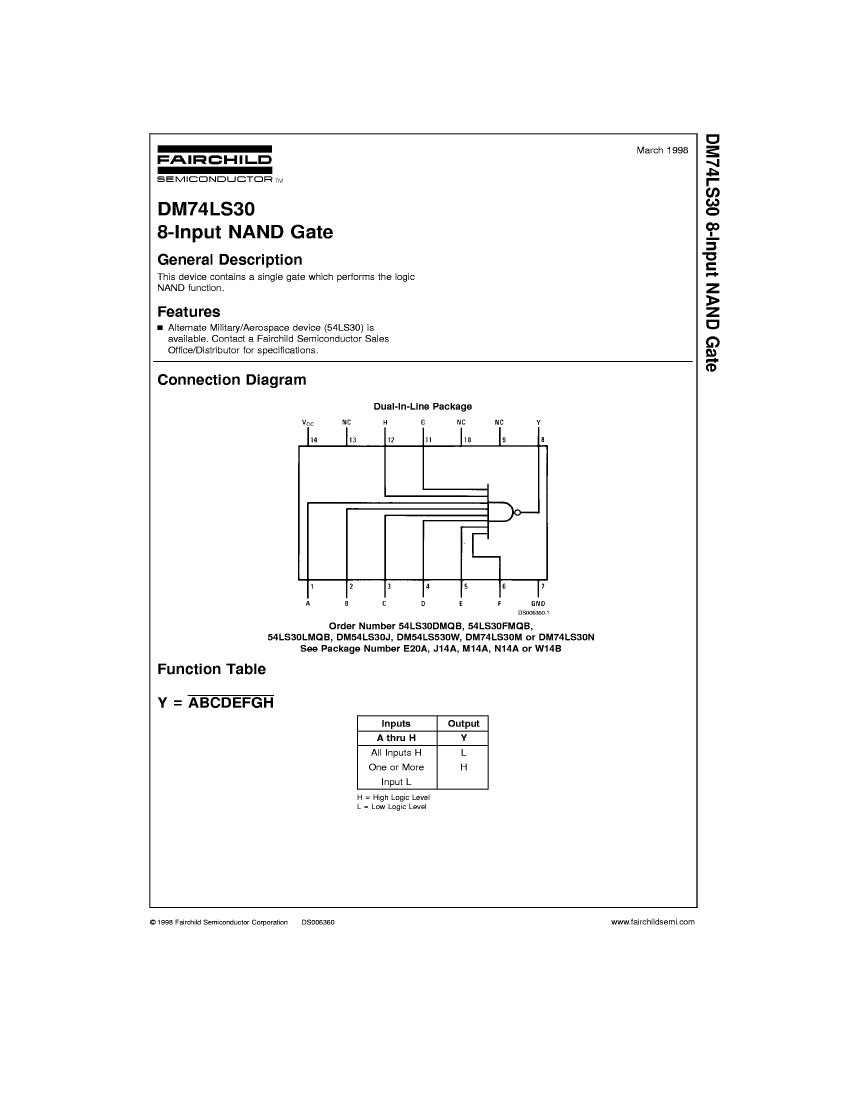

NAND Gate, LS Series, 1-Func, 8-Input, TTL, CQCC20, CERAMIC, LCC-20

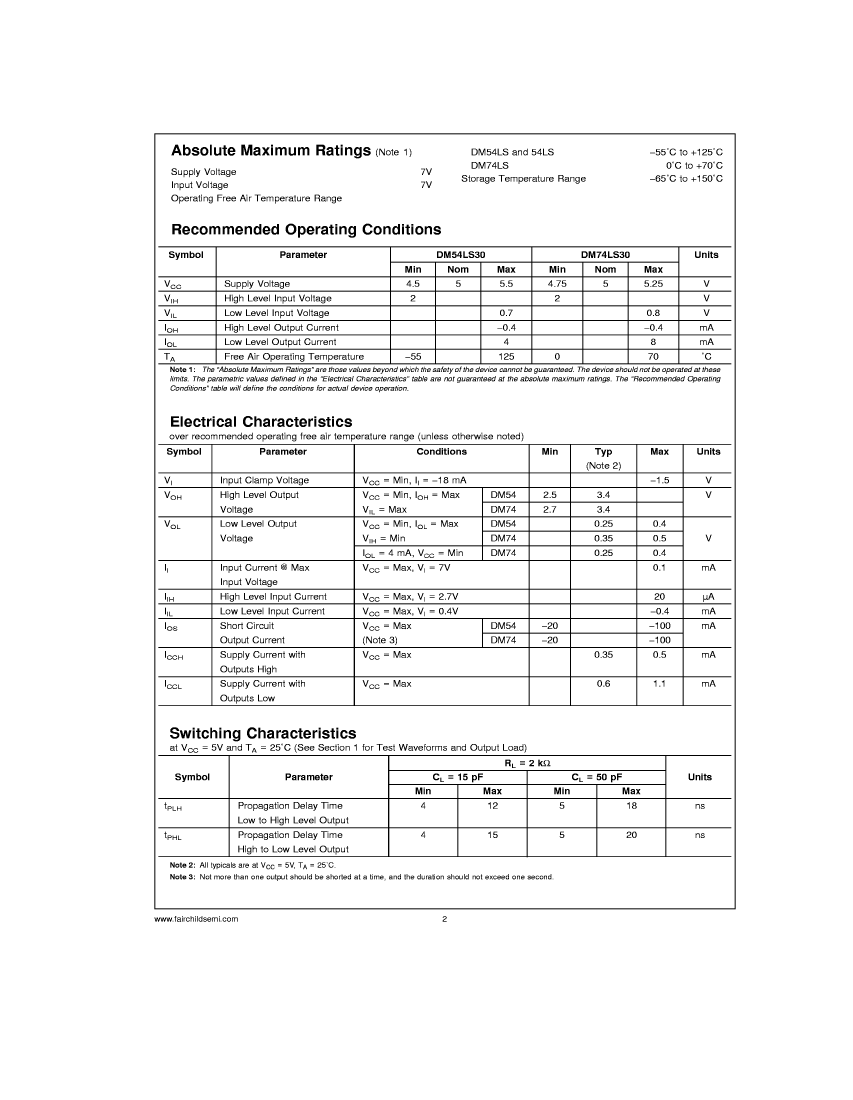

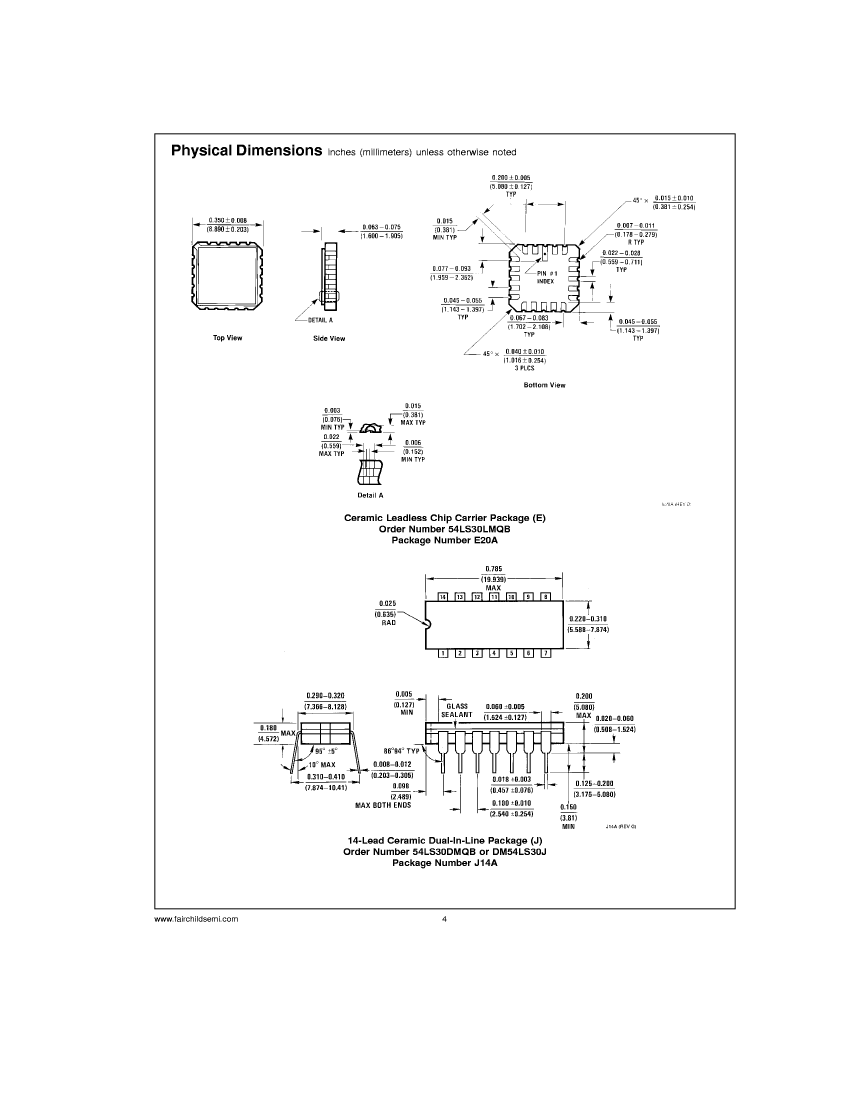

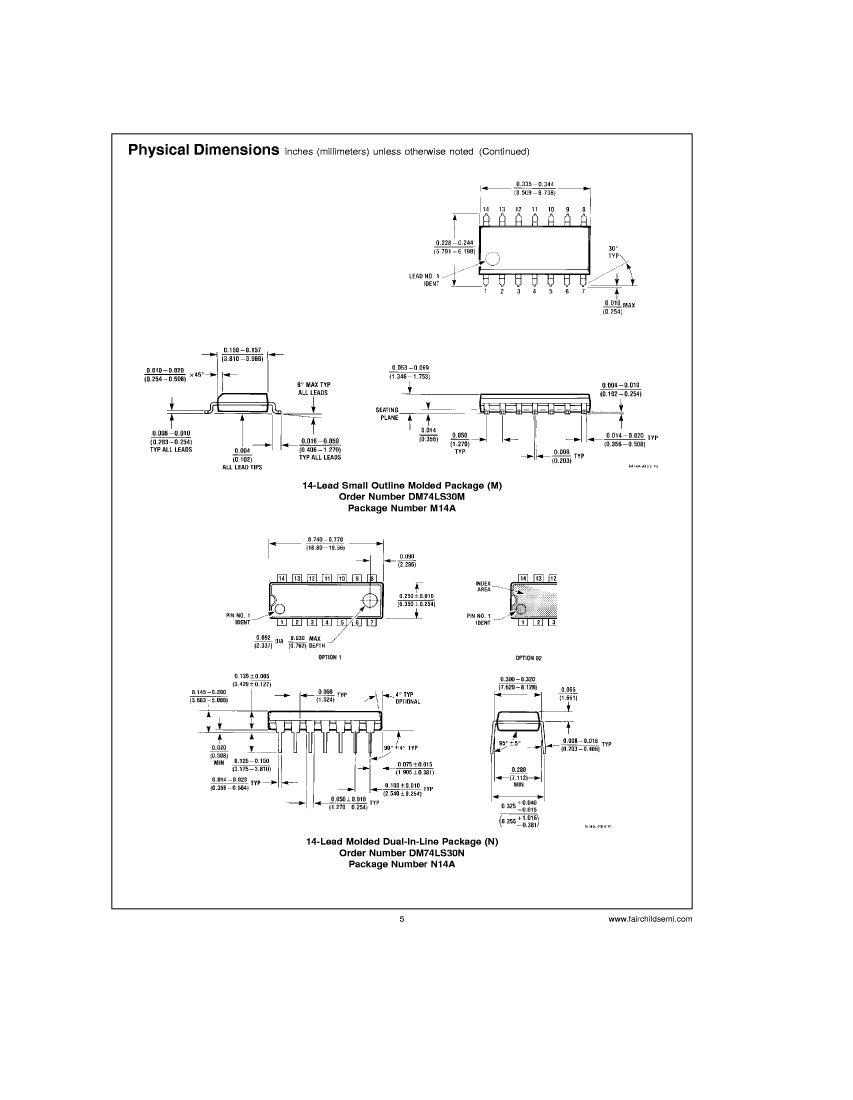

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknow |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | NAND GATE |
| MaximumI(ol) | 0.004 A |
| Number of functions | 1 |
| Number of entries | 8 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 1.1 mA |
| Prop。Delay @ Nom-Su | 20 ns |
| propagation delay (tpd) | 20 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Filter level | MIL-STD-883 Class B |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 54LS30LMQB | 54LS30FMQB | DM54LS30J | 54LS30DMQB | |
|---|---|---|---|---|
| Description | NAND Gate, LS Series, 1-Func, 8-Input, TTL, CQCC20, CERAMIC, LCC-20 | NAND Gate, LS Series, 1-Func, 8-Input, TTL, CDFP14, CERAMIC, FP-14 | NAND Gate, LS Series, 1-Func, 8-Input, TTL, CDIP14, CERAMIC, DIP-14 | NAND Gate, LS Series, 1-Func, 8-Input, TTL, CDIP14, CERAMIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | QLCC | DFP | DIP | DIP |
| package instruction | QCCN, LCC20,.35SQ | DFP, FL14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Contacts | 20 | 14 | 14 | 14 |
| Reach Compliance Code | unknow | unknow | unknow | unknown |
| series | LS | LS | LS | LS |
| JESD-30 code | S-CQCC-N20 | R-GDFP-F14 | R-GDIP-T14 | R-GDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE | NAND GATE |
| MaximumI(ol) | 0.004 A | 0.004 A | 0.004 A | 0.004 A |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of entries | 8 | 8 | 8 | 8 |
| Number of terminals | 20 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DFP | DIP | DIP |
| Encapsulate equivalent code | LCC20,.35SQ | FL14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | FLATPACK | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 1.1 mA | 1.1 mA | 1.1 mA | 1.1 mA |
| propagation delay (tpd) | 20 ns | 20 ns | 20 ns | 20 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO | NO |
| Maximum seat height | 1.905 mm | 2.032 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | FLAT | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 8.89 mm | 6.2865 mm | 7.62 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
| length | 8.89 mm | - | 19.43 mm | 19.43 mm |
| Prop。Delay @ Nom-Su | 20 ns | 20 ns | 20 ns | - |
| Filter level | MIL-STD-883 Class B | MIL-STD-883 Class B | - | MIL-STD-883 Class B |
