A-SATA/7-F-AO-D-01-01-R

Description
sata connector
CategoryThe connector
File Size41KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-SATA/7-F-AO-D-01-01-R Overview

sata connector

A-SATA/7-F-AO-D-01-01-R Parametric

Parameter NameAttribute value
Datasheets

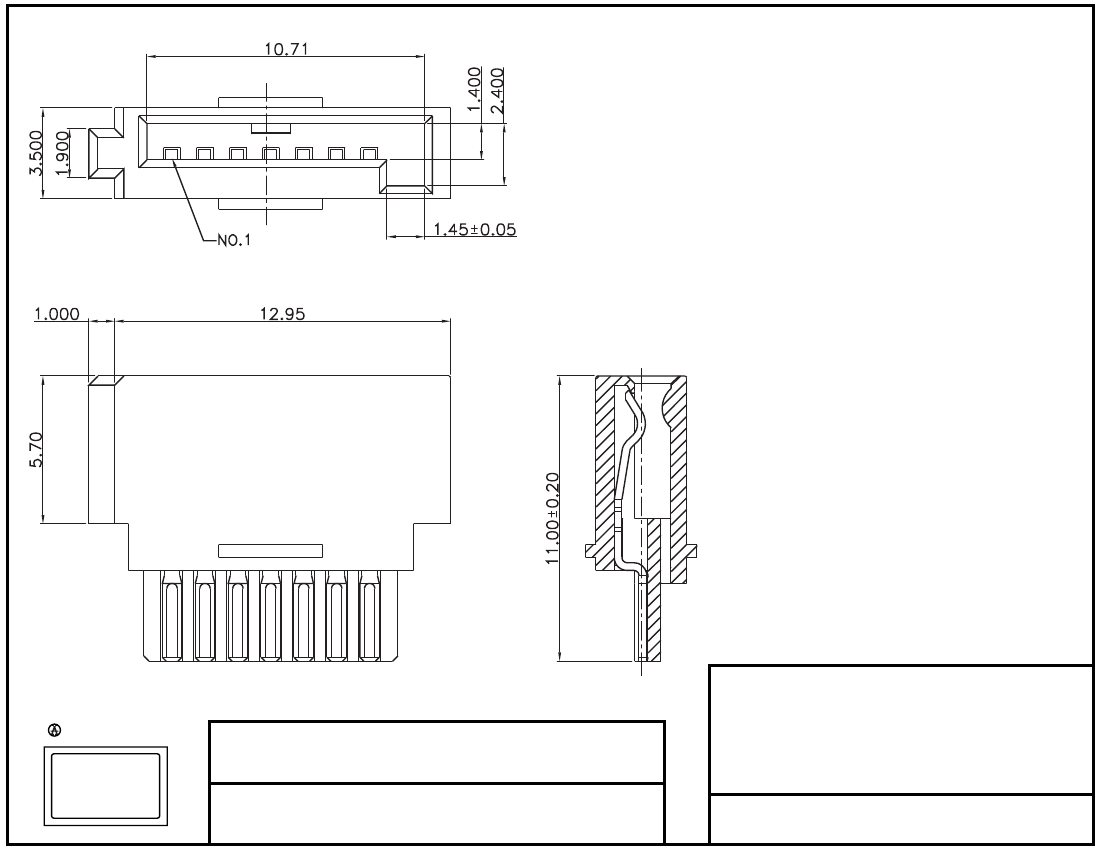

A-SATA/7-F-AO-D-01-01-R Drawing
Standard Package200
CategoryConnectors, Interconnects
FamilyPluggable Connectors
PackagingBulk
Connector StyleReceptacle
Connector TypeSATA
Number of Positions7
Mounting TypeFree Hanging (In-Line)
TerminatiSolde
Features-
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Material:
• Housing: Thermoplastic (LCP + GF)
• Contact: Phosphor Bronze
• Plating Contact: Gold
Electrical:
• Voltage Rating: 30V
• Current Rating: 1.5A
• Contact Resistance Terminal: 30m
• Dielectric withstanding voltage: 500V AC
• Insulation Resistance: 1,000m Min
Unit: MM±0.15MM
= Assmann logo
ITEM NO.
TITLE
RoHS
Compliant
A-SATA/7-F-AO-D-01-01-R
Serial ATA (SATA) Connector - 7 Pin, A-Female
Solder Type, 30—” White
