1735284-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1735284-4

1735284-4: DescriptionSATA BACKPLANE RECEPTACLE, VERTICAL, SMT; CategoryThe connector; File Size787KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1735284-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1735284-4	-	-	View	Buy Now

1735284-4 Overview

SATA BACKPLANE RECEPTACLE, VERTICAL, SMT

1735284-4 Parametric

Parameter Name	Attribute value
shell	Without
Connector type	female end
Connector System	cable to board
shape	standard
Connectors and terminals terminate to	A printed circuit board
Product grouping	SATA
Stackable	no
Number of Positions	22
PCB mounting direction	vertical
Rows	1
Number of ports	2
keying	yes
Terminal base material	copper alloy
PCB terminal termination area plating materials	tin
Terminal configuration	7P + 15P
Contact Current Rating (Max) (A)	1.5
Terminal contact plating thickness	.38 µm [ 15 µin ]
Terminal contact plating material	gold
PCB termination area electroplated coating	matte
PCB mounting fixation type	welding nails
PCB installation and fixation	with
PCB installation method	surface mount
Installation location	top
Connector mounting type	board mounting
Joint alignment type	polarization
Plate lock length	.8 mm [ .032 in ]
Centerline (Pitch)	1.27 mm [ .05 in ]
Shell material	high temperature thermoplastics
Shell color	black
Height above PC board	6.6 mm [ .26 in ]
PCB thickness (recommended)	1.2 mm [ .048 in ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]
High temperature shell	yes
Circuit Application	Power and Signal
UL flammability rating	UL 94V-0
Package quantity	48
Encapsulation method	Pallets, boxes and pallets
Comment	Small profile back panel

Preview

Download Datasheet

View All

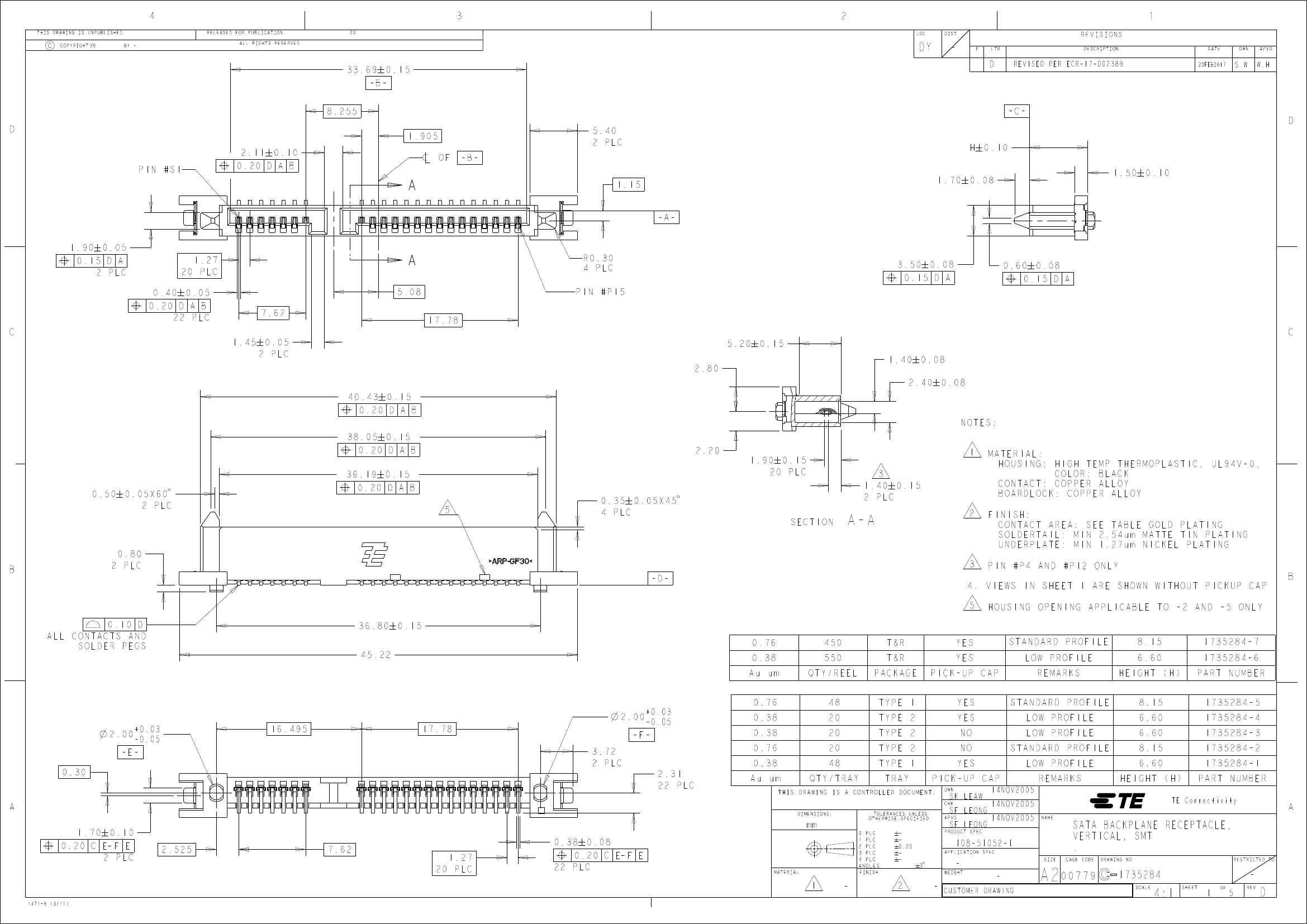

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

33.69

-B-

0.15

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-17-002389

20FEB2017

S.W

W.H

8.255

-C-

1.905

5.40

2 PLC

-B-

1.15

-A-

1.70

2.11

PIN #S1

0.10

H # 0.10

0.08

1.50

0.10

1.90

0.05

2 PLC

0.40

1.27

20 PLC

0.05

7.62

1.45

0.05

2 PLC

5.08

17.78

R0.30

4 PLC

PIN #P15

3.50

0.08

0.60

0.08

22 PLC

5.20

2.80

40.43

0.15

1.40

0.08

2.40

38.05

0.15

NOTES:

2.20

1.40 # 0.15

2 PLC

MATERIAL:

HOUSING: HIGH TEMP THERMOPLASTIC, UL94V-0,

COLOR: BLACK

CONTACT: COPPER ALLOY

BOARDLOCK: COPPER ALLOY

FINISH:

CONTACT AREA: SEE TABLE GOLD PLATING

SOLDERTAIL: MIN 2.54um MATTE TIN PLATING

UNDERPLATE: MIN 1.27um NICKEL PLATING

PIN #P4 AND #P12 ONLY

36.19

0.50

0.05 X60 $

2 PLC

0.15

0.35 0.05 X45 $

4 PLC

1.90 # 0.15

20 PLC

SECTION

A-A

0.80

2 PLC

-D-

4. VIEWS IN SHEET 1 ARE SHOWN WITHOUT PICKUP CAP

HOUSING OPENING APPLICABLE TO -2 AND -5 ONLY

STANDARD PROFILE

LOW PROFILE

REMARKS

STANDARD PROFILE

LOW PROFILE

STANDARD PROFILE

LOW PROFILE

14NOV2005

NAME

ALL CONTACTS AND

SOLDER PEGS

36.80

45.22

0.15

0.76

0.38

Au um

0.76

0.38

0.76

2.31

22 PLC

0.38

Au um

450

550

QTY/REEL

QTY/TRAY

T&R

T &R

PACKAGE

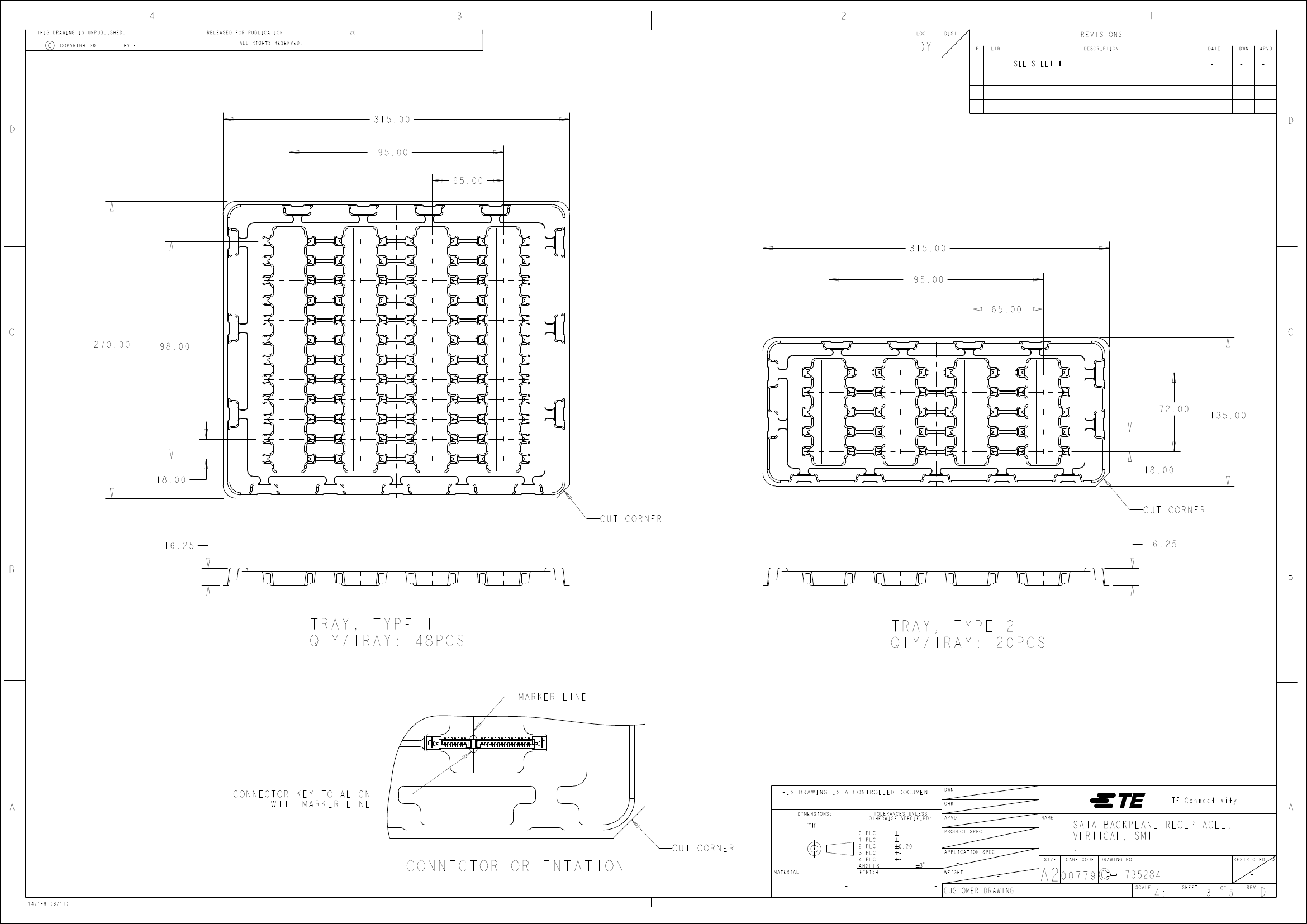

TYPE 1

TYPE 2

TYPE 1

TRAY

DWN

CHK

DIMENSIONS:

YES

PICK-UP CAP

YES

PICK-UP CAP

SK LEAW

SF LEONG

8.15

6.60

HEIGHT (H)

8.15

6.60

8.15

6.60

HEIGHT (H)

1735284-7

1735284-6

PART NUMBER

1735284-5

1735284-4

1735284-3

1735284-2

1735284-1

PART NUMBER

2.00

-E-

0.30

+0.03

-0.05

16.495

17.78

3.72

2 PLC

2.00

-F-

+0.03

-0.05

REMARKS

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

1.70

0.10

2 PLC

2.525

7.62

1.27

20 PLC

0.38

22 PLC

0.08

MATERIAL

TE Connectivity

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.20

PRODUCT SPEC

SF LEONG

APPLICATION SPEC

108-51052-1

SIZE

3 $

WEIGHT

1471-9 (3/11)

CUSTOMER DRAWING

00779

CAGE CODE

SATA BACKPLANE RECEPTACLE,

VERTICAL, SMT

DRAWING NO

RESTRICTED TO

1735284

SCALE

4:1

SHEET

REV

1735284-4 Related Products

	1735284-4	1735284-5	1735284-3	VS-720-LPD-CBB-600.0000	1735284-1
Description	SATA BACKPLANE RECEPTACLE, VERTICAL, SMT	SATA BACKPLANE RECEPTACLE, VERTICAL, SMT	SATA BACKPLANE RECEPTACLE, VERTICAL, SMT	Voltage Controlled Clock SAW Oscillator	SATA BACKPLANE RECEPTACLE, VERTICAL, SMT
shell	Without	Without	Without	-	Without
Connector type	female end	female end	female end	-	female end
Connector System	cable to board	cable to board	cable to board	-	cable to board
shape	standard	standard	standard	-	standard
Connectors and terminals terminate to	A printed circuit board	A printed circuit board	A printed circuit board	-	A printed circuit board
Product grouping	SATA	SATA	SATA	-	SATA
Stackable	no	no	no	-	no
Number of Positions	22	22	22	-	22
PCB mounting direction	vertical	vertical	vertical	-	vertical
Rows	1	1	1	-	1
Number of ports	2	2	2	-	2
keying	yes	yes	yes	-	yes
Terminal base material	copper alloy	copper alloy	copper alloy	-	copper alloy
PCB terminal termination area plating materials	tin	tin	tin	-	tin
Terminal configuration	7P + 15P	7P + 15P	7P + 15P	-	7P + 15P
Contact Current Rating (Max) (A)	1.5	1.5	1.5	-	1.5
Terminal contact plating thickness	.38 µm [ 15 µin ]	.76 µm [ 30 µin ]	.38 µm [ 15 µin ]	-	.38 µm [ 15 µin ]
Terminal contact plating material	gold	gold	gold	-	gold
PCB termination area electroplated coating	matte	matte	matte	-	matte
PCB mounting fixation type	welding nails	welding nails	welding nails	-	plate lock
PCB installation and fixation	with	with	with	-	with
PCB installation method	surface mount	surface mount	surface mount	-	surface mount
Installation location	top	top	top	-	top
Connector mounting type	board mounting	board mounting	board mounting	-	board mounting
Joint alignment type	polarization	polarization	polarization	-	polarization
Plate lock length	.8 mm [ .032 in ]	.8 mm [ .032 in ]	.8 mm [ .032 in ]	-	.8 mm [ .032 in ]
Centerline (Pitch)	1.27 mm [ .05 in ]	1.27 mm [ .05 in ]	1.27 mm [ .05 in ]	-	1.27 mm [ .05 in ]
Shell material	high temperature thermoplastics	high temperature thermoplastics	high temperature thermoplastics	-	thermoplastic
Shell color	black	black	black	-	black
Height above PC board	6.6 mm [ .26 in ]	8.15 mm [ .32 in ]	6.6 mm [ .26 in ]	-	6.6 mm [ .26 in ]
PCB thickness (recommended)	1.2 mm [ .048 in ]	1.2 mm [ .048 in ]	1.2 mm [ .048 in ]	-	1.2 mm [ .048 in ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]	-40 – 85 °C [ -40 – 185 °F ]	-40 – 85 °C [ -40 – 185 °F ]	-	-40 – 85 °C [ -40 – 185 °F ]
High temperature shell	yes	yes	yes	-	yes
Circuit Application	Power and Signal	Power and Signal	Power and Signal	-	Power and Signal
UL flammability rating	UL 94V-0	UL 94V-0	UL 94V-0	-	UL 94V-0
Package quantity	48	48	48	-	48
Encapsulation method	Pallets, boxes and pallets	Pallets, boxes and pallets	Pallets, boxes and pallets	-	Pallets, boxes and pallets
Comment	Small profile back panel	-	Small profile back panel	-	Small profile back panel
