1445048-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1445048-7

Preview

1445048-7: Description(1445048-7) PANEL MT SNGL ROW HSG 7 POS; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1445048-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1445048-7	-	-	View	Buy Now

1445048-7 Overview

(1445048-7) PANEL MT SNGL ROW HSG 7 POS

1445048-7 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2040512336
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	TE Connectivity 7 Way 1 Row Male Straight PCB Connector Housing
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
YTEOL	7.78
Other features	MATE-N-LOK, POLARIZED
body width	0.217 inch
subject depth	0.665 inch
body length	1.018 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE66
MIL compliance	NO
Power Connector Ratings	115/230VAC
Plug contact pitch	0.118 inch
Plug information	1445022-7
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Rated voltage	250 V
Guideline	UL
Terminal pitch	3 mm
Termination type	CRIMP
Total number of contacts	7
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

P2

P3

P4

REVISED PER ECR-16-013672

REVISED PER ECR-17-013562

REVISED PER ECR-18-004185

14OCT2016

14SEP2017

15MAY2018

BW

JB

SC

DZ

D

3.18

3.05

0.10

0.20

4.21

C

0.10

5.51

0.20

C

DIM "B"

# 0.10

SCALE

5:1

DIM "C"+0.05

-0.10

PANEL CUT-OUT

1

3.00

REF

OBSOLETE

16.88

13.88

10.88

40.88

37.88

34.88

31.88

28.88

25.88

22.88

19.88

16.88

13.88

10.88

13.20

10.20

37.20

34.20

31.20

28.20

25.20

22.20

19.20

16.20

13.20

10.20

7.20

12.85

9.85

6.85

4

3

12

11

10

9

8

7

6

5

4

3

2

2-1445048-4

2-1445048-3

2-1445048-2

1-1445048-2

1-1445048-1

1-1445048-0

1445048-9

1445048-8

1445048-7

1445048-6

1445048-5

1445048-4

1445048-3

1445048-2

PART

NUMBER

TE Connectivity

B

3.86

36.85

33.85

30.85

27.85

24.85

21.85

18.85

15.85

12.85

9.85

6.85

DIM A

29AUG2000

NAME

B

DIM "A"

1

8.50

16.89

REF

3

RECOMMENDED PANEL THICKNESS 1.57-2.3.

2. PANEL MUST BE PUNCHED SO THAT HOUSING

ENTERS THE PANEL IN THE SAME DIRECTION

AS THE PUNCH.

3

4

MATERIAL PA66/6 UL94-V0 , COLOR-BLACK.

PRELIMINARY MATERIAL PA66 UL94-V0, GW , COLOR-NATURAL.

REMARK

DIM C

DIM B

DWN

CHK

NO. OF

POS.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

W J RUDY

W DAVIS

mm

APVD

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

PRODUCT SPEC

W DAVIS

APPLICATION SPEC

108-1836

114-13000

SIZE

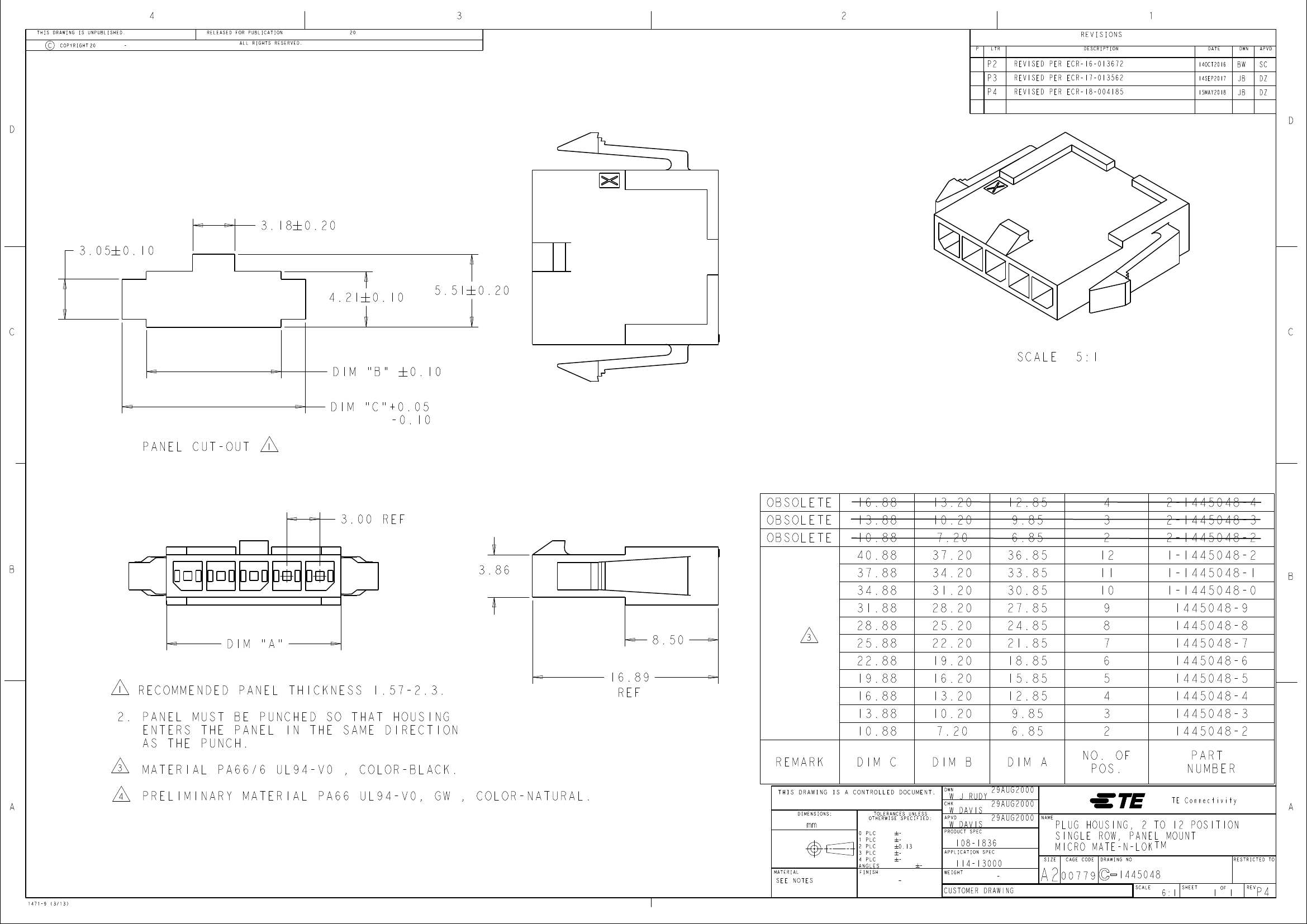

PLUG HOUSING, 2 TO 12 POSITION

SINGLE ROW, PANEL MOUNT

TM

MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

-

SEE NOTES

-

WEIGHT

-

CUSTOMER DRAWING

A2

00779

RESTRICTED TO

1445048

SCALE

1471-9 (3/13)

6:1

SHEET

1

OF

1

REV

P4
