UK 10,3-HESI
This product has been replaced by a newer version.
Order No.: 3004906
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004906

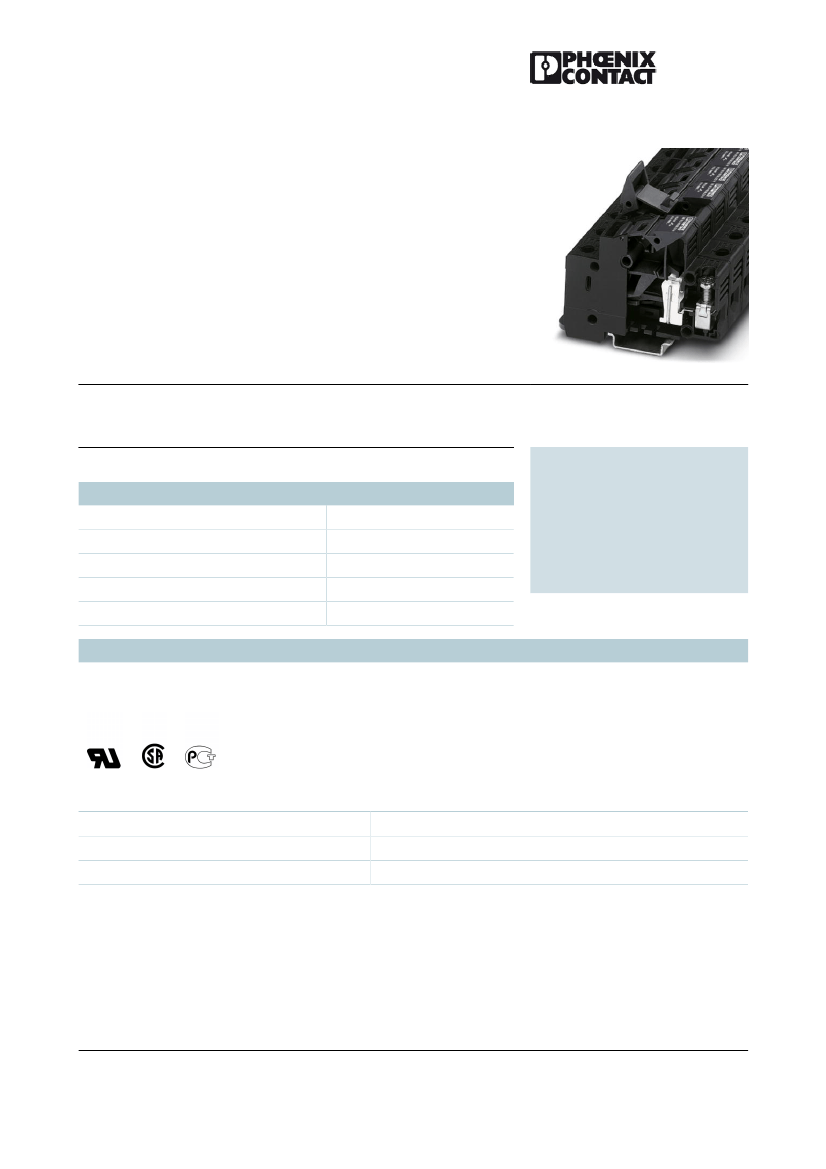

Fuse terminal block for cartridge fuse insert, cross section: 0.5 - 16
mm², AWG: 24 - 8, width: 17.6 mm, color: black
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
Certificates / Approvals
4017918090913
10 Pcs.
85363010
0.07068 KG
Page 79 (CL-2002)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Approval logo
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
600 V
35 A
18-8
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 4
Feb 26, 2008
UK 10,3-HESI
Order No.: 3004906
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004906
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Certification
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 mounting
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End clamp, for supporting the electronic base. If mounted
vertically, 2 end clamps are required in each case
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, perforated, height 7.5 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Connection pin, plastic, for interconnecting three fuse terminal
blocks, color: orange
Designation
Description
600 V
35 A
24-8
CSA, GOST, UL
1201442
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
3004537
E/UK
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
VS-UK 10,3 HESI
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 4
Feb 26, 2008
UK 10,3-HESI
Order No.: 3004906
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004906
Bridges
3009299
3009367
Marking
1007248
1050525
SBS10:UNBEDRUCKT
ZB10:SO/CMS
Marker cards, unprinted, for individual labeling with the M-PEN,
250-section, perforated, white plastic
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
EB 56-18
EB 56-18/L1-L2-L3
Insertion bridge, 56-pos., insulated spine, divisible, 1-phase
Insertion bridge, 56-pos., insulated spine, divisible, 3-phase
Tools
1205066
SZS 1,0X4,0
Screwdriver, bladed, matches all screw terminal blocks with 10
mm² and 16 mm² connection cross section, blade: 1.0 x 4.0 mm
Drawings

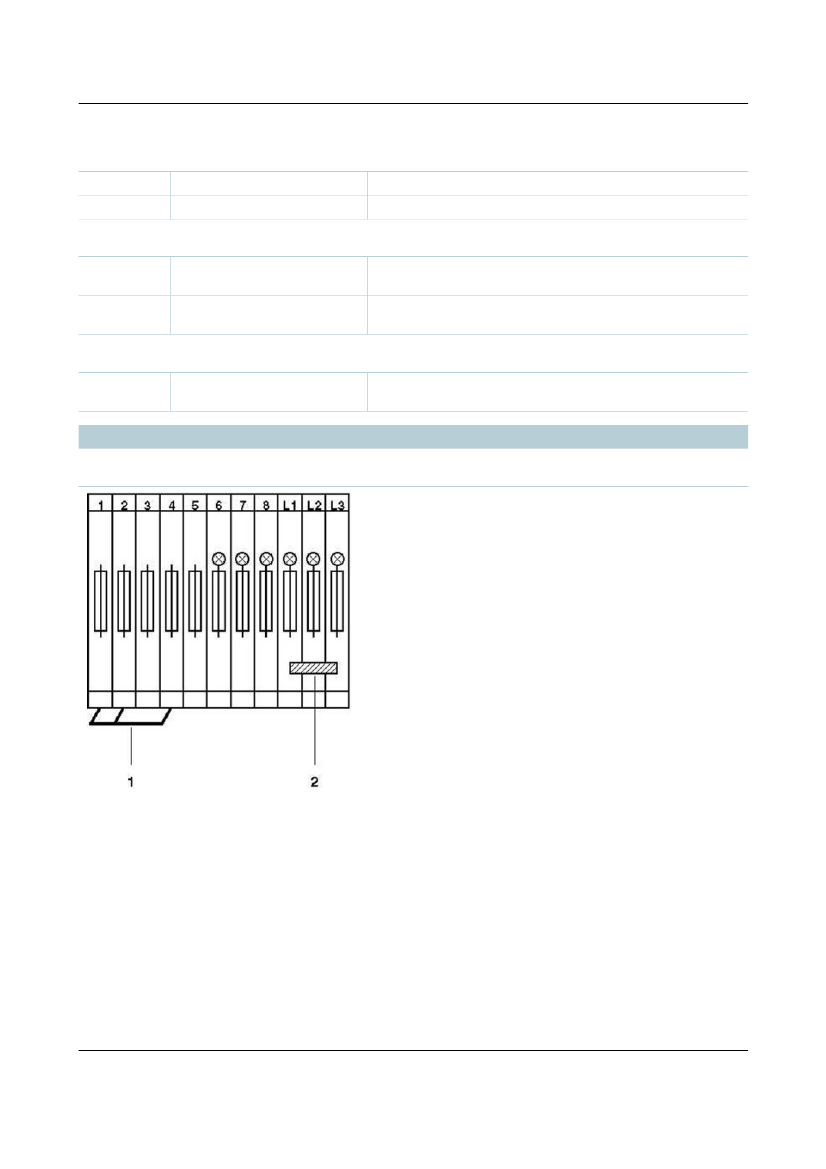

Circuit diagram
1 = fixed bridge
2 = insertion bridge
