TEST FACILITY
NOTES:
1. MATERIALS AND FINISH
HOUSING: PA 6-6, UL 94-V0, COLOR: SEE TABLE.
CLAMP: BRASS, NICKEL PLATED.
TERMINAL: BRASS, TIN PLATED.
CLAMPING SCREW: M3, BRASS, NICKEL PLATED.
2. MECHANICAL
MIN. PC BOARD HOLES DIAMETER
: 1.4 mm
MAX. PC BOARD THICKNESS
: 2.4 mm
WIRE STRIPPING LENGTH
: 6.5 - 7.0 mm
RECOMMENDED TIGHTENING TORQUE FOR SCREW : 0.5 Nm.
3. ELECTRICAL
WIRE RANGE
MAX. VOLTAGE
MAX CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
4.
5.
6
7
:
:
:
:
:
12-30 AWG
300 V
24 A
<15 m Ohm
>1000 M Ohm (500V DC)
D
INTERLOCKING
FEATURE
CLAMPING SCREW
0.50
0.05
C
282861
-3
AS SHOWN
END-TO-END STACKABLE W/INTERLOCK WITHOUT LOSS OF
CENTERLINE SPACING.
RECOGNIZED UNDER THE COMPONENT PROGRAM OF
UNDERWRITERS LABORATORIES INC. FILE NO E60677.
NOT CUMULATIVE TOLERANCE.
INK MARKING, BLACK COLOR.
C
A
10.0
19.0
WIRE ENTRY
3.5
0.3
B
3.81
REF
6
7.62
1.0
0.1
0.80
5.0
0.05
0.2
DETAIL
B
L
7
DETAIL
M
7
GREEN
GRAY
GREEN
+0.1
1.4
0
GREEN
HOUSING
COLOR
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
SEE DETAIL M
SEE DETAIL L
-
-
MARKING
24OCT2001
D. BIEVENOUR
APVD
24OCT2001
D. BIEVENOUR
PRODUCT SPEC
APPLICATION SPEC
22.86
22.86
22.86
15.24
A
3
3
3
2
NO OF
POSN
282861 -5
282861 -4
282861 -3
282861 -2
PART
NUMBER
A
7.62
E. ZANOLINI
24OCT2001
NAME
TE Connectivity
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
RECOMMENDED PC BOARD LAYOUT
1471-9 (3/13)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.3
0.25
-
-
108-20166
114-20079
SIZE

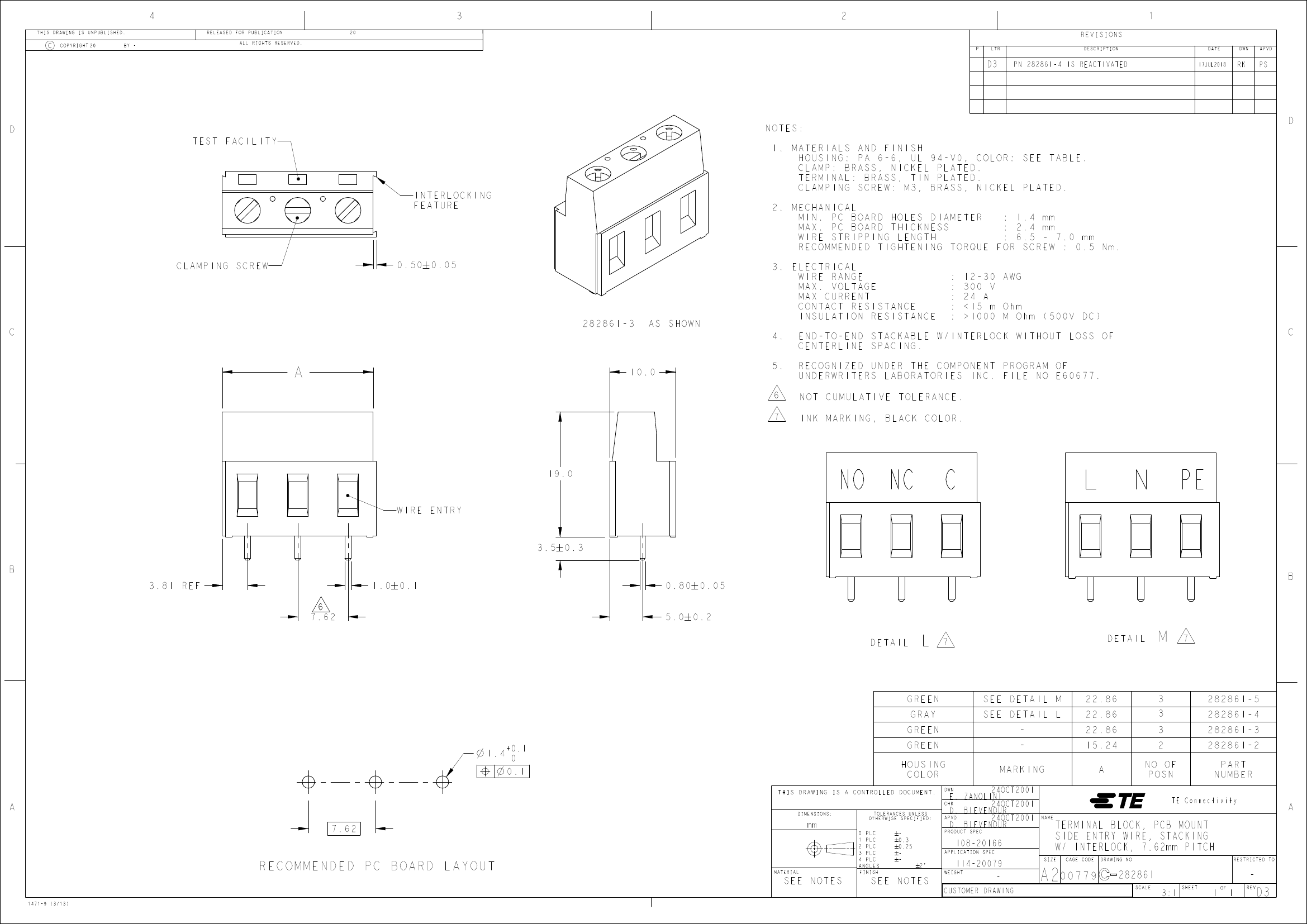

TERMINAL BLOCK, PCB MOUNT
SIDE ENTRY WIRE, STACKING
W/ INTERLOCK, 7.62mm PITCH
CAGE CODE
DRAWING NO
2°
SEE NOTES
SEE NOTES
WEIGHT
-
CUSTOMER DRAWING
A2
00779
RESTRICTED TO
282861
SCALE
3:1
SHEET
1
OF
1
REV
-
D3
