1-1971875-3 Overview

PTL 3X3 CAP PANEL MT STD TEMP KEY A NAT

1-1971875-3 Parametric

Parameter Name	Attribute value
Housing type	female end, female end
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	Public end
Number of Positions	9
Number of power supply locations	9
Rows	3
Line spacing	.319 mm [ 8.1 in ]
keying	A
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Withou
Terminal layout	matrix
Cable termination method	crimp
Panel Mount Feature Type	latch
Panel mount features	with
Connector mounting type	Panel
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	Natural
Shell material	PBT GF
Outgoing angle	Straight
Panel thickness	1 – 2 mm [ .039 – .079 in ]
Height (mm)	31.15
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Powe
Circuit identification characteristics	with
Glow Wire Ratings	Standard parts - non-glow wire
Agencies/Standards	UL
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, male terminal, plug boot, terminal locking tab

Preview

Download Datasheet

View All

8

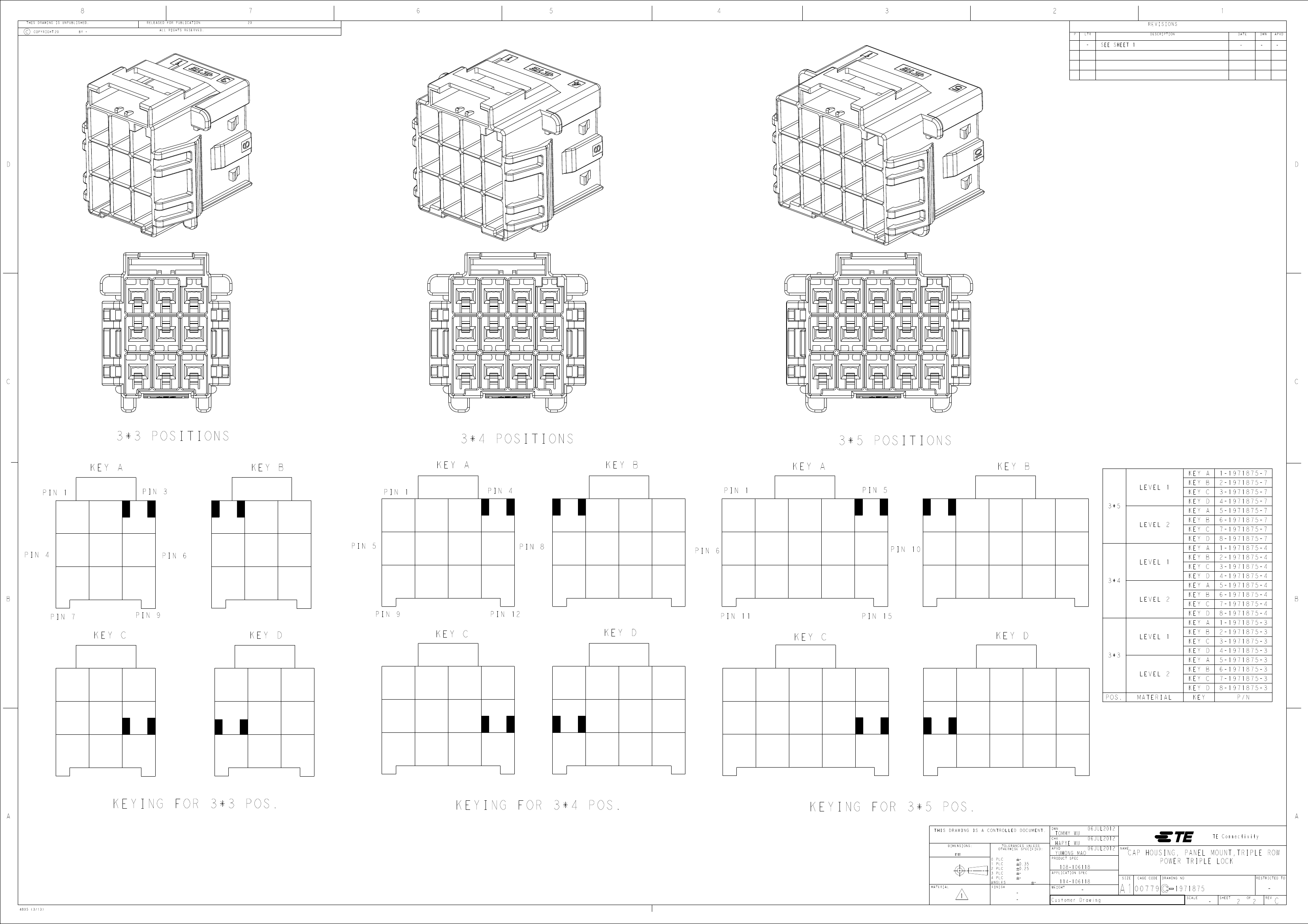

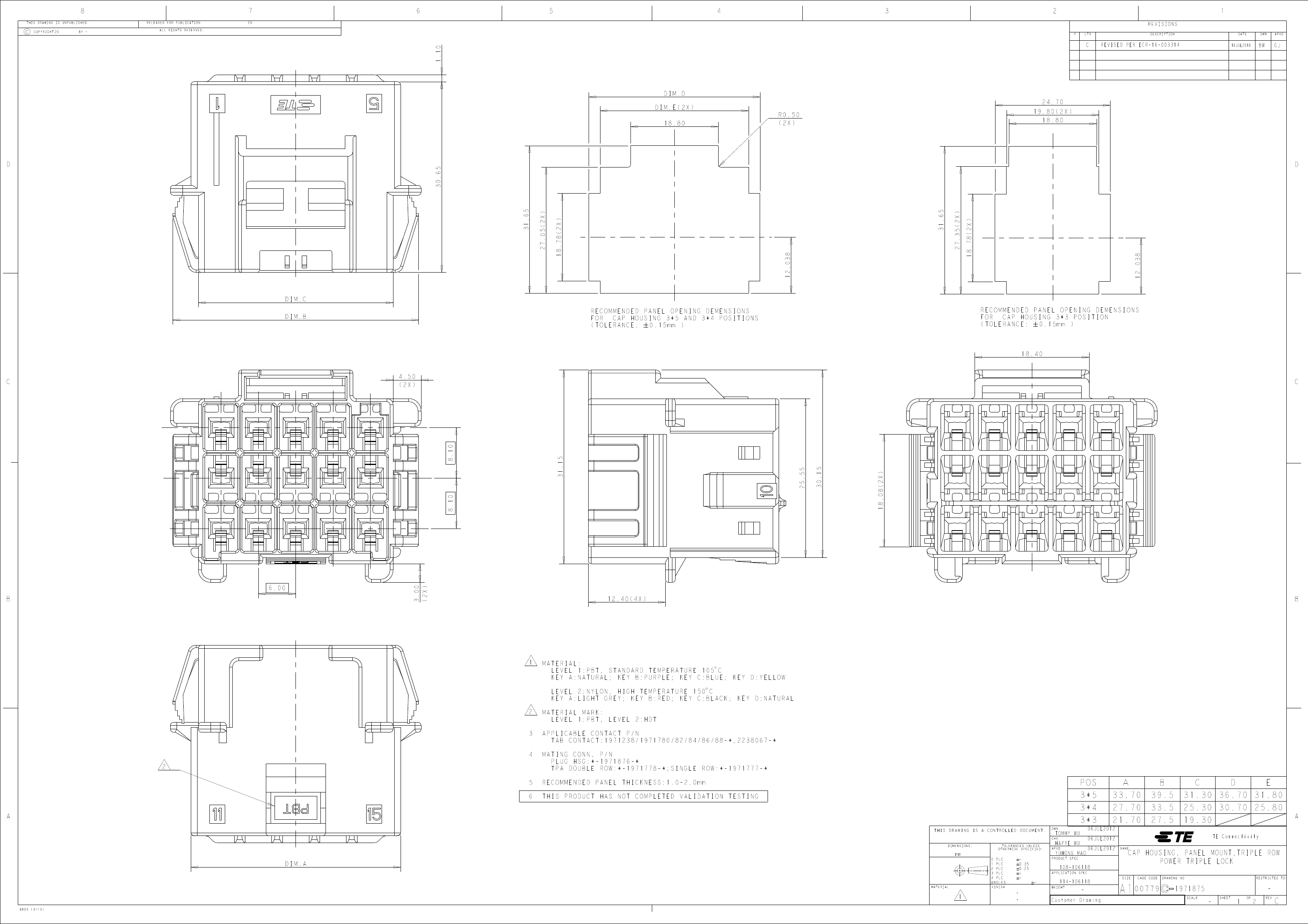

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

1.10

C

REVISED PER ECR-16-003314

16JUL2016

BW

GJ

DIM.D

DIM.E(2X)

18.80

R 0.50

(2X)

19.80 (2X)

18.80

24.70

30.65

D

31.65

27.05 (2X)

18.78 (2X)

27.35 (2X)

12.038

18.78 (2X)

DIM.C

DIM.B

RECOMMENDED PANEL OPENING DEMENSIONS

FOR CAP HOUSING 3*5 AND 3*4 POSITIONS

(TOLERANCE: # 0.15mm )

RECOMMENDED PANEL OPENING DEMENSIONS

FOR CAP HOUSING 3*3 POSITION

(TOLERANCE: # 0.15mm )

18.40

4.50

(2X)

C

12.038

C

8.10

31.15

25.55

30.15

B

3.00

(2X)

6.00

8.10

18.08 (2X)

12.40 (4X)

B

1

MATERIAL:

LEVEL 1:PBT, STANDARD TEMPERATURE 105 $ C

KEY A:NATURAL; KEY B:PURPLE; KEY C:BLUE; KEY D:YELLOW

LEVEL 2:NYLON, HIGH TEMPERATURE 150 $ C

KEY A:LIGHT GREY; KEY B:RED; KEY C:BLACK; KEY D:NATURAL

2

3

4

2

5

6

MATERIAL MARK:

LEVEL 1:PBT, LEVEL 2:HDT

APPLICABLE CONTACT P/N

TAB CONTACT:1971238/1971780/82/84/86/88-*,2238067-*

MATING CONN, P/N

PLUG HSG:*-1971876-*

TPA DOUBLE ROW:*-1971778-*;SINGLE ROW:*-1971777-*

RECOMMENDED PANEL THICKNESS:1.0-2.0mm

THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING

POS

3*5

3*4

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

33.70

27.70

21.70

NAME

39.5

33.5

27.5

B

31.30

25.30

19.30

C

36.70

30.70

TE Connectivity

D

31.80

25.80

A

E

A

TOMMY WU

HAPYE WU

YUHONG MAO

3*3

06JUL2012

mm

APVD

DIM.A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.35

0.25

-

PRODUCT SPEC

APPLICATION SPEC

108-106118

114-106118

CAP HOUSING, PANEL MOUNT,TRIPLE ROW

POWER TRIPLE LOCK

CAGE CODE

DRAWING NO

RESTRICTED TO

-

1

4805 (3/13)

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

1971875

SCALE

-

SHEET

1

OF

2

REV

-

C

1-1971875-3 Related Products

	1-1971875-3	1-1971875-4	1-1971875-7
Description	PTL 3X3 CAP PANEL MT STD TEMP KEY A NAT	PTL 3X4 CAP PANEL MT STD TEMP KEY A NAT	PTL 3X5 CAP PANEL MT STD TEMP KEY A NAT
Housing type	female end, female end	female end, female end	female end, female end
Connector System	line to line	line to line	line to line
Sealable	no	no	no
Connectors and terminals terminate to	Wires and cables	Wires and cables	Wires and cables
Terminal type	Public end	Public end	Public end
Number of Positions	9	12	15
Number of power supply locations	9	12	15
Rows	3	3	3
Line spacing	.319 mm [ 8.1 in ]	.319 mm [ 8.1 in ]	.319 mm [ 8.1 in ]
keying	A	A	A
Operating voltage (VAC)	600	600	600
Operating voltage (VDC)	600	600	600
Terminal retention	Withou	Withou	Withou
Terminal layout	matrix	matrix	matrix
Cable termination method	crimp	crimp	crimp
Panel Mount Feature Type	latch	latch	latch
Panel mount features	with	with	with
Connector mounting type	Panel	Panel	Panel
Centerline (Pitch)	6 mm [ .236 in ]	6 mm [ .236 in ]	6 mm [ .236 in ]
UL fire rating	UL 94V-0	UL 94V-0	UL 94V-0
Shell color	Natural	Natural	Natural
Shell material	PBT GF	PBT GF	PBT GF
Outgoing angle	Straight	Straight	Straight
Panel thickness	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]
Height (mm)	31.15	31.15	31.15
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Powe	Powe	Powe
Circuit identification characteristics	with	with	with
Glow Wire Ratings	Standard parts - non-glow wire	Standard parts - non-glow wire	Standard parts - non-glow wire
Agencies/Standards	UL	UL	UL
Organization/Standard Number	E28476	E28476	E28476
UL rating	Recognized	Recognized	Recognized
Encapsulation method	carton	carton	carton
Applicable to	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab
