USB-B-S-F-B-TH-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> USB-B-S-F-B-TH-R

USB-B-S-F-B-TH-R: Descriptionusb type B 2.0 black T/H; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

USB-B-S-F-B-TH-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB-B-S-F-B-TH-R	-	-	View	Buy Now

USB-B-S-F-B-TH-R Overview

usb type B 2.0 black T/H

USB-B-S-F-B-TH-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Factory Lead Time	3 weeks
Connector type	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

F-218

USBR–B–S–F–O–TH

USB–B–S–S–B–SM

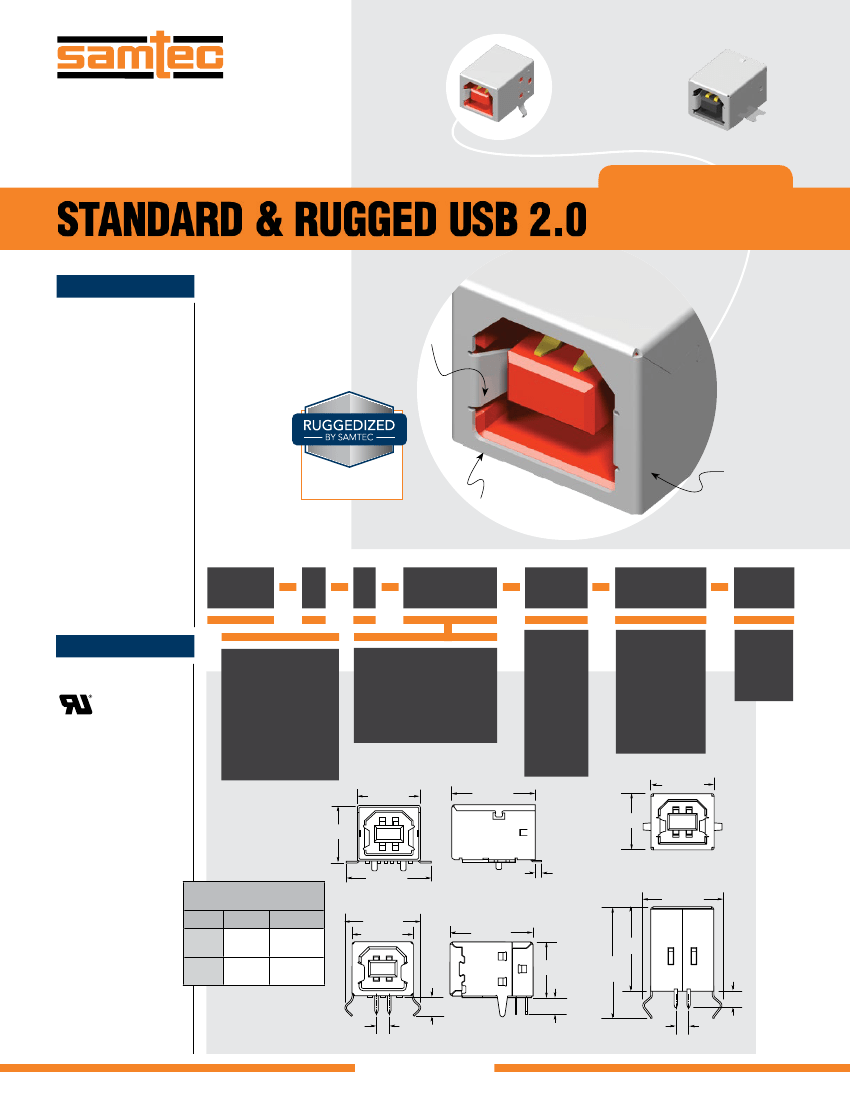

USB-B, USBR-B SERIES

STANDARD & RUGGED USB 2.0

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?USB-B

or www.samtec.com?USBR-B

Insulator Material:

High Temperature

Thermoplastic

Contact Material:

Phosphor Bronze

Plating:

Gold on Contacts,

Nickel on Shell, Tin on Tails

Operating Temp Range:

-50 °C to +85 °C

Voltage Rating:

30 VAC

Cycles:

1500 (maximum

number of cycles tested)

Packaging:

Packaged and shipped in

Bulk Packaging Trays; Trays

suitable for automation are

available upon request.

RoHS Compliant:

Yes

Lead–Free Solderable:

USB-SM=Yes

USB-TH= Yes

(Wave Solder only)

USBR=Yes (Wave Solder only)

TID Number:

USB-B-S-X-X-TH (61001155)

Minimum 15N

withdrawal force

• High retention

option

Through-hole

option

Increased

retention option

TYPE

PLATING

COLOR

TERMINATION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(USB only)

FILE NO. E225096

(USBR only)

= Standard Connector

USB

= Increased

Retention Connector

(Complies with Class 1,

DIV II minimum

withdrawal

requirement of 15N)

USBR

= Gold Flash on Mating Area,

Tin on Tails

= 30 µ" (0.76 µm) Gold on

Mating Area, Tin on Tails

–F

= Black

(USB only)

–B

= Through-hole

–TH

–S

= White

(USB only)

–W

–O

= Surface Mount

(USB only)

–SM

–VT

= Tape

and Reel

Packaging

(–SM only)

–TR

= Orange

(USBR only)

(12.00) .472

(16.00) .630

= Vertical Top Entry

(12.10) .476

(10.90)

.429

(11.10)

.437

(16.20) .638

(1.15)

.045

MATING / UNMATING FORCE

(100 CYCLES)

SERIES MATING UNMATING

USB

USBR

5.3

(23.59 N)

11.8

(52.51 N)

6.1

(27.15 N)

11.5

(51.18 N)

(14.80) .583

(12.10) .476

–SM

(14.78) .582

(16.20) .638

(16.10)

.634

(10.80)

.425

(21.15)

.833

(3.64)

.143

(2.50)

.098

(3.10)

.122

(2.50) .098

(3.10)

.122

–TH

–VT

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
