Z-BLOCKER® Z-230PJ
xDSL over POTS In-Line Filter
Description
The Z-230PJ is a small in-line filter designed to
expedite the service delivery and improve the
performance of digital subscriber line (DSL) and
home phoneline network (HPN) services. This
model fits all telephone sets, facsimile machines,
answering machines, etc. individually or in groups
on line 1 only. Our in-line DSL filter design
electronically isolates the high-speed DSL and
HPN data streams from the voice band plain old
telephone service (POTS) equipment. This design
effectively blocks the DSL, and HPN up to 30
Megahertz.

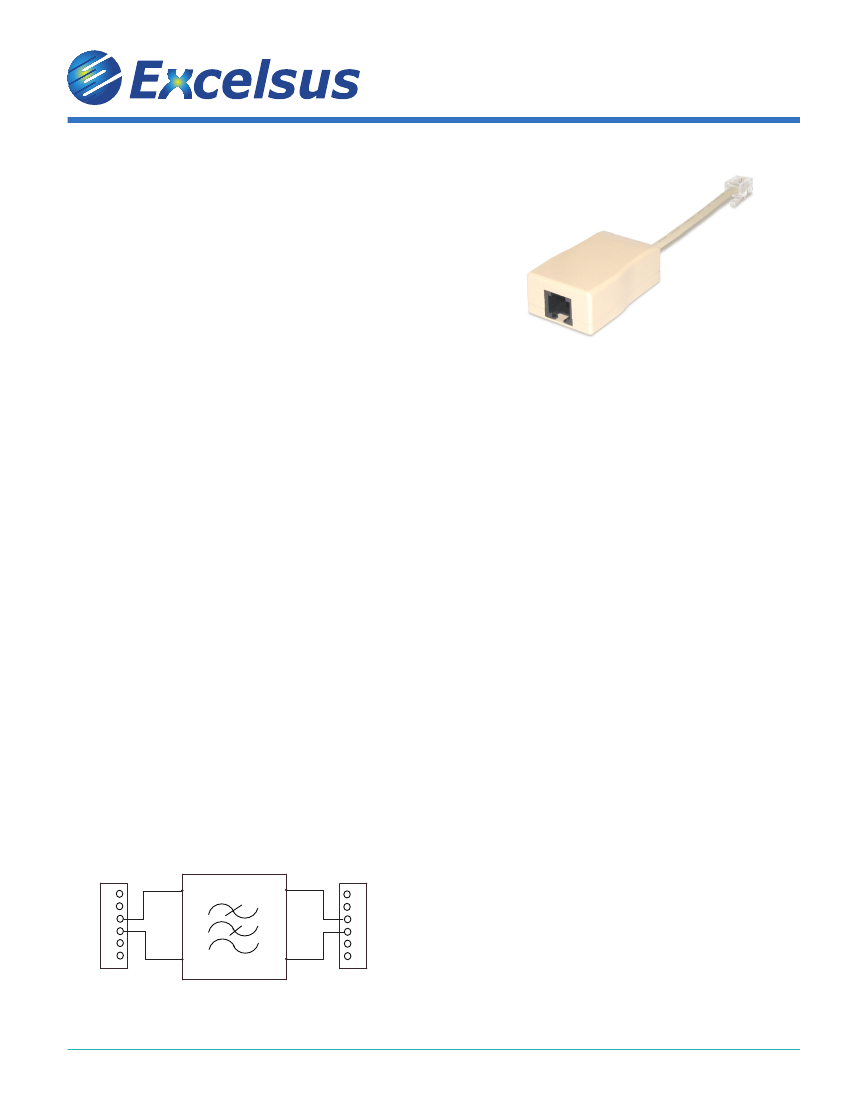

Z-230PJ In-Line xDSL over POTS Filter
Applications
The Z-230PJ filters are used with other
Z-BLOCKER® filters distributed throughout the
subscribers' premises to isolate all voice band
equipment devices such as corded/cordless tele-
phones, answering machines, fax machines,
56Kb/s and lower rate modems, automatic dialers,
recorder connectors and satellite television set-top
boxes.
The Z-230PJ in-line DSL filter is one of many
filters manufactured by Excelsus for subscriber in-
stalled digital services within homes, offices, and
hotels. Excelsus is the number one selling brand of
DSL filters worldwide.
Features
● Isolates telephone equipment impedances from
the xDSL and HPN systems
● Attenuate xDSL & HPN signals to phone
equipment to prevent conversion to voice band
signals
● Attenuate HPN signals to unbalanced phone
equipment to prevent radiation into electronic
equipment
● Minimize voice band interference
transmission, signaling and supervision
● Compatible with all major xDSL standards
● RoHS Compliant
● Compliant and listed with UL 60950,
FCC Part 68
● CE certified
RJ11-PLUG
6
5
4
3
2
1
RJ11-JACK
6
5
4
3
2
1
LINE
PHONE
Z-230PJ Block Schematic
www.PulseElectronics.com
EX110.C (02/12)
Z-BLOCKER® Z-230PJ
xDSL over POTS In-Line Filter
Z-BLOCKER® Z-230PJ Filter Specifications
Line side differential input blocking impedance
At 20 kHz
>2k
At 30 kHz
>3k
From 5 MHz to 10 MHz
>2k
1 kHz insertion loss between 600 Ω resistive
Single filter
<0.4
With 5 filters
<0.6
1 kHz/2.8 kHz slope between 600 Ω resistive
Single filter
<0.1
With 5 filters
<1.1
DC resistance in Ohms
Tip to Tip, and Ring to Ring
<12
Tip to Ring
>10M
Longitudinal Balance per IEEE method
From 200 - 1 kHz
>58 dB
From 1 kHz - 3 kHz
>53 dB
Common mode rejection at 40 kHz and 30 MHz
>45dB
Low pass roll off (slope) between 600 Ohm and ADSL Transmission Unit - Remote
>26dB
Inter-Modulation Distortion First and Second order products
>60dB
Envelope Delay 300 Hz - 2800 Hz
<100μs
600Ω Return Loss into phone side with 600Ω line termination with ATU-R
Single filter
SRL Low
>30dB
ERL
>14dB
SRL High
>17dB
+2 bridged filter
SRL Low
>36dB
ERL
>23dB
SRL High
>13dB
+4 bridged filter
SRL Low
>26dB
ERL
>15dB
SRL High
>8dB
Complex* Return Loss with ATU-R
Single filter
SRL Low
>27dB
Single filter
ERL
>14dB
Single filter
SRL High
>6dB
+2 bridged filters
SRL Low
>19dB
ERL
>14dB
SRL High
>3dB
+4 bridged filters
SRL Low
>15dB
ERL
>7dB
SRL High
>2dB
* 1330Ω in parallel with (100nfd in series with 348Ω)
DC Loop Current - Meets specifications between 20 and 100 milliamps DC
Connectors: RJ-11 Jack and RJ-11 Plug
RJ11 pins have
≥50
micro-inches of gold plating over
≥100
micro-inches of nickel plating
Dimensions: Length 2.12in (54mm), Width 1.21in (30.85mm), Height 0.72in (18.34mm), Cable Length = 3.78in (96mm)
±
1.0 mm on outline dimension.
±10.0
mm on length of cable
Compliant and listed with UL / CSA 60950, FCC CFR 47 Part 68
Pulse Singapore
- 135 Joo Seng Rd.#03-02PM Industrial Bldg.Singapore 368363 Tel: +65 6287 8998
Pulse Taiwan
- 3F, #198, Zhongyuan Rd., Zhongli City Taoyuan, County 32068, Taiwan Tel: +886 3435 6768
Pulse US
- 12220 World Trade Drive, San Diego, CA. 92128 Tel: +1 858 674 8100
www.pulseelectronics.com
Specifications subject to change without notice. Excelsus is a registered trade mark of Pulse Electronics.
© 2012 Pulse Electronics.
EX110.C (02/12)
