AP121C153KQX4A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> AP121C153KQX4A

AP121C153KQX4A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.015uF, Surface Mount, 1812, CHIP; CategoryPassive components capacitor; File Size445KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

AP121C153KQX4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.015uF, Surface Mount, 1812, CHIP

AP121C153KQX4A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1869811467
package instruction	CHIP
Reach Compliance Code	not_compliant
Country Of Origin	UK
ECCN code	EAR99
YTEOL	5.48
capacitance	0.015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.02 mm
JESD-609 code	e0
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

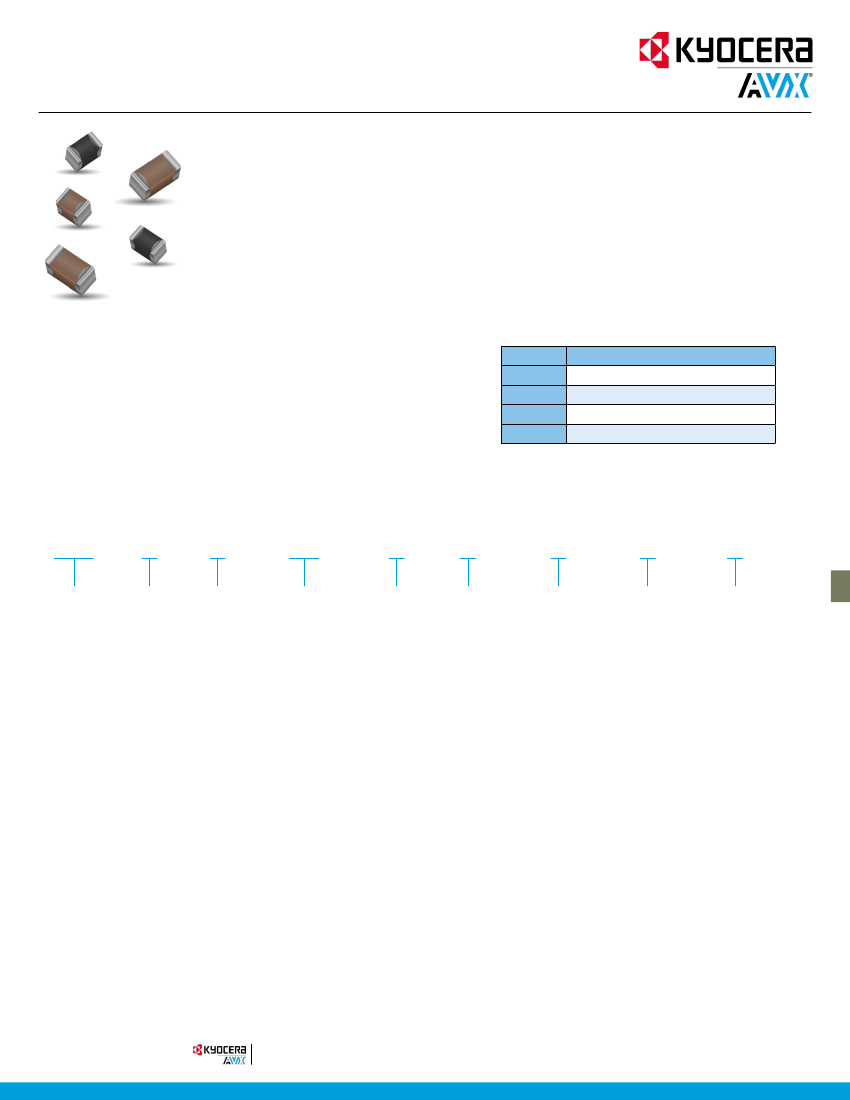

APS for COTS+ High Reliability Applications

General Specifications

Surface Mount NP0, X7R and X8R/L MLCCs

AVX's APS COTS+ series of multilayer ceramic capacitors offers the customer a high reliability solution with an ultralow

failure rate, <1ppb, in a variety of case sizes and voltages. The APS range encompasses a wide range of dielectric types to

meet the customer's requirements from low temperature/voltage capacitance change dielectric, NP0, to high preforming

capacitance voltage X7R to high temperature reliability dielectrics, X8R/L.

APS capacitors have a wider capacitance range than MIL spec parts that satisfies the need for higher CV demands and board

space saving requirements. Each production lot is extensively tested and removes the requirement for customer specific

drawings. The testing regime uses many of the MIL-STD test methods as per MIL-PRF-55681 and has a field failure rate of

less than 1 ppb. The APS testing series uses AVX’s unique in-house maverick testing detection system that eliminates infant

mortality failures.

Applications suitable for APS include Industrial, Telecommunications, Aviation, and Military. The APS is available with a

range of different termination finishes, Flexiterm®, Nickel / Tin and Tin with Pb1. Flexiterm® technology delivers improved

thermo-mechanical stress resistance.

AVX’S APS RELIABILITY

TEST SUMMARY

•

100% Visual Inspection

DPA

IR, DF, Cap, DWV

Maverick Lot Review

Thermal Shocl

85/85 Testing

Additional Life Testing

C of C with every Order

Quarterly Data Package

FEATURES

• The APS range has been extensively

reliability tested as standard resulting in

an ultralow failure rate, ≤1ppb

• The APS range is available with Flexiterm

that deliver’s high thermo-mechanical

stress resistance.

• High CV range enabling board space

saving requirements.

Dielectric

NP0

X7R

X8R

X8L

Temperature/Percentage Cap Change

-30ppm +30ppm from -55°C + 125°C

-15% +15% from -55°C to + 125°C

-15% +15% from -55°C to + 150°C

-15% +40% from -55°C to + 150°C

HOW TO ORDER

AP03

Size

AP03=0603

AP05=0805

AP06=1206

AP10=1210

AP12=1812

AP20=2220

Voltage

10V = Z

16V = Y

25V = 3

50V = 5

100V = 1

200V = 2

250V = V

500V = 7

Dielectric

NP0 = A

X7R = C

X8R = F

X8L = L

104

Capacitance

Code (In pF)

2 Sig. Digits +

Number of Zeros

e.g. 10 F = 106

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Failure

Rate

Q = APS

Terminations

Packaging

2 = 7" Reel

4 = 13" Reel

Special Code

A = Std.Product

T = Plated Ni and Sn

Z = FLEXITERM

B = 10% min lead

X = FLEXITERM

with

10% min lead

Z,X for X7R only

**RoHS compliant

NOTE: Contact factory for availability of Termination and Tolerance Options for Specific Part Number.

The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or

available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.

010920

–
