CER AMIC SURFACE MO UNT LOW PR OFILE
MICROPROCE SS OR CR YSTA L
ABMM1
Pb
RoHS
Compliant
APPLICATIONS:
• AT cut offers a tight tolerance
and stability ± 50ppm
• Computers, Modems, Microprocessors
• Communication, Test equipment
• PCMCIA
7.2 x 5.2 x 1.1 mm
| | | | | | | | | | | | | | |
FEATURES:
• Suitable for RoHS reflow profile
• Low height 1.1mm
• Ideal for thin equipment
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operation Mode
ABMM1 Series
6.0 MHz to 125 MHz
AT-cut
6.0 MHz ~ 33.0 MHz (Fundamental: Standard)
33.01 MHz ~ 125 MHz (Third-Overtone: Standard)
33.01 MHz ~ 50.0 MHz (Fundamental: See options)
- 10°C to + 60°C (see options)
- 40°C to + 85°C
± 50 ppm max. (see options)
± 50 ppm max. (see options)
See Table 1
7pF max.
18pF (see options)
500µW max., 100µW typical
± 5ppm max.
500Mohms min at 100Vdc ± 15V
Operating Temperature
Storage Temperature
Frequency Tolerance at +25°C
Frequency Stability over the
Operating Temp. (Ref to +25°C)
Equivalent Series Resistance
Shunt Capacitance C
0
Load Capacitance C
L
Drive Level
Aging at 25°C First Year
Insulation Resistance
TABLE 1
ESR (Ω)
µαξ.
ESR (Ω)
µαξ.
Frequency (MHz)
Frequency (MHz)
6.000 - 11.999(Fund)
70
40
33.000 - 125.00(3rd O/T)
12.000 - 20.000(Fund)
50
80
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABMM1 - Frequency -
Frequency in MHz
e.g. 14.31818 MHz
26.000 MHz
-R
-
-
-
-
-
Packaging
Load Capacitance
Please specify CL in pF or
S for Series (8 to 33pF)
Consult with ABRACON for
CL value under 8pF.
Ω
Operating Temp.
E
0°C ~ +70°C
B
-20°C ~ +70°C
C
-30°C ~ +70°C
N
-30°C ~ +85°C
D
-40°C ~ +85°C
J****
-40°C to +105°C
K****
-40°C to +125°C
Freq. Tolerance
1
± 10 ppm max.
7
± 15 ppm max.
2
± 20 ppm max.
3
± 25 ppm max.
4
± 30 ppm max.
Blank
T
Bulk
Tape & Reel
F for Fund. AT>=33MHz
Mode
ESR if other than STD
RXXX (Value in
Ω
).
If it is custom
** -10°C TO 60°C only
*** Temp option E, B and -10 to +60 C only
?
**** Freq. stability ±50ppm and ±100ppm only.
Contact ABRACON for tighter freq. stability.
Freq. Stability
U**
± 10 ppm max.
G***
± 15 ppm max.
X
± 20 ppm max.
W
± 25 ppm max.
Y
± 30 ppm max.
H
± 35 ppm max.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 07.08.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
CERAMIC SURFACE MOUNT LOW PROFILE
MICROPROCESSOR CRYSTAL
CERAMIC SURFACE MOUNT LOW
ABMM1

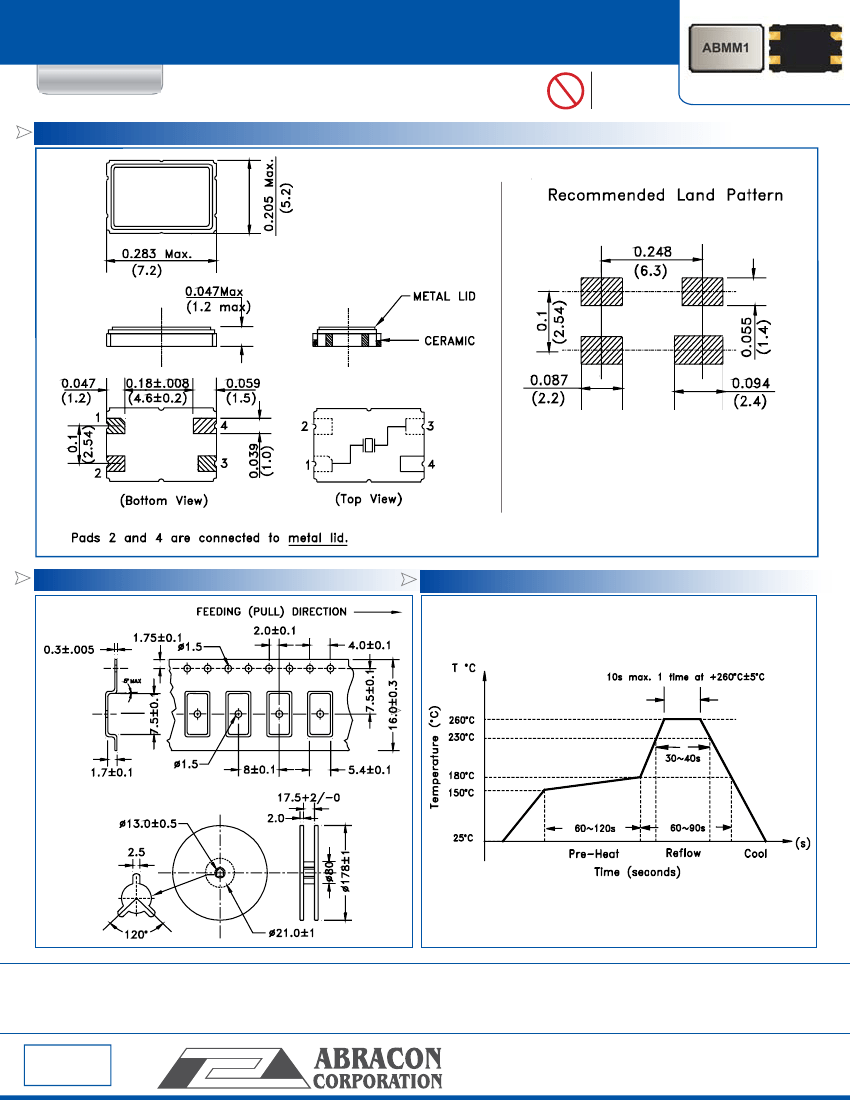

OUTLINE DRAWING:
Pb
RoHS
Compliant
7.2 x 5.2 x 1.1 mm
| | | | | | | | | | | | | | |
Dimensions: Inches (mm)
TAPE & REEL:
Dimensions: (mm)
Tape and reel (1,000pcs/reel)
REFLOW PROFILE
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 07.08.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
