821002B04000

Description
heatsink stamp 6.4x13.3x19.1mm
CategoryThermal management products
File Size243KB，1 Pages
ManufacturerComair Rotron
Environmental Compliance
Download Datasheet Parametric View All

821002B04000 Overview

heatsink stamp 6.4x13.3x19.1mm

821002B04000 Parametric

Parameter NameAttribute value
Datasheets
821002B04000
Fans, Blowers, Impellers Catalog
Product Photos
821002B04000
Catalog Drawings
821x02B00000
Standard Package50
CategoryFans, Thermal Manageme
FamilyThermal - Heat Sinks
TypeBoard Level, Vertical
Package CooledTO-220
Attachment MethodBolt On and PC Pi
ShapeRectangular, Fins
Length0.750" (19.05mm)
Width0.520" (13.21mm)
Diamete-
Height Off Base (Height of Fin)0.250" (6.35mm)
Power Dissipation @ Temperature Rise1.5W @ 50°C
Thermal Resistance @ Forced Air Flow16.0°C/W @ 200 LFM
Thermal Resistance @ Natural-
MaterialAluminum
Material FinishBlack Anodized
Other Names821002B04000-NDCR489

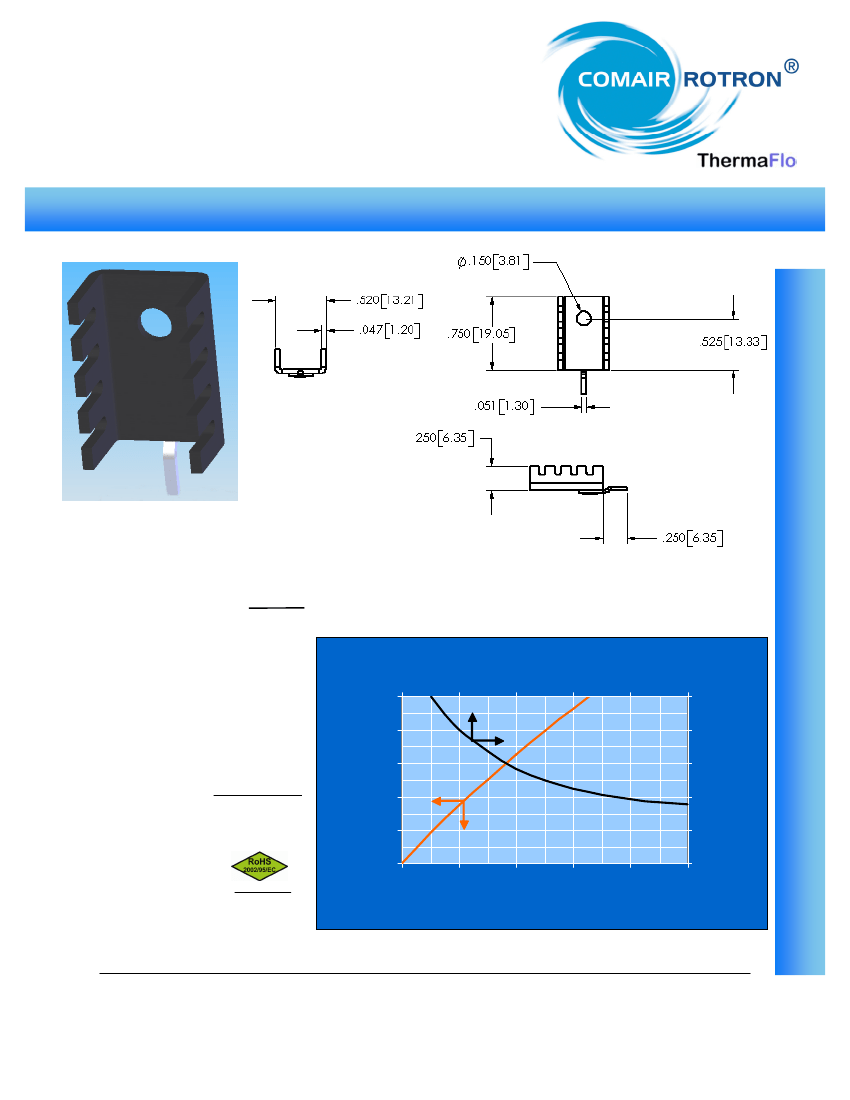

Preview

Download Datasheet
Board Level
Heat Sinks
P/N: 821002B04000
TO-220
PRODUCT SPECIFICATIONS
• Devices: TO-220
• Size: 6.4 x 13.3 x 19.1 mm
• Material: Aluminum, 1.2 mm Thick
• Type: Stamped
• Weight: 1.3 grams
• PCB Mounting: Solderable Tab
• Finish: Black Anodized
• Package: Bulk
• Accessories: Hardware & Thermal Interface
Material
Air Velocity - LFM
0
Temp Rise Above Ambient -
o
C
(Mounting Surface)
100
80
60
40
20
0
0
1
2
3
4
5
Heat Dissipated - Watts
200
400
600
800
1000
20
16
12
8
4
0
Thermal Resistance -
o
C / Watt
(Mounting Surface to Ambient)
FEATURES & BENEFITS
• Hole for Device Attachment
•
Vertical Mount Via Solderable Tab
• RoHS Compliant
CUSTOMIZED HEATSINKS
• Specialized Tabs, Plating
• Specialized Body Configurations
• Contact Applications Engineering
COMAIR ROTRON, INC
8929 Terman Court, San Diego, CA 92121
Ph (858) 348-6200 Fax (858) 566-4577
E-mail: sales@comairrotron.com,
Web: www.comairrotron.com
