ThermaTEC
™
Series HT4,12,F2,4040
Innovative
Technology
for a
Connected
World
Thermoelectric Modules
The ThermaTEC
™
Series of thermoelectric modules (TEMs) are designed to operate under
cycling conditions or high temperature applications.
This product line is available in multiple configurations and is ideal for applications
that require both heating and cooling mode (reverse polarity) or power generation.
Assembled with proprietary solder construction, Bismuth Telluride semiconductor material
and thermally conductive Aluminum Oxide ceramics, the ThermaTEC
™
Series is designed
for higher current and larger heat-pumping applications.
FEaTurES
•
•
•
•
•
•
Thermal Cycling Durability
Power Cycling Reliability
Precise Temperature Control
Strong Lead Attachment
RoHS Compliant
Continuous Operation
at High Temperatures
appliCaTionS
•
•
•
•
•
•
Analytical Instrumentation
PCR Cyclers
Thermal Test Sockets
Electronic Enclosure Cooling
Chillers (Liquid Cooling)
Power Generation
perforMance SpecificaTionS
hot Side Temperature (°c)
Qmax (Watts)
delta Tmax (°c)
imax (amps)
Vmax (Volts)
Module resistance (ohms)
Suffix ThickneSS
(prior To Tinning)
11
Ta
TB
0.163”± 0.005”
0.163”± 0.001”
0.163”± 0.0005”
25°C
33.0
64
3.8
14.5
3.49
flaTneSS &
paralleliSM
0.002” / 0.0035”
0.001” / 0.001”
0.0005” / 0.0005”
50°C
36.0
75
3.8
16.4
3.93
hoT
face
Lapped
Lapped
Lapped
cold
face
Lapped
Lapped
Lapped
lead
length
6.0
6.0”
6.0”
SEaling opTion
Suffix
r
e
SealanT color
RTV
Epoxy
White
Black
TeMp range
-60 to 204 °C
-55 to 150 °C
deScripTion
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
ThermaTEC
™
Series HT4,12,F2,4040
Innovative
Technology
for a
Connected
World
Thermoelectric Modules

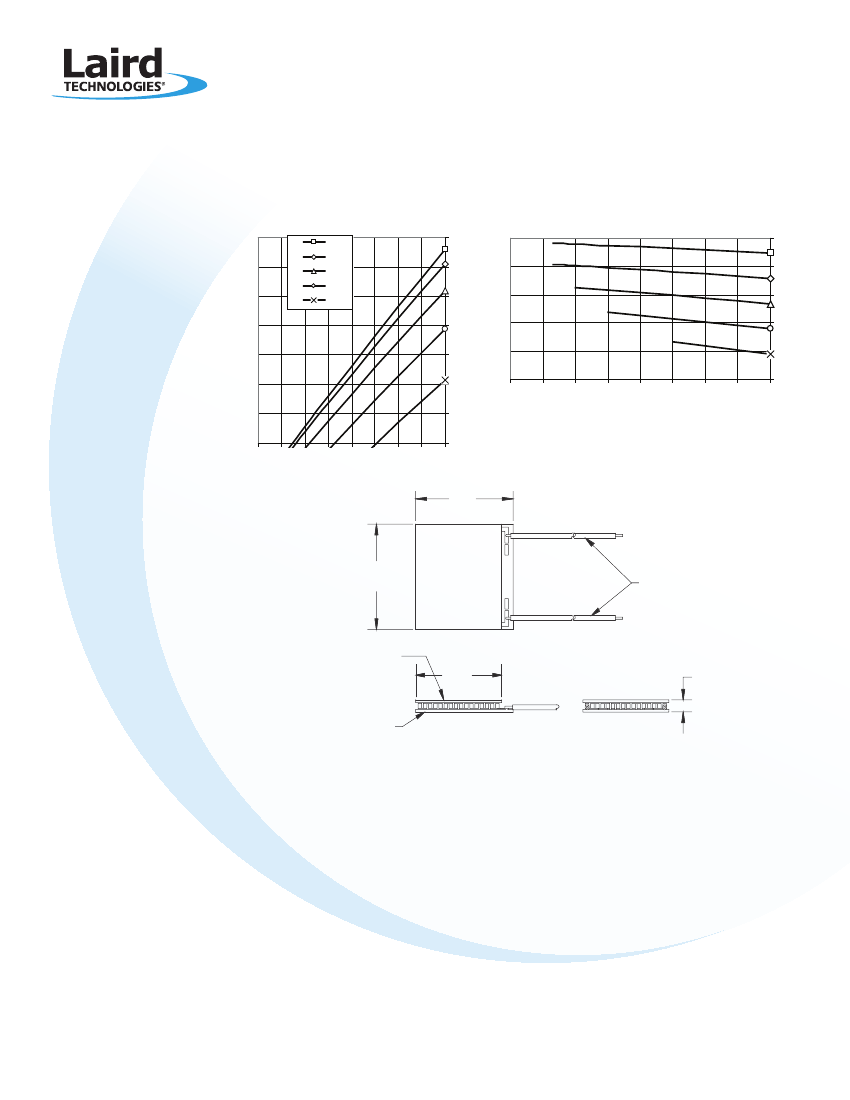

Performance Curves at Th = 25°C
THErmo
3.8
3.1
2.3
1.5
0.8
ElECTriC
35.0
30.0
25.0
20.0
15.0
10.0
5.0
0.0
15.0
12.0
9.0
Qc (W)
6.0
3.0
0.0
80
70
60
50
40
30
20
10
0
Delta T (°C)
80
70
60
50
40
30
20
10
0
Delta T (°C)
1.73
(43.9)
(+) RED
1.57
(39.9)
(-) BLACK
AWG 18 TEFLON
(SEE TABLE)
COLD FACE
(SEE TABLE)
1.57
(39.9)
THICKNESS
(SEE TABLE)
HOT FACE
(SEE TABLE)
Ceramic Material: Alumina (Al
2
O
3
)
Solder Construction: 271°C, Proprietary
opEraTing TipS
• Max Operating Temperature: 175°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
THR-DS-HT4,12,F2,4040 0509
Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials
rests with the end user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability,
or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages
of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies terms and conditions of sale in effect from time to time, a copy of which will be furnished
upon request. For further information please visit our website at www.lairdtech.com Alternatively contact: sales@lairdtech.com. Bluetooth
®
is a trademark owned by Bluetooth SIG,
Inc., USA and licensed to Laird Technologies.
® 2008 All Rights Reserved. Laird Technologies is a registered trademark of Laird Technologies, Inc.
Voltage (V)
