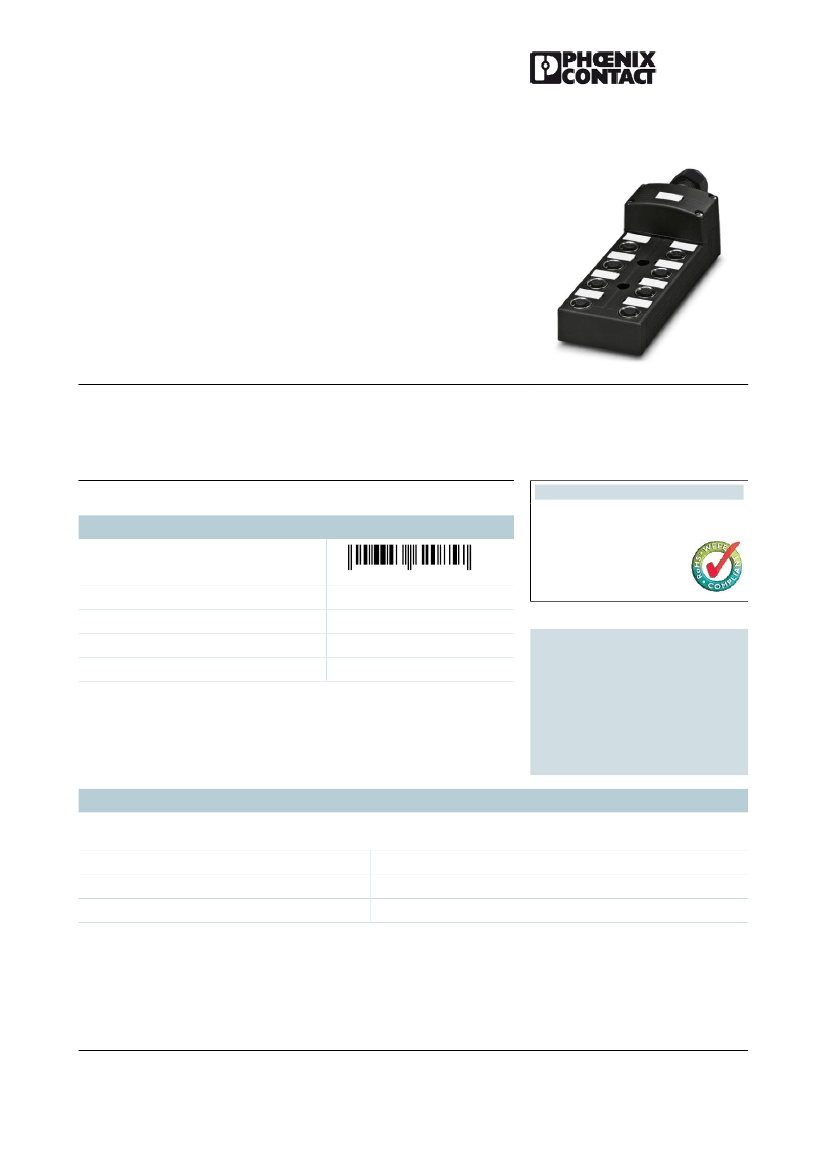

SACB-8/16-C OD
Order No.: 1457380
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1457380
Sensor/actuator box, M12 female connector, Number of slots: 8,
Number of positions: 5, Slot assignment: Double, Status indication:
No; Master cable connection: Pluggable screw connection 180°,
Shielding: No
Product notes
Commercial data
GTIN (EAN)
4
046356
620857
WEEE/RoHS-compliant since:
09/08/2010
sales group
Pack
Customs tariff
Catalog page information
D100
1 pcs.
85366990
Page 222 (PC-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated voltage
Max. operating voltage U
max
Current carrying capacity per I/O signal
120 V
135 V
2A
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Jul 26, 2011
SACB-8/16-C OD
Order No.: 1457380
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1457380
Current carrying capacity per slot
Total rated current
Number of positions
Number of slots
Degree of protection
Ambient temperature (operation)
Sensor/actuator connection system
Master cable connection data
Connection method
Conductor cross-section min. (signal)
Conductor cross-section max. (signal)
Conductor cross-section AWG min. (signal)
Conductor cross-section AWG max. (signal)
Conductor cross-section min. (energy)
Conductor cross-section max. (energy)
Conductor cross-section AWG min. (energy)
Conductor cross-section AWG max. (energy)
External cable diameter min.
External cable diameter max.
Stripping length
Tightening torque, cover screw
Tightening torque, union nut
Tightening torque slot sensor/actuator cable
Tightening torque screw plug
Insulation material
Housing material
Material of the moulding mass
Contact material
Contact surface material
Contact carrier material
Material of contact, master cable side
Material of contact surface, master cable side
Material of the contact carrier on the master cable
side
4A
10 A
2x 8 A (For electrical isolation)
5
8
IP65/67
-30 °C ... 80 °C
M12 female connector
Pluggable screw connection
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
26
16
7 mm
12 mm
7 mm
0.35 Nm
2.5 Nm
0.4 Nm
0.4 Nm
PBT
PUR
Cu alloy
Gold-plated
PA
CU alloy
Gold-plated
PA 66 V0
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Jul 26, 2011
SACB-8/16-C OD
Order No.: 1457380
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1457380
Material of threaded sleeve
Material of threaded sleeve surface
Material, O-ring
Pin assignment
Slot/position = Wire color or connection
Zinc die-cast
tin-plated
FPM
1 / 4 (A) = 1 / 4
1 / 2 (B) = 1 / 2
2 / 4 (A) = 2 / 4
2 / 2 (B) = 2 / 2
3 / 4 (A) = 3 / 4
3 / 2 (B) = 3 / 2
4 / 4 (A) = 4 / 4
4 / 2 (B) = 4 / 2
5 / 4 (A) = 5 / 4
5 / 2 (B) = 5 / 2
6 / 4 (A) = 6 / 4
6 / 2 (B) = 6 / 2
7 / 4 (A) = 7 / 4
7 / 2 (B) = 7 / 2
8 / 4 (A) = 8 / 4
8 / 2 (B) = 8 / 2
1-8 / 1 (+ 120 V) = U
N
1-8 / 3 (0 V) = 0 V
1-8 / 5 (PE) = PE
Accessories
Item
General
1559893
SACB-16X0,5/ 3X1,0-200,0 PUR
Master cable for sensor/actuator boxes, with PE conductor,
unshielded, material PUR/PP, 19-pos., 16 x 0.50 mm² and 3 x
1.00 mm², length: 200 m on drum
Master cable for sensor/actuator boxes, 19-wire, unshielded,
PUR halogen-free, drag chain and robot compatible, black outer
sheath, 16 x 0.5 mm² and 3 x 1.0 mm²
Master cable for sensor/actuator boxes, with PE conductor,
unshielded, material PUR/PP, 19-pos., 16 x 0.50 mm² and 3 x
1.00 mm², length: 50 m
Designation
Description
1402304
SACB-16X0,5/ 3X1,0-50,0 80MC
1503373
SACB-16X0,5/ 3X1,0-50,0 PUR
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Jul 26, 2011
SACB-8/16-C OD
Order No.: 1457380
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1457380
1430938
SACB-16X0,5/ 3X1,0-50,0
VPUR
Master cable for sensor/actuator boxes, with PE conductor,
unshielded, material PUR/PP, 19-pos., 16 x 0.50 mm² and 3 x
1.00 mm², length: 50 m
Marking
0804963
SS-ZB 17,5 WH
Contactor marker Zack strip, unprinted: 5-section, for snapping
into equipment and components with special marker carrier, can
be labeled with M-PEN, CMS system or label BMKT 17.5 x 8,
lettering field: 17.5 x 8 mm, color: white
Protection and sealing elements
1555538
PROT-M12 FB
M12 high-grade steel screw plug, for unoccupied M12 sockets of
the sensor/actuator cables, boxes and flush-type connectors for
the food industry
Tools
1212513
1206450
1208429
SAC BIT M12-W14
SZK PZ1 VDE
TSD 04 SAC
SAC nut, for assembling M12 connectors with hexagonal high-
grade steel knurl, with 4 mm hexagonal drive
Screwdriver, PZ crosshead, VDE insulated, size: PZ 1 x 80 mm,
2-component grip, with non-slip grip
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm
hexagonal drive for M12 connectors
Diagrams/Drawings

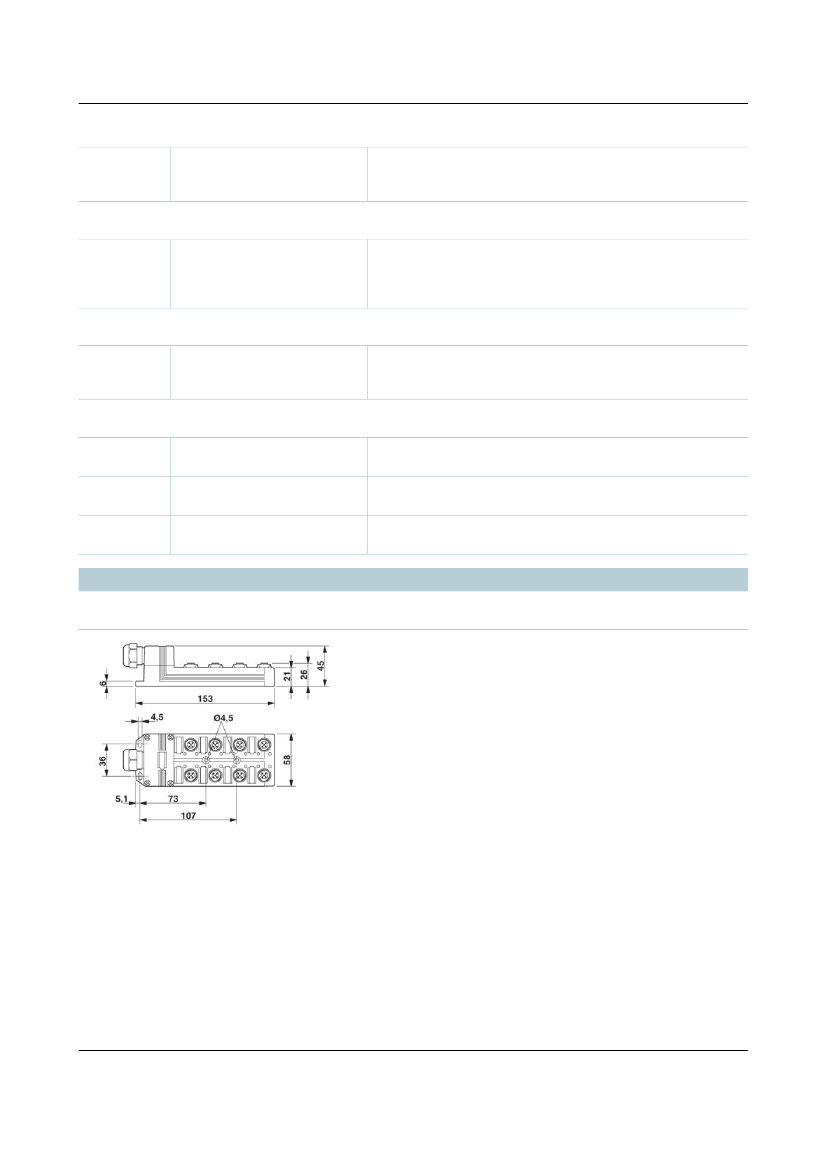

Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Jul 26, 2011
SACB-8/16-C OD
Order No.: 1457380
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1457380

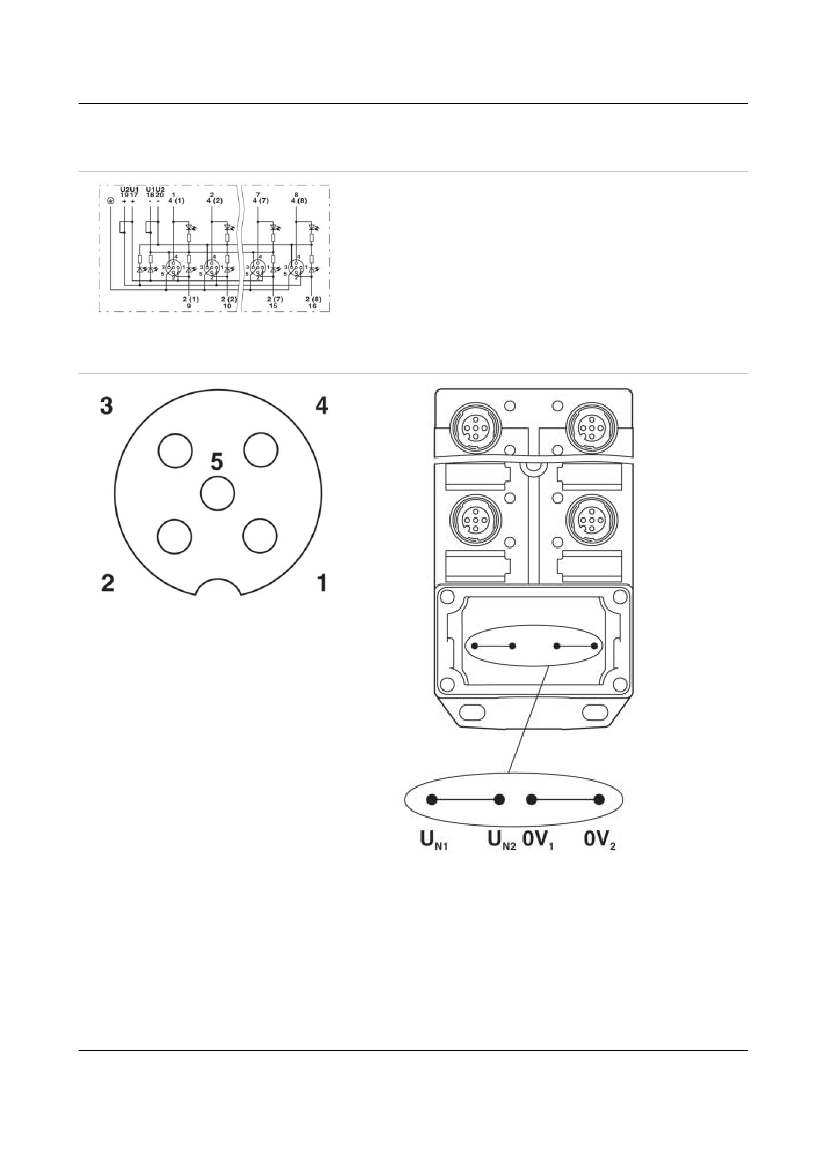

Circuit diagram
Schematic diagram
M12 slot, socket, 5-pos.
Potential U
N1
and U
N2
bridged
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Jul 26, 2011
