Data sheet
RS F40 INIT32 LMZF
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

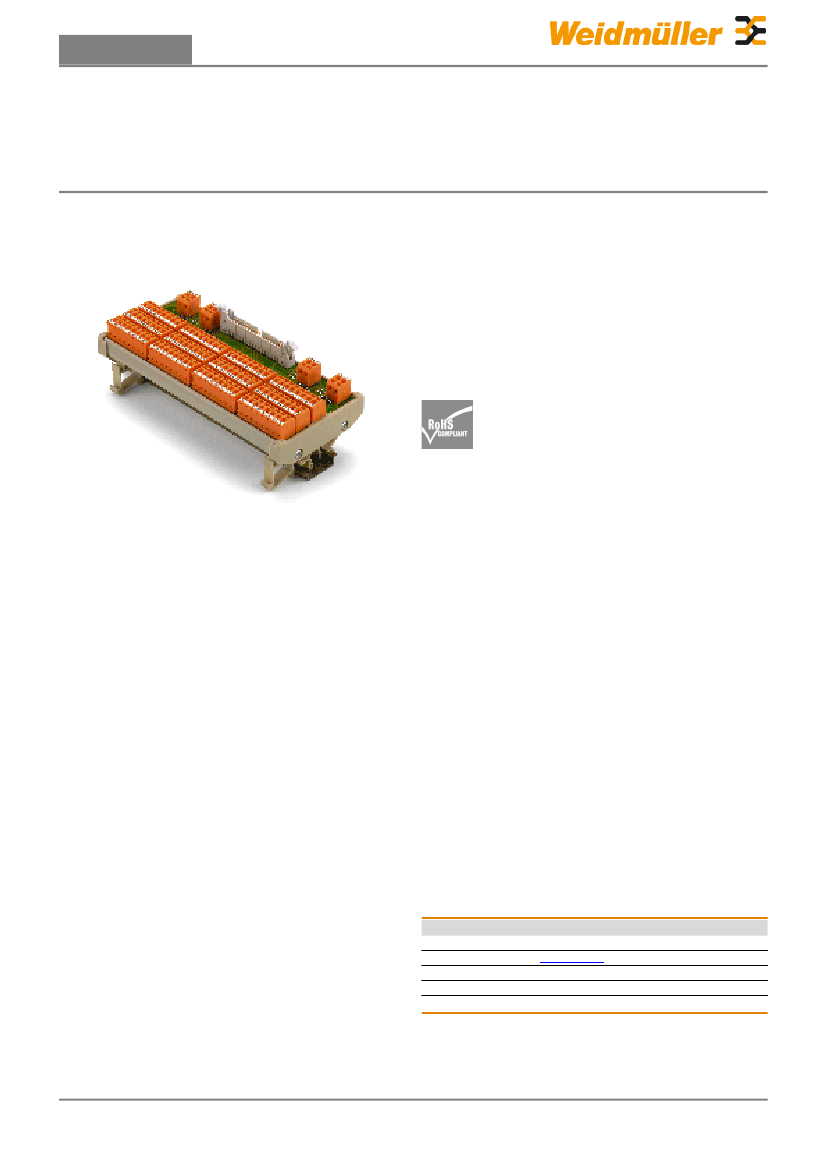

Passive RS F40 or RS F10 interface elements for 32
or 8 signals: these enable an efficient connection of
peripherals (sensors and actuators) to the input/output
modules of the PLC using pre-assembled cables.
The main characteristics are:
• Tension-clamp or screw connection system
• Signals grouped according to bytes.
• 1-, 2- or 3-wire technology.
• Extremely compact modules in RS 45 profile section for
installation on standard TS35 mounting rail.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS F40 INIT32 LMZF
8430980000
2-wire, Tension clamp connection
4008190036188
1 pc(s).
Creation date December 18, 2013 9:19:21 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RS F40 INIT32 LMZF
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
185 mm
73 mm
Width
Net weight
Dimensions and weights
Length
Height
87 mm
314 g
Temperatures
Operating temperature
-25...+50°C
Storage temperature
-40...+60 °C
General data
LED status display per channel
LED status of the supply voltage
No
No
Fuse per channel
Power supply fuse
No
No
Connection data
Connection on control side
Connection (field side)
Wiring system
Connector according
IEC60603-13/DIN41651
LMNZF 5.08mm
2-wire
Number of poles (control side)
Connection supply
40-pole plug
LMNZF 5.08mm
Ratings data
Operating voltage
According to
Surge voltage category
Insulation test voltage
50 V AC
Max. current per channel
1A
Insulation coordination (EN50178)
DIN EN 50178
III
0.35 kVAC
Rated insulation voltage
Pollution severity level
< 50 V AC
2
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tension clamp connection
1.5 mm²
1.5 mm²
1.5 mm²
2.5 mm²
AWG 14
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Min. wire cross-section, AWG [field]
Stripping length
0.15 mm²
0.5 mm²
0.5 mm²
1.5 mm²
AWG 26
7 mm
Supply connection
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Wire cross-section, min. AWG
Stripping length
Tension clamp connection
1.5 mm²
1.5 mm²
1.5 mm²
AWG 26
7 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Wire cross-section, max. AWG
0.15 mm²
0.5 mm²
0.5 mm²
1.5 mm²
AWG 14
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Creation date December 18, 2013 9:19:21 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
RS F40 INIT32 LMZF
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Factory setting: Common negative pole
Product information
Descriptive text technical data
Approvals
Approvals
ROHS
Conform
Creation date December 18, 2013 9:19:21 PM CET
Catalogue status / We reserve the right to make technical changes.
3
Data sheet
RS F40 INIT32 LMZF
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

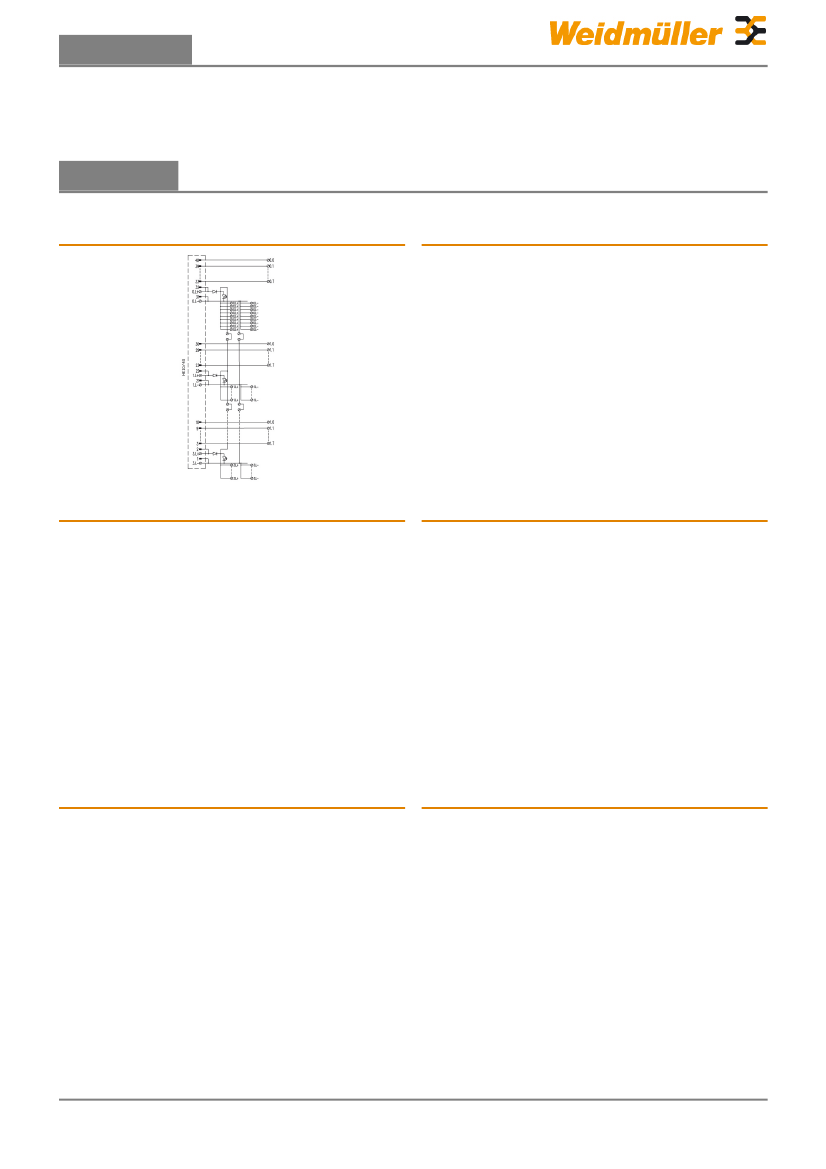

Drawings
Creation date December 18, 2013 9:19:21 PM CET
Catalogue status / We reserve the right to make technical changes.
4
