CN34JT1301 datasheet, PDF - EEWORLD Datasheet

CN34JT1301: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 62.5W, 1300ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,; CategoryPassive components The resistor; File Size456KB，10 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

CN34JT1301 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 62.5W, 1300ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	807460576
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	8.2
structure	Chip
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	1300 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	1206
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Bright Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Document No

TCN-XX0S001B

2003/9/12

1/10

Thick Film Chip Resistor Arrays

Thick Film Chip Resistor Networks

( Standard )

Issued date

page

Scope :

This specification applies for the CN series of thick film chip resistor arrays &

chip resistor networks made by TA-I.

2. Construction , Dimensions , Schematic :

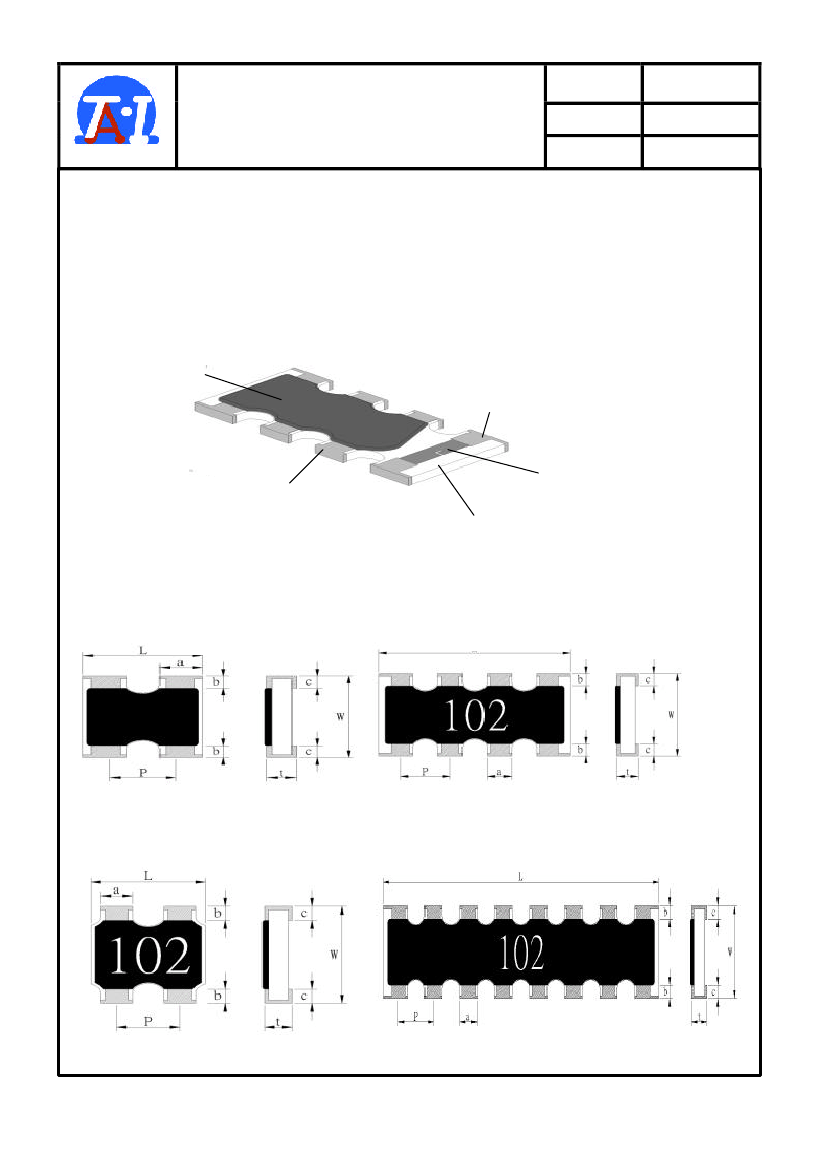

2.1 Construction :

Over Coat

Conductor

Resistive Element

Plating Ni + Sn / Pb

Ni + Sn

Ceramic Substrate

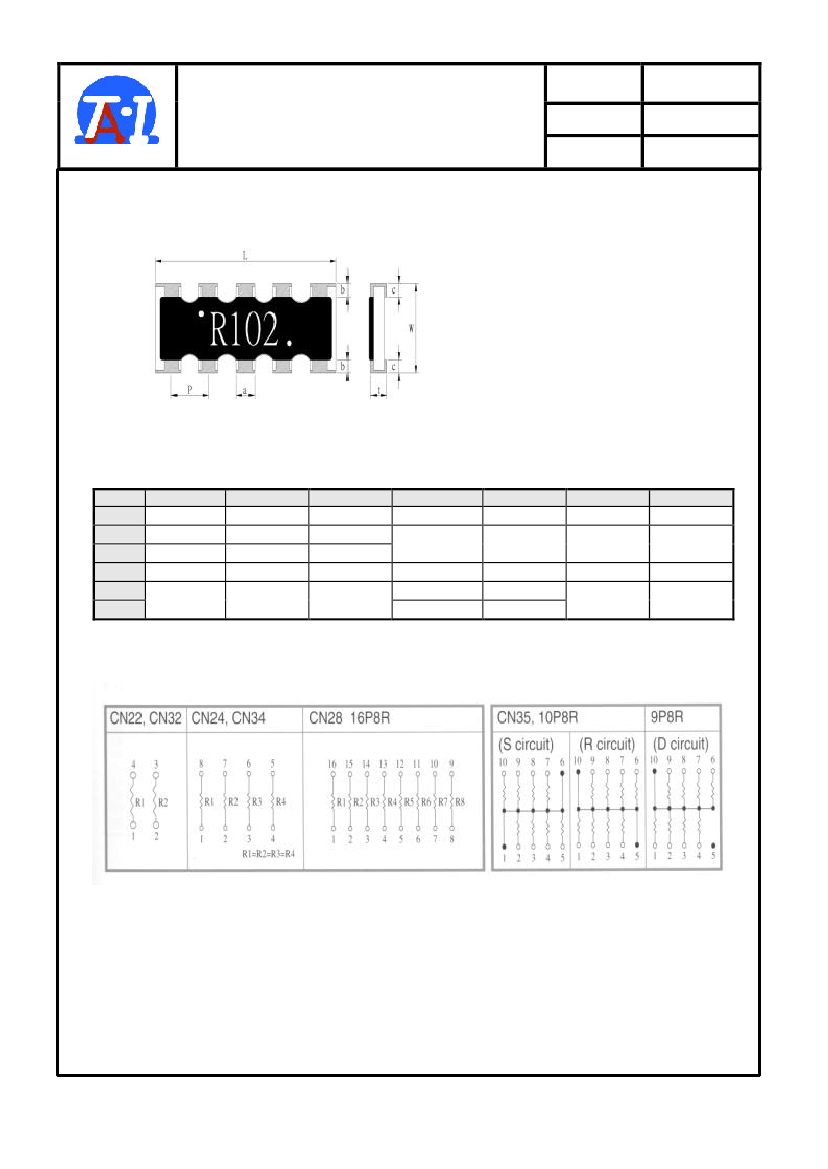

2.1.2 Chip Resistor Arrays

CN22

CN24/34

CN32

CN28

TA-I TECHNOLOGY CO., LTD
