5962R9573901VCC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 5962R9573901VCC

Preview

5962R9573901VCC: DescriptionHCT SERIES, QUAD 2-INPUT NAND GATE, CDIP14; Categorylogic logic; File Size226KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9573901VCC Overview

HCT SERIES, QUAD 2-INPUT NAND GATE, CDIP14

5962R9573901VCC Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknow
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
length	19.43 mm
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Su	25 ns
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Schmitt trigger	YES
Filter level	38535V;38534K;883S
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm
Base Number Matches	1

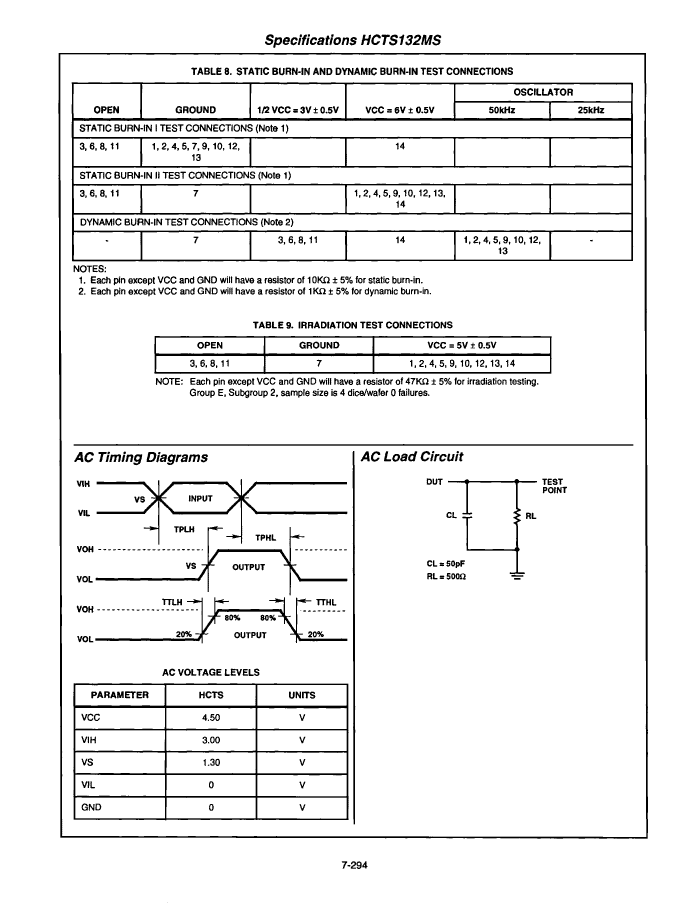

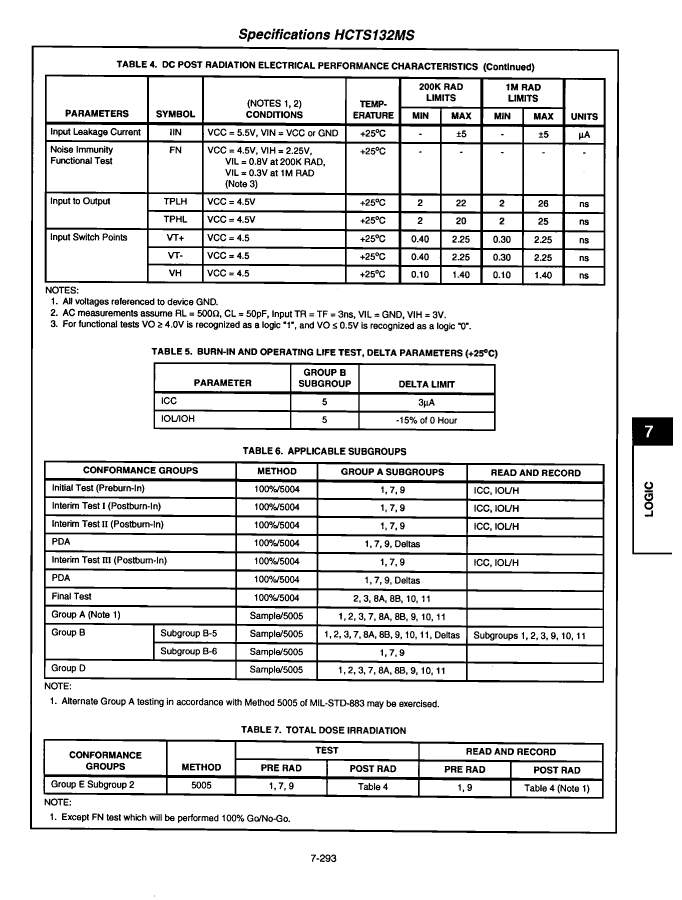

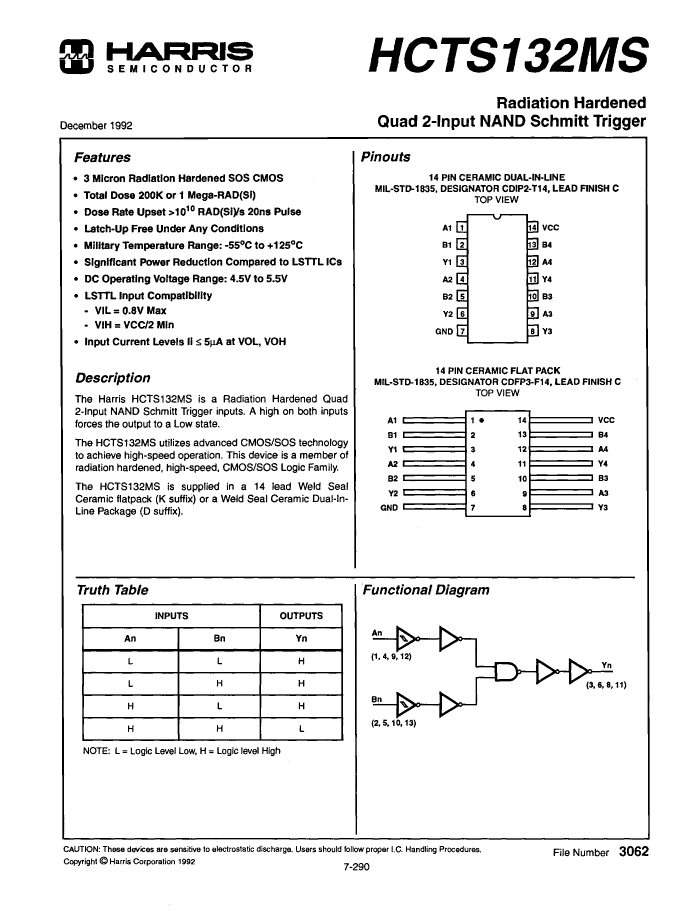

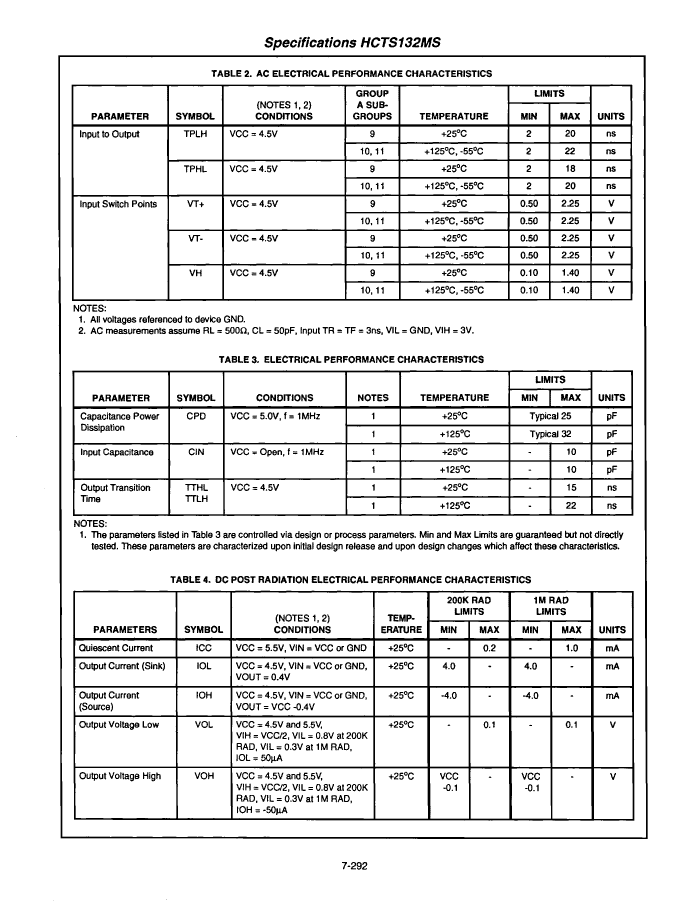

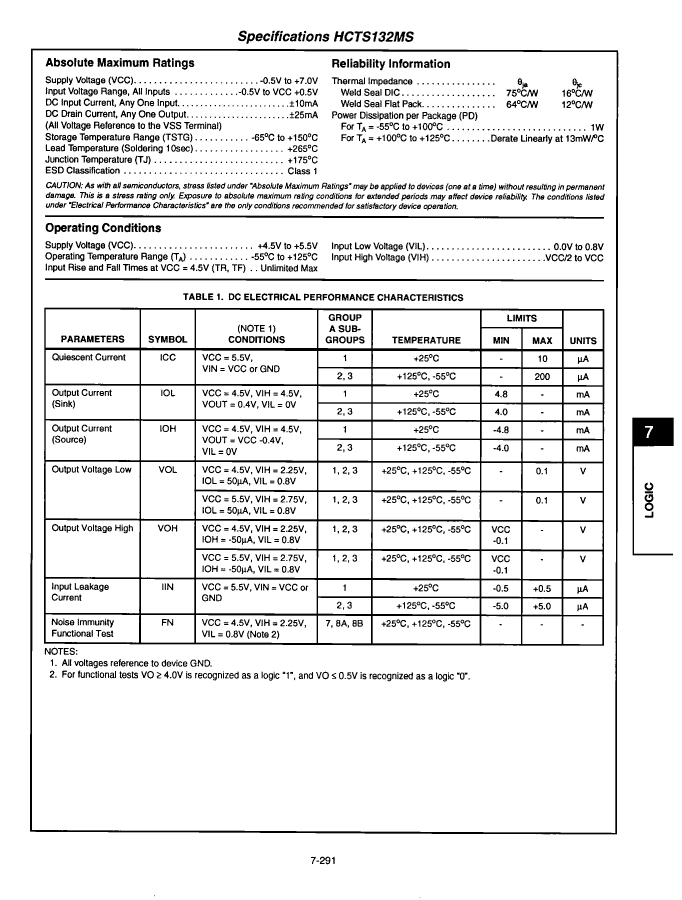

Preview

Download Datasheet

View All

5962R9573901VCC Related Products

	5962R9573901VCC	5962R9573901VXC	HCTS132KMSH	HCTS132DMSH
Description	HCT SERIES, QUAD 2-INPUT NAND GATE, CDIP14	HCT SERIES, QUAD 2-INPUT NAND GATE, CDFP14	IC,LOGIC GATE,QUAD 2-INPUT NAND,CMOS, RAD HARD,FP,14PIN,CERAMIC	IC,LOGIC GATE,QUAD 2-INPUT NAND,CMOS, RAD HARD,DIP,14PIN,CERAMIC
Reach Compliance Code	unknow	unknown	not_compliant	not_compliant
JESD-30 code	R-CDIP-T14	R-CDFP-F14	R-XDFP-F14	R-XDIP-T14
JESD-609 code	e4	e4	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC
encapsulated code	DIP	DFP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES	YES
Filter level	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
Base Number Matches	1	1	1	1
Prop。Delay @ Nom-Sup	-	25 ns	22 ns	22 ns
