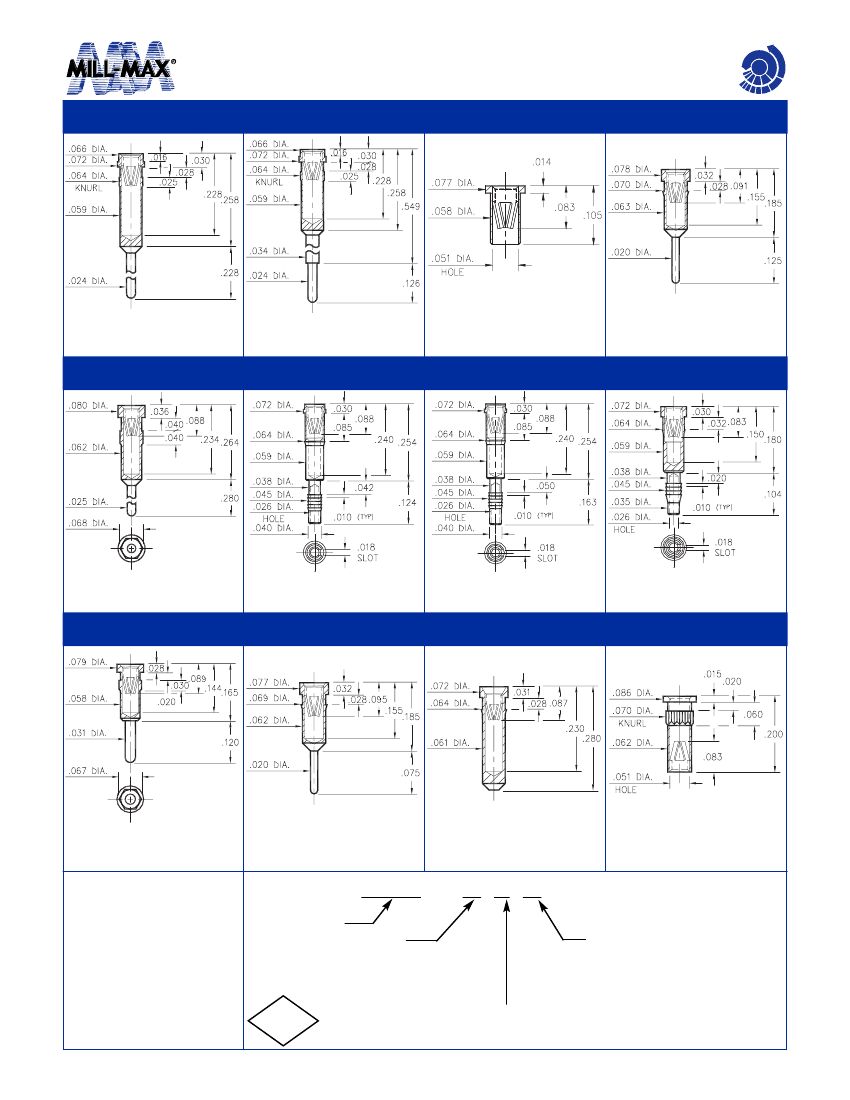

PIN RECEPTACLES
for .025” - .037” diameter pins
and .025” square pins
PR
E
CI
M
ON
S
I
CHI
A
PINS
NE
D
1305
1306
7305
0400
7305-0-15-XX-47-XX-10-0
1305-0-15-XX-47-XX-04-0
Press-fit in .061 mounting hole
1306-0-15-XX-47-XX-04-0
Press-fit in .061 mounting hole.
Solder mount in .060 min. mounting hole
Also available on 24mm wide carrier
tape: 1,500 parts per 13” reel.
Order as: 7305-0-57-XX-47-XX-10-0
0400-0-15-XX-47-XX-04-0
Press-fit in .067 mounting hole.
0335
4614
4615
7614
0335-0-15-XX-47-XX-04-0
Hex press-fit in .064
plated thru hole
4614-0-31-XX-47-XX-04-0
Compliant press-fit in .040±.003 plated
hole. For .060→.100 thick board.
4615-0-31-XX-47-XX-04-0
Compliant press-fit in .040±.003 plated
hole. For .090→.130 thick board.
7614-0-31-XX-47-XX-04-0
Compliant press-fit in .040±.003 plated
hole. For .060→.100 thick board.
8401
2400
6857
9393
8401-0-15-XX-47-XX-04-0
Hex press-fit in .063
plated thru hole
2400-0-15-XX-47-XX-04-0
Press-fit in .066 mounting hole.
6857-0-15-XX-47-XX-10-0
Press-fit in .061 mounting hole.
9393-0-15-XX-47-XX-10-0
Press-fit in .067 mounting hole.
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - 47 - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
RoHS
SPECIFY CONTACT FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
2002/95/EC
CONTACT
#47
CONTACT (DATA ON PAGE 221)
w w w. m i l l - m a x . c o m
149
516-922-6000
