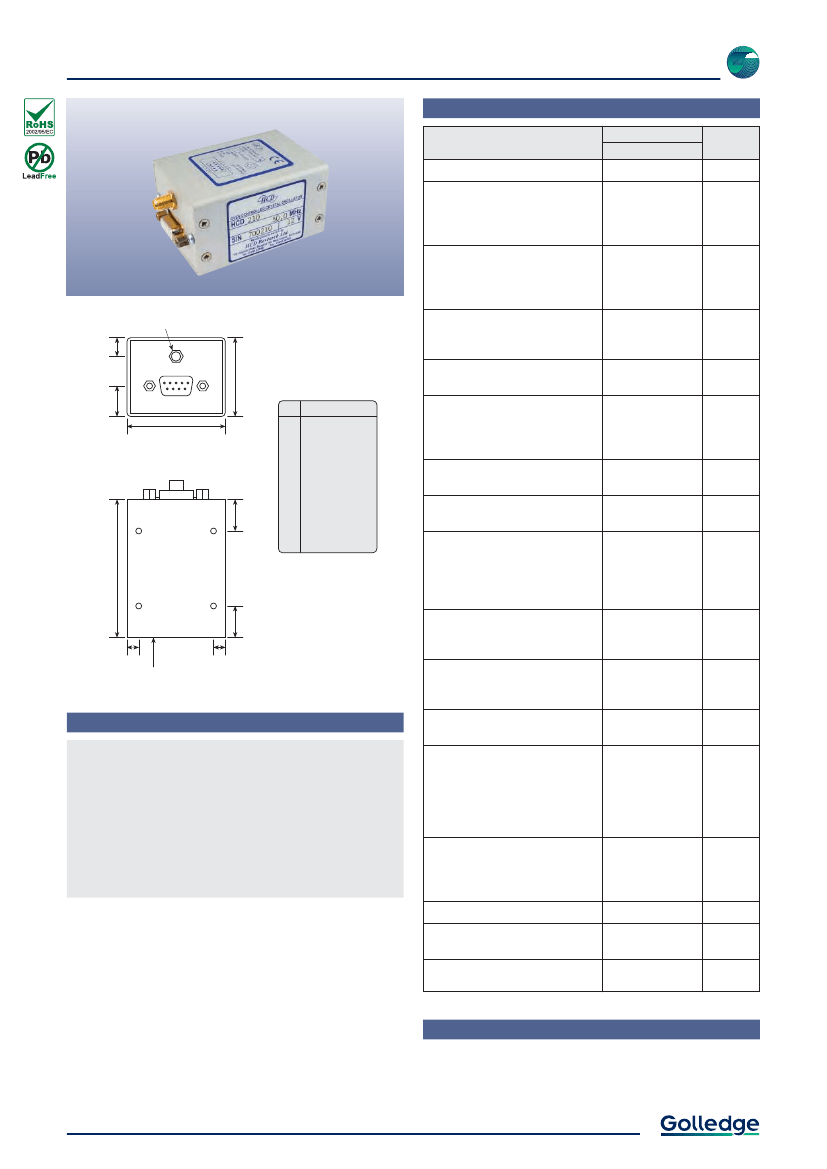

OCXO Sine Output
Specifications
HCD210
Parameters
Frequency range:
5.0 ~ 100.0MHz
Ageing per day (at despatch):
< ±1x10
-8
< ±5x10
-9
< ±3x10
-9
Frequency stability:
< ±5x10
-7
per year
< ±1x10
-7
per 5% change in V
DD
< ±5x10
-10
per 10% change in load
Product
HCD210
Option
Codes
M
N
A
D
F
A
B
C
Optional SMA/B/C/BNC/MCX
RF connector
10.00
40.00
9
Short term stability:
< ±5x10
-12
over 1 sec (5.0MHz)
< ±1x10
-11
over 1 sec (10.0MHz)
Temperature stability:
PIN
CONNECTION
Freq adjust (+ve)
Fine adjust
Freq adjust (-ve)
Isolated RF output
Isolated RF output
+ Supply
DO NOT USE
- Supply
Case
1
< ±1x10
-7
< ±5x10
-8
15.00
50.00
1
2
3
4
5
6
15.90
7
8
9
Operating temperature range:
0 to +50°C
-20 to +60°C
-20 to +70°C
Storage temperature range:
-40 to +90°C
Output waveform:
Sine wave, 1.5V p-p ±0.5V into 50Ω
Frequency adjustment:
±2x10
-6
(typ) over +0.5 to +6.0V
(sufficient for 10 years ageing min)
Stabilised +6.0V supply provided
Mechanical ±5x10
-7
Supply voltage (V
DD
):
+12V (±0.5V)
+15V (±0.5V)
+18V (±0.5V)
Power consumption:
4.5W max at switch on
1.0W typ when stabilised at 25°C
Warm up:
< ±5x10
-8
after 10mins at +25°C
Phase noise (@ 10.0MHz):
< -110 dBc/Hz @ 10Hz
< -130 dBc/Hz @ 100Hz
< -145 dBc/Hz @ 1kHz
< -150 dBc/Hz @ 10kHz
< -150 dBc/Hz @ 50kHz
External connectors:
D9
D9 + single SMA
D9 + twin SMA
Other (single or twin SMB/C/MCX)
Harmonics:
Shock:
< -30dB wrt carrier
IEC 68-2-27 Test Ea
50G for 11ms
A
A
70.00
Fixing holes M3 tapped.
Penetration 5mm max.
A
A
15.90
D
A
G
specify
N
P
R
5.90
5.90
Mechanical frequency
adjustment on this face
Features
Frequencies up to 100MHz
Internal multiplier above 50.0MHz
Single oven & oscillator supply
12V supply standard, 15V or 18V optional
Custom options available
Vibration:
IEC 68-2-06 Test Fc
10-55Hz, 1.5mm. 55-500Hz, 10G
Standard.
Optional - Please specify required code(s) when ordering
Ordering Information
Product name + option codes (if any) + frequency
eg:
HCD210/BNDNA 10.0MHz
Option code X (eg HCD210/X) denotes a custom specification.
