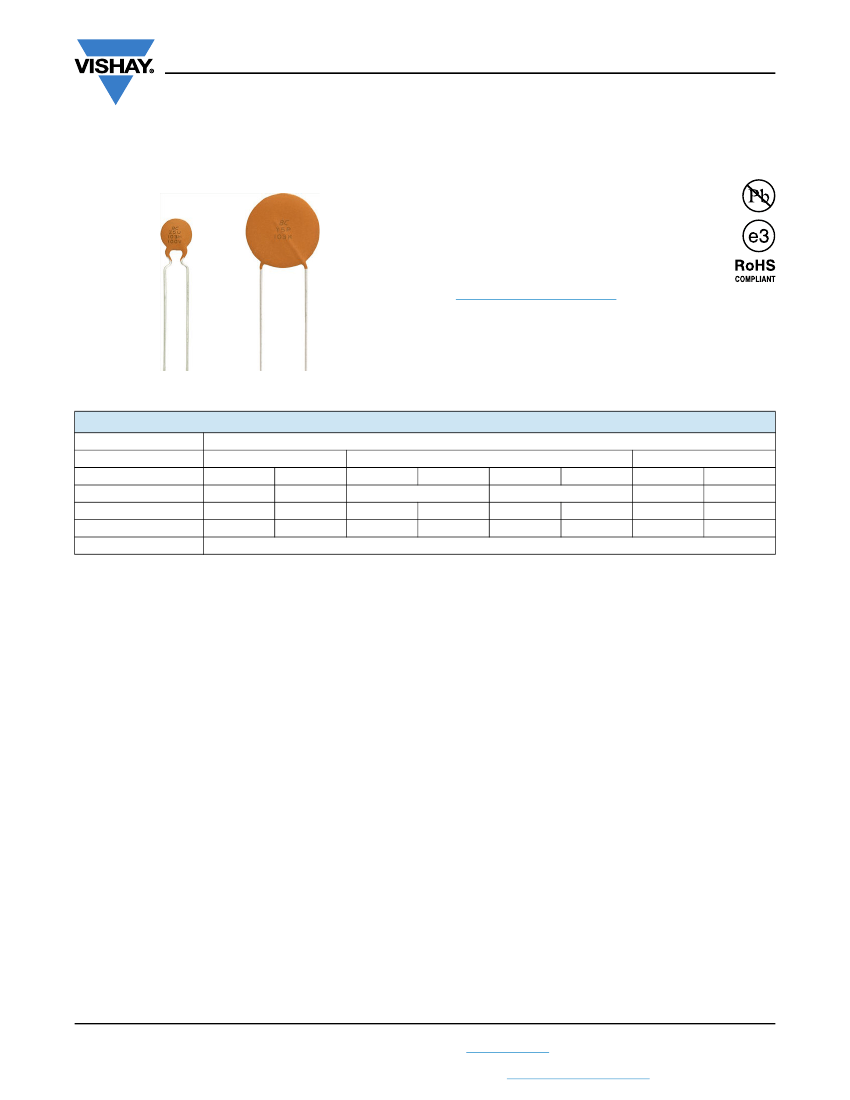

D Series
www.vishay.com
Vishay BCcomponents
Ceramic Singlelayer DC Disc Capacitors for General Purpose
Class 1, Class 2 and Class 3, 50 V
DC
, 100 V
DC
, 500 V
DC
FEATURES
• High capacitance with small size
• High reliability
• Crimp and straight lead styles
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Temperature compensation
• Coupling and decoupling
• Bypassing
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
SL0
50, 100, 500
56
100
1
N750
100, 500
6.8
330
Y5P
100
10 000
Z5U
1000
22 000
Radial
50, 100, 500
100
4700
VALUE
2
X7R
500
100
4700
X5F
Y5V
50, 100, 500
1000
22 000
3
Z5V
50, 100
4700
47 000
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198” and voltage marks.
CAPACITANCE RANGE
6.8 pF to 47 nF
TOLERANCE ON CAPACITANCE
OPERATING TEMPERATURE RANGE
SL0, N750, X7R, X5F: -55 °C to +125 °C
Y5P, Z5U, Z5V, Y5V: -30 °C to +125 °C
± 0.25 pF, ± 2 %, ± 5 %, ± 10 %, ± 20 %, + 80 % / - 20 %
RATED VOLTAGE
50 V
DC
, 100 V
DC
, 500 V
DC
TEMPERATURE CHARACTERISTICS
Class 1: SL0, N750
Class 2: Y5P, Z5U, X7R, X5F
Class 3: Y5V, Z5V
TEST VOLTAGE
250 % of rated voltage
INSULATION RESISTANCE AT RATED VOLTAGE
10 G min.
SECTIONAL SPECIFICATIONS
Climatic category (acc. to EN 60058-1)
Class 1 and 2: 55/125/21
Class 3: 30/85/21
DISSIPATION FACTOR
Class 1
0.1 % max. when C
30 pF
(at 1 MHz; 1 V where C
1000 pF, and at
1 kHz; 1 V where C > 1000 pF)
For C < 30 pF: DF = 100/(400 + 20 x C)
DF = dissipation factor in %;
C = capacitance value in pF
Class 2
Class 3
2.5 % max. (at 1 kHz; 1 V)
5 % max. (at 1 kHz; 1 V)
APPROVALS
EIA 198
IEC 60384-8
IEC 60384-9
Revision: 26-Oct-17
Document Number: 28549
1
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D Series
www.vishay.com
Vishay BCcomponents
LEAD CONFIGURATION
(in millimeters)
D
D
D
D
T
SH
DR
SH
L
SH
θ
*
K
G
F
L
F
G
G
F
L
F
G
L
J
L
K
K
Note
• Lead-spacing 2.5 mm is available for L lead configuration only.
MARKING
Size 20
Size 25
Size 29 and above
TTT
XXX
VVVV
TTT
XXX
VVVV
BC
TTT
XXXt
VVVV
Note
• Refer to specified part for detail marking.
ORDERING CODE INFORMATION
D
1
Product
Type
D series
102
234
Capacitance
(pF)
K
5
Capacitance
Tolerance
25
67
Size
Code
Y5P
8 9 10
T.C.
Code
L
11
Rated
Voltage
6
12
Lead
Diameter
3
13
Packaging /
Lead Length
3 = bulk
T = tape
and reel
U = ammo
J
14
Lead
Style
Please
refer to
relevant
datasheet
5
15
Lead
Spacing
2 = 2.5 mm
5 = 5.0 mm
6 = 6.4 mm
7 = 7.5 mm
R
16
RoHS
Compliant
The first two C = ± 0.25 pF Please
Please
F = 50 V
DC
6 = 0.60 mm
digits are the
G=±2%
refer to
refer to H = 100 V
DC
± 0.05 mm
significant
J=±5%
relevant relevant L = 500 V
DC
figures of
K = ± 10 % datasheet datasheet
capacitance and M = ± 20 %
the last digit is a Z = +80 % /
multiplier as
-20 %
follows:
0=*1
1 = * 10
2 = * 100
3 = * 1000
Revision: 26-Oct-17
Document Number: 28549
2
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D Series
www.vishay.com
ORDERING CODES
DIELECTRIC SL0
(50 V
DC
/ 100 V
DC
)
CAP.
(pF)
56
68
82
100
ORDERING CODE
D560#20SL0F6###R
D680#20SL0F6###R
D820#20SL0F6###R
D101#20SL0F6###R
50 V
DC
DIAMETER
(mm max.)
5
5
5
5
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
ORDERING CODE
D560#20SL0H6###R
D680#20SL0H6###R
D820#20SL0H6###R
D101#20SL0H6###R
100 V
DC
DIAMETER
(mm max.)
5
5
5
5
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
Vishay BCcomponents
DIELECTRIC SL0
(500 V
DC
)
CAP.
(pF)
33
39
47
56
68
82
ORDERING CODE
D330#20SL0L6###R
D390#20SL0L6###R
D470#20SL0L6###R
D560#20SL0L6###R
D680#20SL0L6###R
D820#20SL0L6###R
500 V
DC
DIAMETER
(mm max.)
5
5
5
5
6.5
6.5
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
Notes
• Lead diameter is 0.6 mm
• # 5th digit is capacitance tolerance code: ± 5 % = J; ± 10 % = K
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; J; K (L and J are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5; 6.4 mm = 6 (rated voltage 500 V is not available on 2.5 mm lead-spacing)
DIELECTRIC N750
CAP.
(pF)
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
ORDERING CODE
D689C20U2JH6###R
D829C20U2JH6###R
D100#20U2JH6###R
D120#20U2JH6###R
D150#20U2JH6###R
D180#20U2JH6###R
D220#20U2JH6###R
D270#20U2JH6###R
D330#20U2JH6###R
D390#20U2JH6###R
D470#20U2JH6###R
D560#25U2JH6###R
D680#25U2JH6###R
D820#25U2JH6###R
D101#29U2JH6###R
D121#33U2JH6###R
D151#33U2JH6###R
D181#39U2JH6###R
D221#39U2JH6###R
D271#39U2JH6###R
D331#47U2JH6###R
100 V
DC
DIAMETER
(mm max.)
5
5
5
5
5
5
5
5
5
5
5
6.5
6.5
6.5
7.5
8.5
8.5
10
10
10
12
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
ORDERING CODE
D689C20U2JL6###R
D829C20U2JL6###R
D100#20U2JL6###R
D120#20U2JL6###R
D150#20U2JL6###R
D180#20U2JL6###R
D220#20U2JL6###R
D270#25U2JL6###R
D330#25U2JL6###R
D390#29U2JL6###R
D470#29U2JL6###R
D560#33U2JL6###R
D680#33U2JL6###R
D820#39U2JL6###R
D101#39U2JL6###R
D121#47U2JL6###R
D151#47U2JL6###R
/
/
/
/
500 V
DC
DIAMETER
(mm max.)
5
5
5
5
5
5
5
6.5
6.5
7.5
7.5
8.5
8.5
10
10
12
12
/
/
/
/
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
/
/
/
/
Notes
• Lead diameter is 0.5 mm
• # 5th digit is capacitance tolerance code: ± 2 % = G; ± 5 % = J (which C < 10 pF, the tolerance code is C = ± 0.25 pF)
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; J; K (L and J are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5; 6.4 mm = 6 (rated voltage 500 V is not available on 2.5 mm lead-spacing)
Revision: 26-Oct-17
Document Number: 28549
3
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D Series
www.vishay.com
Vishay BCcomponents
100 V
DC
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
ORDERING CODE
D101#20Y5PH6###R
D151#20Y5PH6###R
D181#20Y5PH6###R
D221#20Y5PH6###R
D331#20Y5PH6###R
D471#20Y5PH6###R
D681#20Y5PH6###R
D102#20Y5PH6###R
D152#25Y5PH6###R
D182#25Y5PH6###R
D222#25Y5PH6###R
D332#29Y5PH6###R
D472#33Y5PH6###R
D682#39Y5PH6###R
D103#43Y5PH6###R
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.5
6.5
6.5
7.5
8.5
10.0
11.0
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
DIELECTRIC Y5P
(50 V
DC
/ 100 V
DC
)
CAP.
(pF)
100
150
180
220
330
470
680
1000
1500
1800
2200
3300
4700
6800
10 000
50 V
DC
ORDERING CODE
D101#20Y5PF6###R
D151#20Y5PF6###R
D181#20Y5PF6###R
D221#20Y5PF6###R
D331#20Y5PF6###R
D471#20Y5PF6###R
D681#20Y5PF6###R
D102#20Y5PF6###R
D152#20Y5PF6###R
D182#25Y5PF6###R
D222#25Y5PF6###R
D332#25Y5PF6###R
D472#29Y5PF6###R
D682#33Y5PF6###R
D103#39Y5PF6###R
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.5
6.5
6.5
7.5
8.5
10.0
DIELECTRIC Y5P
(500 V
DC
)
CAP.
(pF)
100
150
180
220
330
470
680
1000
1500
1800
2200
3300
4700
6800
10 000
500 V
DC
ORDERING CODE
D101#20Y5PL6###R
D151#20Y5PL6###R
D181#20Y5PL6###R
D221#20Y5PL6###R
D331#20Y5PL6###R
D471#20Y5PL6###R
D681#25Y5PL6###R
D102#25Y5PL6###R
D152#29Y5PL6###R
D182#29Y5PL6###R
D222#33Y5PL6###R
D332#39Y5PL6###R
D472#43Y5PL6###R
D682#53Y5PL6###R
D103#69Y5PL6###R
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
5.0
5.0
6.5
6.5
7.5
7.5
8.5
10.0
11.0
13.5
17.5
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
Notes
• Lead diameter is 0.6 mm
• # 5th digit is capacitance tolerance code: ± 10 % = K; ± 20 % = M
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; J; K (L and J are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7 (rated voltage 500 V is not available on 2.5 mm
lead-spacing)
Revision: 26-Oct-17
Document Number: 28549
4
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
D Series
www.vishay.com
Vishay BCcomponents
DIELECTRIC Z5U
(50 V
DC
/ 100 V
DC
)
CAP.
(pF)
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
50 V
DC
ORDERING CODE
D102M20Z5UF6###R
D152M20Z5UF6###R
D222M20Z5UF6###R
D332M20Z5UF6###R
D472M20Z5UF6###R
D682M25Z5UF6###R
D103M29Z5UF6###R
D153M33Z5UF6###R
D223M39Z5UF6###R
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
5.0
8.5
10.0
8.5
10.0
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
ORDERING CODE
D102M20Z5UH6###R
D152M20Z5UH6###R
D222M20Z5UH6###R
D332M20Z5UH6###R
D472M25Z5UH6###R
D682M25Z5UH6###R
D103M29Z5UH6###R
D153M33Z5UH6###R
D223M39Z5UH6###R
100 V
DC
DIAMETER
(mm max.)
5.0
5.0
5.0
5.0
6.5
6.5
7.5
8.5
10.0
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
DIELECTRIC Z5U
(500 V
DC
)
CAP.
(pF)
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
500 V
DC
ORDERING CODE
D102M20Z5UL6###R
D152M25Z5UL6###R
D222M25Z5UL6###R
D332M29Z5UL6###R
D472M33Z5UL6###R
D682M39Z5UL6###R
D103M43Z5UL6###R
D153M53Z5UL6###R
D223M59Z5UL6###R
DIAMETER
(mm max.)
5.0
6.5
6.5
7.5
8.5
10.0
11.0
13.5
15.0
THICKNESS
(mm max.)
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
Notes
• Lead diameter is 0.6 mm
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; J; K (L and J are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5; 6.4 mm = 6; 7.5 mm = 7 (rated voltage 500 V is not available on 2.5 mm
lead-spacing)
Revision: 26-Oct-17
Document Number: 28549
5
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
