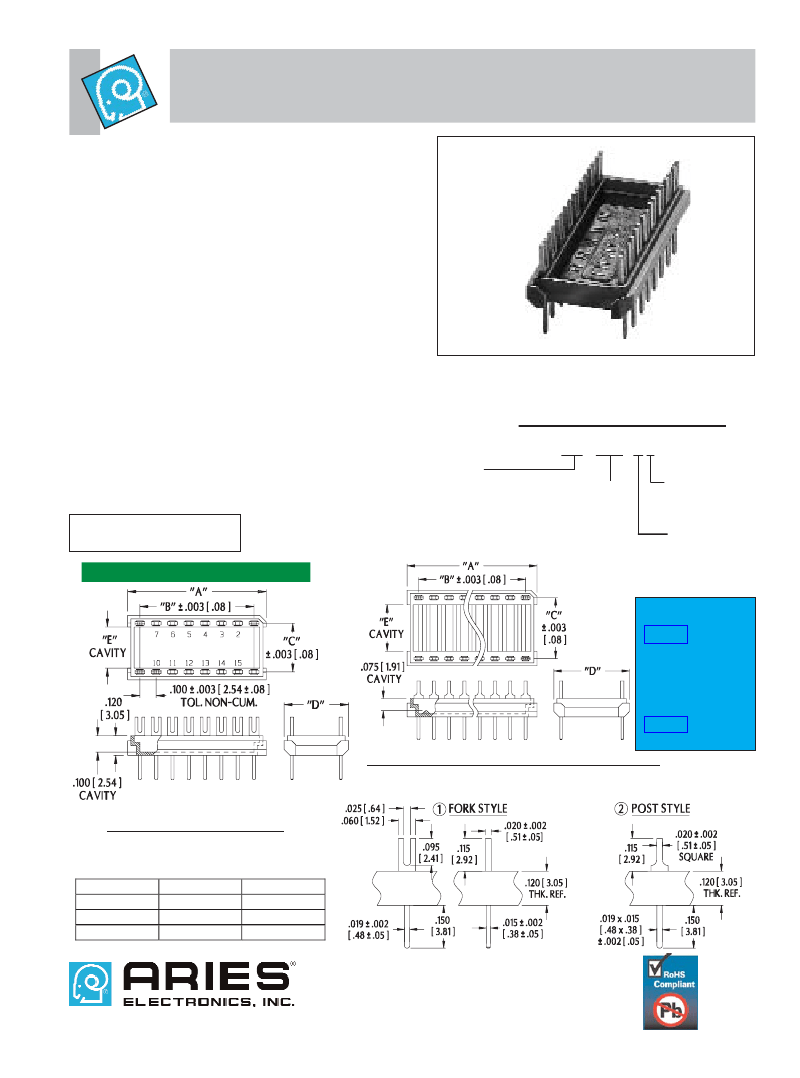

Series 600
DIP Headers with Coined Contacts
FEATURES:
• Aries offers a full line of DIP headers, available with either
coined or screw machine contacts. Consult Data Sheet No.
12035 for screw machine contacts.
• Snap-on, protective covers are available for all sizes shown
below and accommodate .125 [3.18] to .750 [9.05] compo-
nent heights. Consult Data Sheet No. 12033 for protective
covers.
• Body cavity design provides additional clearance for compo-
nent mounting.
SPECIFICATIONS:
• Standard body material is black UL 94V-0 4/6 Nylon.
• Coined contacts are Brass, 1/2 hard.
• Contact plating:
-T = 200u” [5.08μm] min. Matte Tin per ASTM B545-97 over
50u” [1.27μm] min. Nickel per QQ-N-290
Note: Aries specializes in custom design and production. In addition to the
-G = 10u”[.25μm] Gold per MIL-G-45204 over 50u”[1.27μm]
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
min. Nickel per QQ-N-290.
-TL = 200u”[5.08μm]90/10 Tin/Lead per MIL-T-10727 Type I
right to change product specifications without notice.
over 50u” [1.27μm] min. Nickel per QQ-N-290.
ORDERING INFORMATION
• Contact current rating=2 Amps.
XX-600-XX
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
No. of pins:
Plating:
• Fork contact accepts up to .025 [.64] diameter leads.
.300 [7.62] centers: 4 thru 20 Series
0=Tin
MOUNTING CONSIDERATIONS:
.400 [10.16] centers: 22
0TL =Tin/Lead
•Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
.600 [15.24] centers: 24, 28, 40
1=Gold
All tolerances ± .005 [.13]
unless otherwise specified
A
LL DIMENSIONS
:
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
”B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
INCHES
[
MILLIMETERS
]
Pin style:
1=Fork pin
2=Post pin
Consult Data
Sheet No.
12033 for snap-
on protective
covers.
Consult Data
Sheet No.
12035 for screw
machine contacts.
.400 [10.16] AND .600 [15.24] CENTERS BODY
(with ribs)
.300 [7.62] CENTERS BODY
(with numbered pin
positions, no ribs)
Centers “C”
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “D”
.395 [10.03]
.495 [12.57]
.695 [17.65]
Dim. “E”
.252 [6.40]
.352 [8.94]
.552 [14.02]
12032
http://www.arieselec.com • info@arieselec.com
REV.F
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
