Protocol-Independent Wavelength Division
Multiplexing for High Volume Optical
Networking Applications
IE-iMcV-WDM/2 Series
PRODUCT FEATURES
transmitting two wavelengths on one strand of fiber
support 1310 nm and 1550 nm single-mode fiber
associated with product installation, upgrades and maintenance
Wavelength Division Multiplexing (WDM) is a technology that enables
the transmitting of multiple, optical signals on different wavelengths
over one strand of fiber. Suited for installations where fiber is limited
in terms of availability, service providers and enterprise network
managers can easily double their fiber capacity without incurring
the costs associated with installing new fiber. Campus area network
managers can deploy the WDM/2 solution, for example, to combine
voice and data traffic over the same duplex fiber between company
facilities.
ORDERING INFORMATION
MODEL NUMBER
FIBER
FIBER PORTS
iMcV-WDM/2
849-14100
SC
4
WDM/2 Stand Alone Chassis
849-10100
SC
4
speed-independent Wavelength Division Multiplexers which allow two
individual wavelengths to share one fiber pair; Full-Duplex data travels
on 1310 nm and 1550 nm to virtually double the capacity of installed
fiber. Deploy WDM/2 products in pairs so that the host site will
multiplex 1310 nm and 1550 nm onto the fiber and the remote site will
then separate the signals by the wavelength. Available in standalone
and modular versions, the protocol-independent WDM/2 products
enable the transmitting of any protocol and any speed over 1310 nm or
1550 nm single-mode fiber.
Support a variety of protocols; easy installation
As passive, protocol-independent Wavelength Division Multiplexers,
protocols including Ethernet (10/100/ 1000 Mbps), SONET/SDH (OC-3,
OC-12 OC-48), FDDI, ATM, ESCON, T1/E1, E3, DS3, FibreChannel,
and 10G. Installing WDM/2 products is easy— standalone WDM/2
iMediaChassis or MediaChassis/2. There is no configuration required
for either version.
iView: Windows 2000/XP/Vista/Win7
WWW
.
BB
-
ELEC
.
COM
|
Protocol-Independent Wavelength
Division Multiplexing for High Volume
Optical Networking Applications
IE-iMcV-WDM/2 Series
SPECIFICATIONS
TECHNICAL
Doubles the capacity of installed fiber by transmitting two wavelengths on one
strand of fiber
Speed-independent
Protocol-independent; complies with a wide range of communications protocols
including Ethernet (10/100/1000 Mbps), SONET/SDH (OC-3, OC-12 OC-48), FDDI,
ATM, ESCON, T1/E1, E3, DS3 and FibreChannel
Supports GUI-Based iView²
Connectors: SC
Supports Half- and Full-Duplex operation
IMCV-WDM/2
Requires two slots in a chassis; modules are double-wide
Installs in any iMediaChassis or MediaChassis/2
WDM/2 STANDALONE CHASSIS
T
iMcV-WDM/2 module ships from factory in a standalone chassis
MECHANICAL
Shipping Weight iMcV-WDM/2
Shipping Weight WDM/2 Chassis
ENVIRONMENTAL
Operating Temperature
Storage Temperature:
Operating Humidity
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
0.9 lbs (0.34 kg)
1.1 lbs. (0.50 kg)
+32° to +122° F (0° to +50° C)
-13° to +158°F (-25° to +70°C)
5% to 95% (non-condensing)

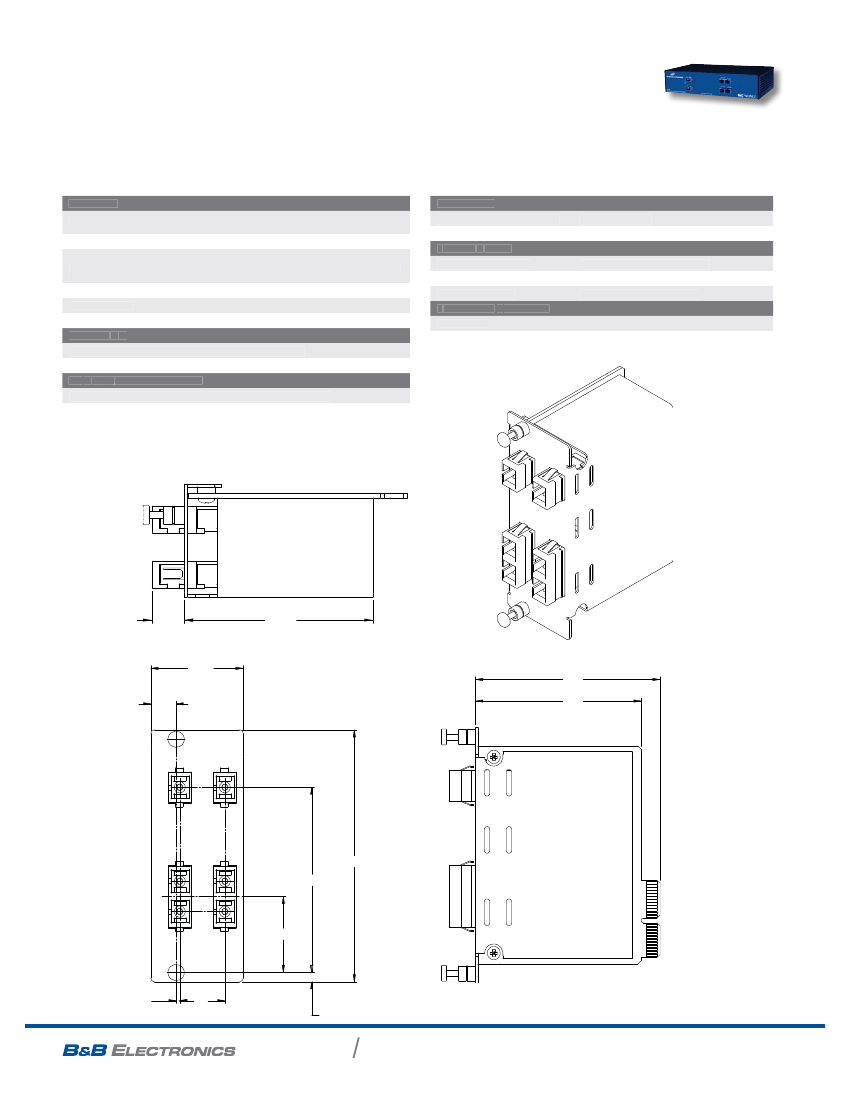

MECHANICAL DIAGRAM
(dimensions in inches)
.44
2X
1.535
.420
2.570
3.03
2.72
4.192
3.083
1.266
.06
.75
.154
